60 L Water-Jacket UV plus 90 °C Sterilization CO2 Incubator, High-End Touchscreen Series
Research-grade laboratory product
|
|||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For model selection, accessory matching, installation-space review, power-supply confirmation or configuration support, contact our technical sales team.
E-MAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||||||||||
|
Supplier: Atomfair
Brand: ATOMFAIR®
|
This incubator requires a dedicated AC 220 V, 50 Hz power supply and an ambient temperature between +5 and +30 °C for stable operation. The unit must remain upright during transport and all internal components must be kept accessible for regular cleaning and inspection.
- Power and Environmental Requirements: Verify that the power supply matches the rated 500 W at AC 220 V, 50 Hz and the ambient temperature is within the specified range of +5 to +30 °C.
- Transport and Handling: Keep the packaged incubator upright at all times and use lifting equipment rated for the unit's weight to prevent mechanical damage.
- Sterilization and UV Safety: Use the 90 °C high-temperature sterilization and UV lamp only with the chamber empty and follow manufacturer safety guidelines to avoid burns or UV exposure.
- Sensor and Chamber Maintenance: Keep the CO2 sensor, shelves, filters, doors, and control interfaces accessible for periodic cleaning and calibration as described in the user manual.
- Alarm and Monitoring Configuration: The alarm system covers power failure, CO2 deviation, door opening, and temperature sensor conditions; ensure these alerts are enabled for unattended operation.
These steps guide the safe installation, transport, accessory selection, and initial setup of the incubator. Follow them to ensure proper operation and avoid damage to the unit or samples.
Required Equipment: Suitable lifting equipment (e.g., pallet jack or forklift)
- Confirm Installation Space and Power Supply
Confirm that the available space accommodates the external dimensions of 534 × 530 × 790 mm and that a dedicated AC 220 V, 50 Hz power outlet is accessible. - Transport the Packed Incubator
Transport the packed incubator in an upright orientation using suitable lifting equipment to prevent internal damage. - Select and Install Optional Accessories
Select and install required optional accessories such as zirconia O2 control, humidity display, or wireless alarm based on the intended culture workflow. - Verify Chamber Accessibility
Verify that all chamber components, including shelves, sensors, filters, doors, test ports, and control interfaces, are accessible for cleaning and routine inspection.
How does the CO2 recovery time of ≤3 minutes to 5% after a 30-second door opening affect experimental reproducibility in time-sensitive cell culture workflows?
The CO2 recovery time is specified as no more than 3 minutes to return to 5% CO2 after a 30-second door opening, which minimizes CO2 concentration drift and supports rapid re-equilibration for sensitive cultures. This performance is achieved via the infrared CO2 sensor and controlled gas injection, ensuring consistent incubation conditions even during routine access. The ±0.1% CO2 control accuracy further maintains the setpoint once recovered, reducing variability in pH-dependent cell behavior.
What O2 concentration range is achievable with the optional zirconia O2 control, and can it be used simultaneously with the infrared CO2 sensor?
The optional zirconia O2 control supports an adjustable range from 1% to 90% O2, enabling hypoxia to hyperoxia studies within the same incubator. The product explicitly states that infrared CO2 sensing and optional O2 control support advanced gas-environment culture workflows, confirming simultaneous operation of both sensors for dual-gas control without interference.
What are the power supply and ambient temperature requirements for stable operation of the 60 L water-jacket CO2 incubator, and how should they be accounted for during installation?
The incubator requires an AC 220 V, 50 Hz power supply with a rated operating power of 500 W, and a working ambient temperature range of +5 to +30 °C. The external dimensions of 534 × 530 × 790 mm (W × D × H) must be verified for bench clearance and airflow. The instruction states to keep the unit upright during transport and provide accessible space for chamber, sensors, and filters, which is critical for maintaining temperature uniformity (±0.3 °C at 37 °C) and preventing condensation on the heated outer door.
This 60 L water-jacket CO2 incubator provides a large touchscreen interface with trend curves and record review, infrared CO2 sensing with ≤3-minute recovery to 5% after 30-second door opening, and optional 90°C sterilization. It is designed for advanced cell culture requiring precise temperature and CO2 control, with optional O2 monitoring for hypoxic or hyperoxic conditions.
Positive

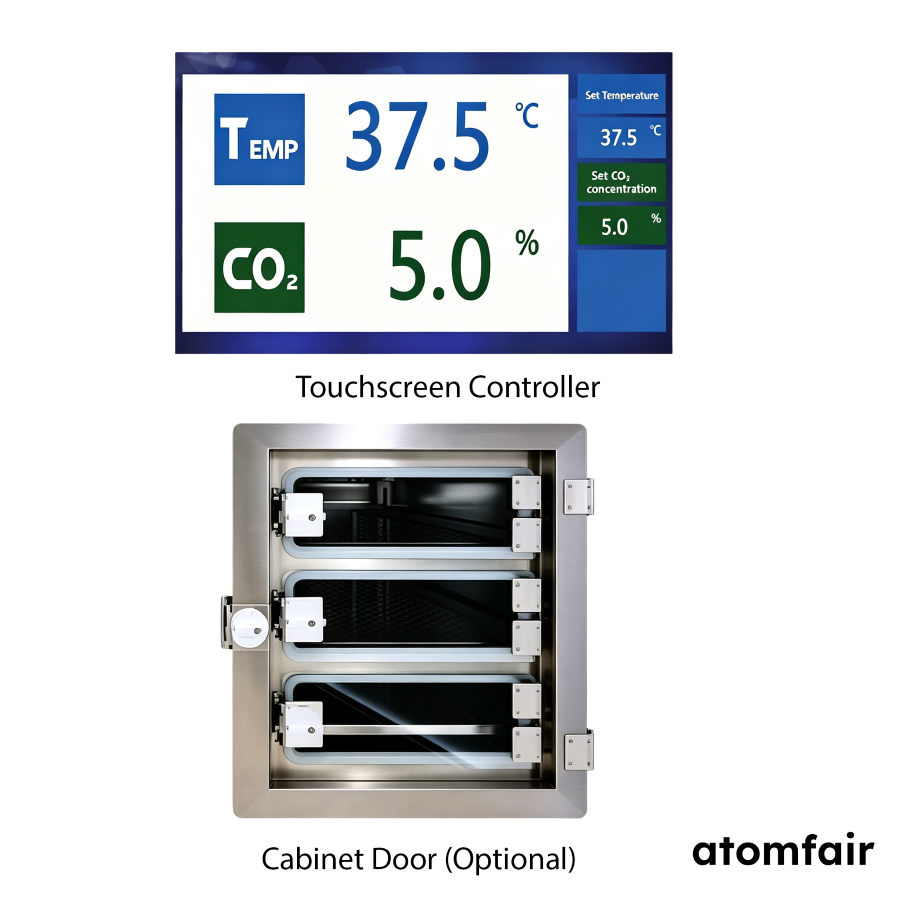

- Touchscreen with trend and record review: The large touchscreen controller supports real-time curve display, alarm review, and 72-hour running record lookup, enabling traceable monitoring of incubation conditions.
- Rapid CO2 recovery after door opening: Infrared CO2 sensor with ≤3-minute recovery to 5% after a 30-second door opening minimizes gas environment disruption, improving reproducibility in cell culture workflows.
Trade-offs
- Requires AC 220V 50Hz power supply: The incubator operates on AC 220V, 50 Hz power; laboratories with 110V supply or 60 Hz mains will need a voltage converter or dedicated circuit, adding installation complexity.
- Limited ambient temperature range: Operation is specified for an ambient temperature of +5 to +30 °C; placement in unconditioned or hot rooms may compromise temperature control and chamber stability.
