Product Overview
|

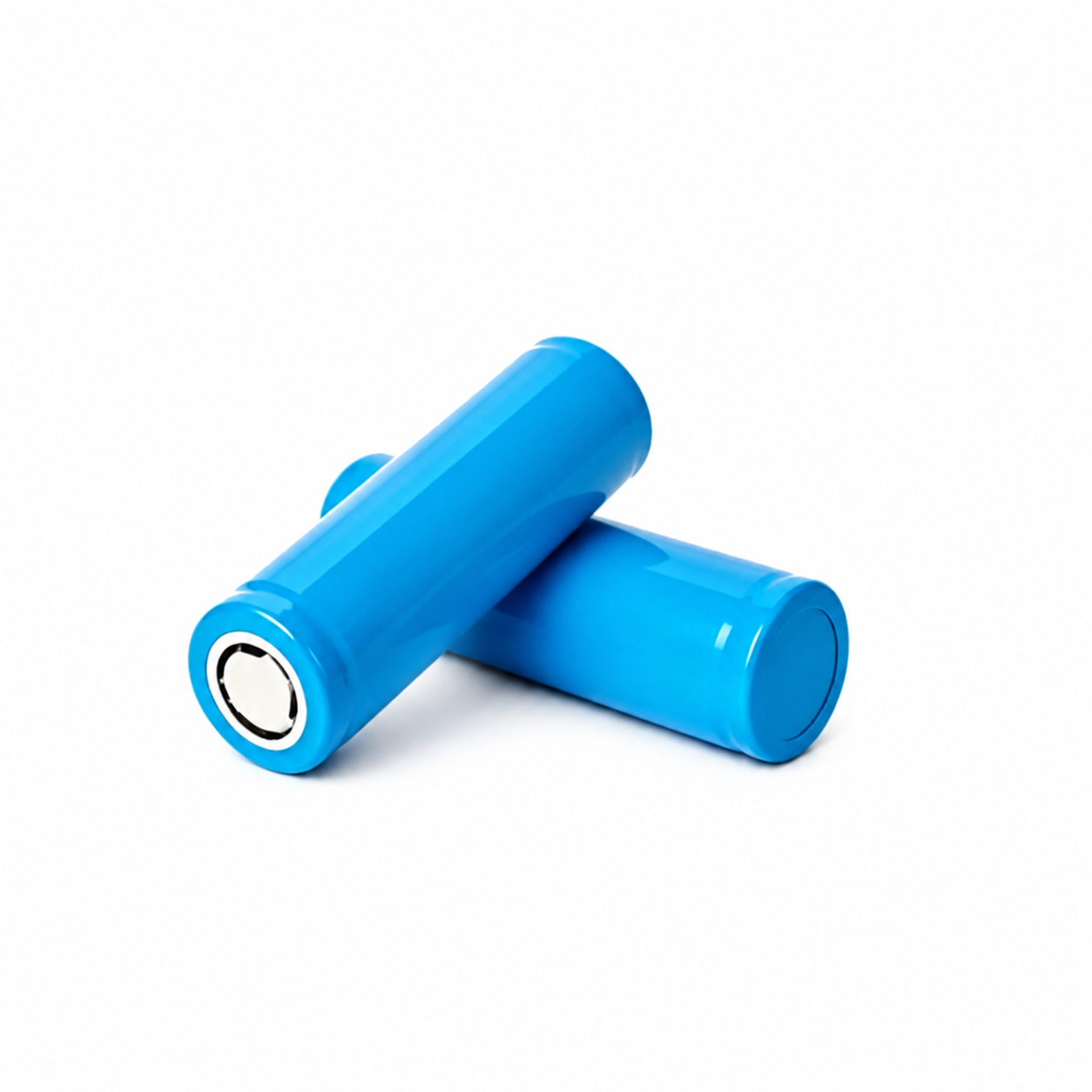

| The ATOMFAIR® 26650 Low-Temperature LFP (LiFePO4) cylindrical cell is designed for extreme cold-weather energy storage. With a nominal capacity of 3000mAh and the capability to charge at temperatures as low as -30°C and discharge down to -50°C without external heating, this cell eliminates the need for battery warmers in harsh winter environments. Offering high power output (10C continuous discharge), military-grade reliability, and competitive pricing, it is the ideal solution for off-grid solar storage, EV auxiliary batteries, cold-region telecom backup, polar research, and cold-chain logistics. |
Technical Specifications
|
| PARAMETER |
VALUE |
| General Parameters |
| Nominal Capacity (0.5C) |
3000 mAh |
| Minimum Capacity (0.5C) |
3000 mAh |
| Nominal Voltage |
3.2 V |
| Energy Density |
113 Wh/kg |
| Internal Resistance |
≤9 mΩ |
| Weight |
≈85 g |
| Cycle Life (80% DOD, 25°C) |
2000 cycles |
| Charge Parameters |
| Max. Charge Voltage |
3.65 ± 0.03 V |
| Standard Charge Current |
0.5C |
| Max. Charge Current |
3.0C @ T > 0°C; 0.5C @ T ≤ 0°C; 0.2C @ T ≤ -20°C |
| Discharge Parameters |
| Min. Discharge Voltage |
2.00 V @ T > -20°C; 1.50 V @ T ≤ -20°C |
| Standard Discharge Current |
1.0C |
| Max. Continuous Discharge Current |
10C @ T > -20°C; 7.0C @ T ≤ -20°C |
| Discharge Performance |
>90% @ -40°C to 1.5V; >90% @ -20°C to 2.0V; >98% @ 60°C to 2.0V |
| Temperature Ranges |
| Charge Temperature |
-30°C to 60°C |
| Discharge Temperature |
-50°C to 60°C |
| Manufacturing Compliance: Fully traceable production under ISO 9001:2025 and IATF 16949 standards. Custom form factors or electrode formulations available upon request. |
|
Key Features & Advantages
|
- Direct Charge & Discharge at Extreme Low Temperatures: No pre-heating required — capable of charging at -30°C and discharging at -50°C.
- High-Power Low-Temperature Output: Supports 10C continuous discharge below -20°C with >90% efficiency.
- Fast Charging above 0°C: 3C rapid charging capability for reduced downtime in warmer conditions.
- Military-Grade Reliability at Civilian Prices: Extreme durability and robust cycle life (2000 cycles @ 80% DOD) without premium cost.
|
|
APPLICATION SCOPE: Off-grid solar storage in arctic regions, EV auxiliary batteries, telecom backup in extreme climates, polar research equipment, cold-chain logistics, and portable power for winter sports.
PACKAGING: Anti-static plastic trays (50 cells per tray, 200 cells per master carton). Insulated terminal covers included for safe transport.
IMPORTANT NOTICE: For charging at -30°C, use the recommended CC-CV profile with a reduced charge current (≤0.2C). The cell will not accept charge below -30°C. Always pair with a low-temperature BMS that enables charging only when cell temperature is within safe limits.
|
Frequently Asked Technical Questions
|
Can the AF26650LFP02 be charged at -30°C without heating?
Yes, the cell is specifically engineered for direct charging at -30°C using a reduced current (0.2C). No external heater is required, making it ideal for remote off-grid systems in polar regions.
What is the expected cycle life at -20°C?
At -20°C with 0.5C charge/discharge, cycle life is reduced by approximately 15% compared to 25°C, still exceeding 1700 cycles to 80% SOH. For maximum longevity, keep the battery above 0°C if possible.
Is this cell compatible with standard 26650 battery holders?
Yes, the AF26650LFP02 follows the standard 26mm diameter and 65mm height format, making it a drop-in replacement for most 26650 holders and pack configurations. Always verify terminal polarity and insulation.
What safety certifications are available?
The cell complies with UL 1642, IEC 62133-2:2021, UN38.3, and CE. Batch-level test reports including nail penetration, overcharge, and thermal abuse are available upon request.
Can I parallel multiple cells for higher capacity?
Yes, parallel connection is allowed. Ensure cells are matched within 5% in voltage and internal resistance before paralleling. Use a common busbar and avoid mixing cells from different production batches.
|
|
