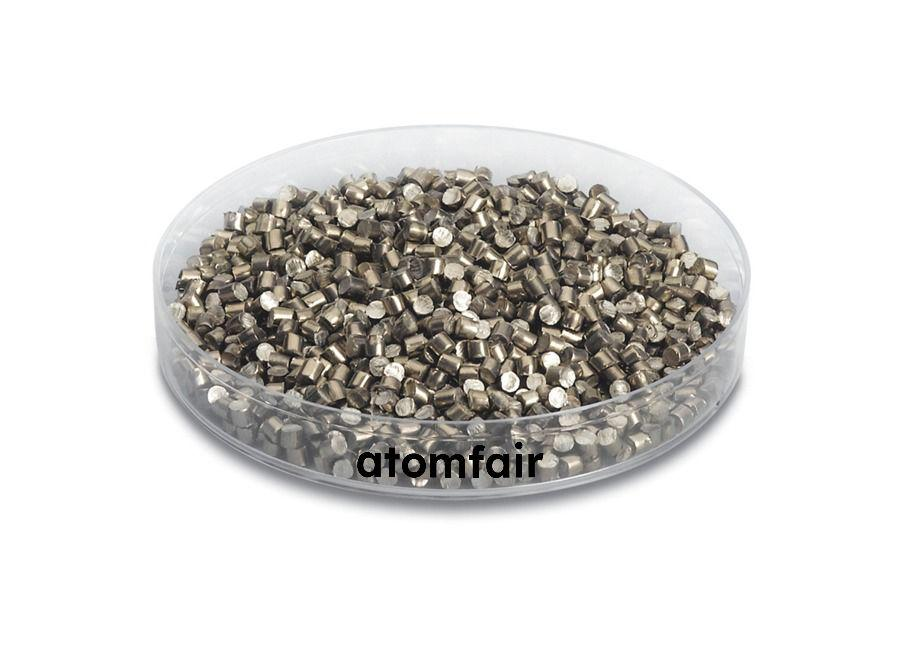

Zirconium (Zr) Evaporation Material, Pellets, 99.9%, 3-6 mm
Product Type: Pure Metal Evaporation Material
Research-grade laboratory product
|
|||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For material selection, deposition-source matching, pack-size confirmation or quotation support, contact our technical sales team.
INQUIRY: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
This zirconium evaporation material requires e-beam deposition using a water-cooled copper hearth with compatible liners. The pellets with 3-6 mm diameter must be loaded into the source prior to vacuum processing.
- Deposition Source Compatibility: The material must be evaporated using an e-beam source with a water-cooled copper hearth and one of the following liners: graphite, Al2O3, BN, or Ta.
- Pellet Size Constraint: The pellets are 3-6 mm in diameter, which sets the loading geometry and feeder requirements for the deposition source.
- Purity Handling: The 99.9% purity grade requires clean handling to avoid contamination during loading and processing.
- Melting Point Consideration: The melting point of 1852°C influences the e-beam power settings and requires appropriate thermal management.
- Z-Ratio Factor: The Z-ratio of 0.6 affects the deposition rate monitoring and calibration for film thickness control.
Why is e-beam evaporation preferred for Zirconium pellets with a melting point of 1,852°C and Z-ratio of 0.6?
E-beam evaporation is preferred because it can achieve the high temperatures required to melt Zirconium (1,852°C melting point) while the Z-ratio of 0.6 is critical for accurate deposition rate monitoring via quartz crystal microbalance, ensuring precise film thickness control in vacuum thin-film deposition.
What liner materials are compatible with the e-beam evaporation of Zirconium pellets?
The product is compatible with graphite, Al2O3, BN, and Ta liners when used in a water-cooled copper e-beam hearth. These materials withstand the high melting point of Zirconium (1,852°C) and minimize contamination during deposition.
Why is the pellet size specified as 3–6 mm for Zirconium evaporation material?
The 3–6 mm pellet size is specified to ensure consistent source loading and controlled evaporation behavior in e-beam or thermal evaporation systems. This size range supports reliable feeding and uniform surface area for reproducible thin-film deposition.
Zirconium (Zr) evaporation pellets (99.9% purity, 3-6 mm) are optimized for e-beam evaporation in high-vacuum thin-film deposition, with a melting point of 1852°C and density of 6.49 g/cm³, requiring compatible hardware and sufficient power for reliable evaporation.
Positive
- High Purity and Defined Form: 99.9% purity and pellet form (3-6 mm) provide consistent source loading and predictable evaporation behavior for thin-film deposition.
- Compatible E-Beam Evaporation Source: Designed for water-cooled copper e-beam hearths with graphite/Al2O3/BN/Ta liners, ensuring reliable thermal contact and process stability.
Trade-offs
- High Melting Point Requires High Power: With a melting point of 1852°C, the material demands a suitably powerful e-beam source and effective thermal management to achieve stable evaporation rates.
- Minimum Order Quantity 100g: The smallest available pack size is 100g, which may be excessive for small-scale or exploratory experiments, limiting procurement flexibility.
