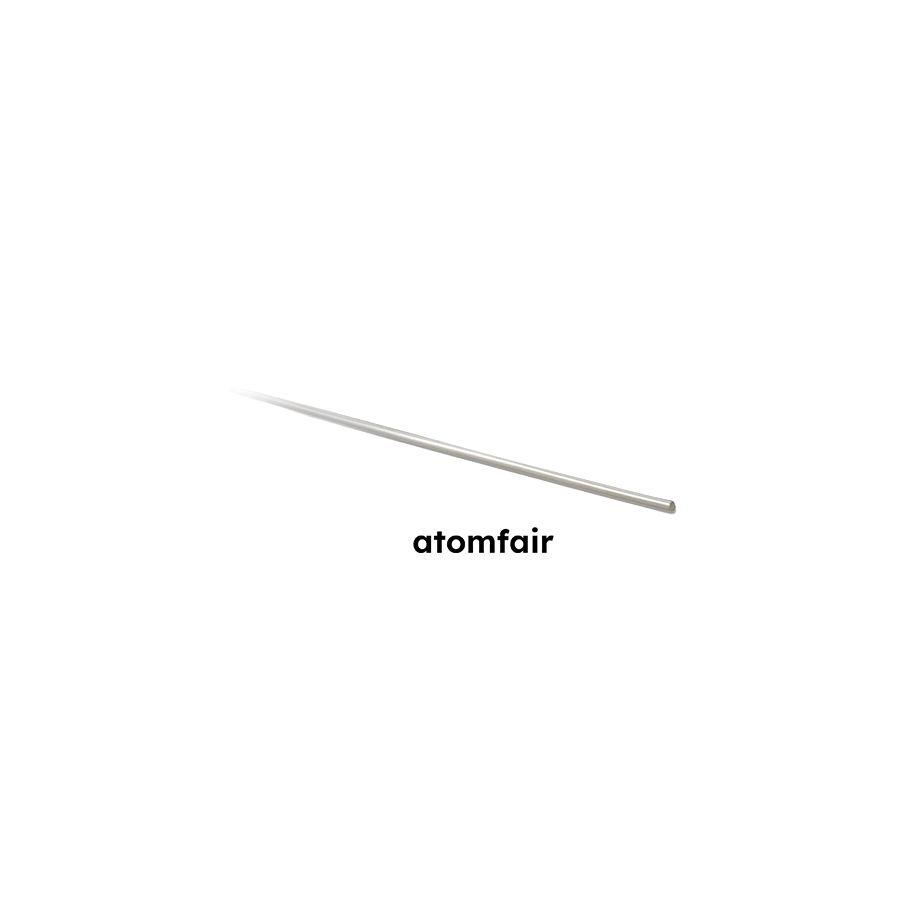

Aluminium (Al) Evaporation Material, Wire, 99.99%, Dia. 2.0 mm
Product Type: Pure Metal Evaporation Material
Research-grade laboratory product
|
|||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For material selection, deposition-source matching, pack-size confirmation or quotation support, contact our technical sales team.
INQUIRY: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
This material must be processed in thermal/resistive evaporation systems using compatible tungsten, molybdenum, or tantalum source components. The evaporation parameters must be adjusted to match the material's melting point of 660°C and Z-ratio of 1.08 for controlled film deposition.
- Evaporation Source Compatibility: Confirm that the evaporation source is a W/Mo/Ta filament, basket, coil, or boat designed for thermal/resistive evaporation before loading the material.
- Process Parameter Matching: Set evaporation power and rate to accommodate the material's melting point of 660°C and Z-ratio of 1.08 to achieve desired film properties.
- Pre-Use Verification: Verify the model, purity, form, size, pack size, and deposition-source compatibility before initiating the evaporation run.
How does the 99.99% purity of this Aluminium evaporation wire influence thin-film quality and deposition consistency?
The 99.99% purity minimizes volatile impurities and oxide content, reducing spitting and film defects during thermal evaporation. The wire form and 2.0 mm diameter are designed for consistent feeding in W/Mo/Ta filament, basket, coil, or boat sources, as specified in the product description.
Which evaporation source materials are compatible with this Aluminium wire?
This Aluminium wire is designed for thermal/resistive evaporation using tungsten (W), molybdenum (Mo), or tantalum (Ta) filaments, baskets, coils, or boats. The product specification explicitly lists these source materials as compatible, ensuring proper wetting and evaporation characteristics.
What is the Z-ratio of 1.08 for this Aluminium evaporation material and why is it important?
The Z-ratio of 1.08 is a material-specific parameter used to calibrate quartz crystal microbalance (QCM) sensors for accurate film thickness monitoring during evaporation. This value is provided in the product specifications to enable precise deposition rate control.
The Aluminium (Al) Evaporation Material, Wire, 99.99%, Dia. 2.0 mm provides high-purity aluminum for thermal resistive evaporation, with a wire form factor that facilitates loading into common W/Mo/Ta sources. The low melting point (660°C) and Z-ratio of 1.08 require careful temperature control and quartz crystal microbalance calibration for consistent film thickness.
Positive
- High Purity (99.99% Al): Minimizes contamination in thin-film deposition, ensuring consistent film properties for sensitive applications.
- Wire Form with 2.0 mm Diameter: Facilitates controlled loading into thermal evaporation sources (W/Mo/Ta filaments, baskets, coils, or boats) and supports uniform evaporation rates.
Trade-offs
- Low Melting Point (660°C): Requires precise temperature control to avoid excessive evaporation rates and potential spitting or source damage.
- Z-Ratio of 1.08: Demands correct calibration of quartz crystal microbalance monitoring systems to maintain film thickness accuracy.
