Water-Jacket CO2 Incubator 240 L, 1000 W High-End ATOMFAIR®
Water-Jacket CO2 Incubator 240 L, 1000 W High-End ATOMFAIR® - Image 2

Water-Jacket CO2 Incubator 240 L, 1000 W High-End ATOMFAIR®

$9,700.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

240 L water-jacket CO2 incubator with 1000 W power, 0–20% CO2 control, ±0.1% accuracy, 3 shelves, touchscreen records and 37 °C stability. Order now.

SKU: AF-LE-E-RHRW-0240-24RT
Category:
Brands:

240 L Water-Jacket Standard Sterilization CO2 Incubator, High-End Touchscreen Series
Research-grade laboratory product
Product Overview

240 L Water-Jacket Standard Sterilization CO2 Incubator, High-End Touchscreen Series is designed for advanced cell culture, CO2-controlled incubation, optional O2-managed cultivation, and traceable incubation workflows. Touchscreen trend charts, CO2 control with optional O2 monitoring, and sterilization variants for advanced culture workflows. The configuration provides RT + 3 to 55 °C, 1000 W rated power, a working chamber of 600 × 520 × 780 mm (W × D × H), and external dimensions of 754 × 760 × 1020 mm (W × D × H).

The control and chamber design support practical laboratory operation: Large touchscreen interface with curve display and record review. laboratory chamber construction The model includes 3 shelves.

The product supports repeatable incubation workflows through the family-specific control, airflow, sterilization, monitoring and alarm functions shown in the technical specifications. Available optional functions include Zirconia O2 control; humidity display; wireless alarm; account permissions; external temperature and CO2 monitoring; automatic cylinder switching.

This equipment is suited to laboratories that need advanced cell culture, CO2-controlled incubation, optional O2-managed cultivation, and traceable incubation workflows, with installation, power supply, chamber access and selected configuration reviewed before use.
Technical Specifications
Parameter Specification / Available Values
Atomfair Model AF-CO2H-240W
Product Family CO2 Incubator, High-End Touchscreen Series
Configuration 240 L Water-Jacket Standard Sterilization
Rated Operating Power 1000 W
Working Chamber Size 600 × 520 × 780 mm (W × D × H)
Overall Dimensions 754 × 760 × 1020 mm (W × D × H)
Shelf Configuration 3 shelves
Power Supply AC 220 V, 50 Hz
Temperature Control Range RT + 3 to 55 °C
Working Ambient Temperature +5 to +30 °C
Temperature Uniformity ±0.3 °C at 37 °C
Temperature Stability ±0.1 °C
CO2 Control Range 0 to 20%
CO2 Control Accuracy ±0.1% with infrared sensor
CO2 Recovery Time No more than 3 minutes to recover to 5% after a 30-second door opening
O2 Option Optional zirconia O2 control from 1% to 90%
Relative Humidity Natural evaporation, 90% or higher, with optional humidity display

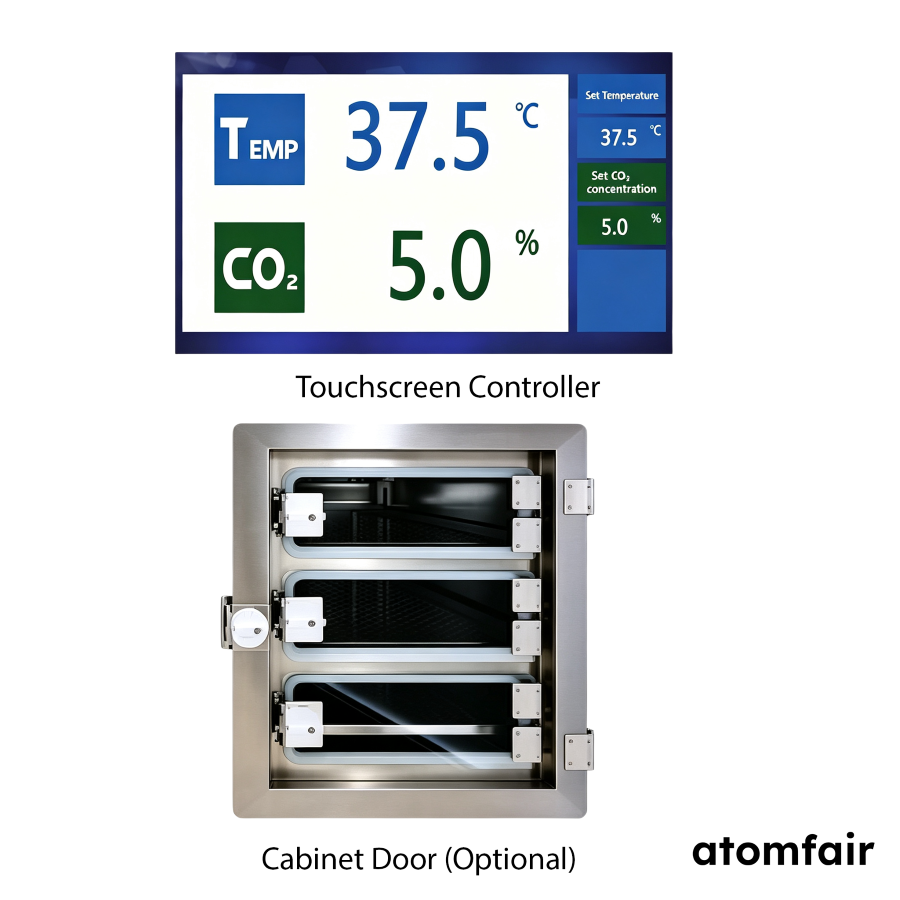

Controller Large touchscreen interface with curve display and record review
Optional Accessories and Functions Zirconia O2 control; humidity display; wireless alarm; account permissions; external temperature and CO2 monitoring; automatic cylinder switching
Performance Features
  • The touchscreen controller supports trend curves, alarm review, and 72-hour running record lookup according to the product design. This makes real-time parameter review and routine operation easier in advanced cell culture, CO2-controlled incubation, optional O2-managed cultivation, and traceable incubation workflows.
  • Infrared CO2 sensing and optional O2 control support advanced gas-environment culture workflows. This allows the configuration to match documentation, communication and monitoring needs in advanced cell culture, CO2-controlled incubation, optional O2-managed cultivation, and traceable incubation workflows.
  • RHP models use 90 °C high-temperature and high-humidity sterilization, while selected RWP(90) models add UV and 90 °C sterilization support. This supports chamber hygiene and contamination-control routines for advanced cell culture, CO2-controlled incubation, optional O2-managed cultivation, and traceable incubation workflows.
  • An environmental temperature monitoring system and heated outer door support stable chamber control and reduced condensation. This supports repeated cleaning, sample organization and dependable laboratory maintenance.
  • Optional wireless alarm, account permissions, external temperature and CO2 monitoring, and automatic cylinder switching are listed. This helps operators identify abnormal conditions during unattended or extended advanced cell culture, CO2-controlled incubation, optional O2-managed cultivation, and traceable incubation workflows.
  • Alarm coverage includes power failure, CO2 deviation, door opening, and multiple temperature sensor conditions. This helps operators identify abnormal conditions during unattended or extended advanced cell culture, CO2-controlled incubation, optional O2-managed cultivation, and traceable incubation workflows.
APPLICATION SCOPE: Suitable for advanced cell culture, CO2-controlled incubation, optional O2-managed cultivation, and traceable incubation workflows in universities, research institutes, quality-control laboratories and other scientific workflows where controlled incubation conditions are required.
HANDLING: Before installation, confirm the available space against the 754 × 760 × 1020 mm (W × D × H) external dimensions and provide the required power supply shown in the technical specifications. Keep the chamber, sensors, shelves, filters, doors, test ports and control interfaces accessible for cleaning, inspection and operation. During transport, every incubator is protected with reinforced packaging to reduce movement and impact risk; keep the packed unit upright and use suitable lifting equipment.
IMPORTANT NOTICE: Select optional accessories and functions according to the required workflow: Zirconia O2 control; humidity display; wireless alarm; account permissions; external temperature and CO2 monitoring; automatic cylinder switching. Any displayed amount refers to the incubator body only and does not include freight. Freight is quoted separately; please contact us for shipping confirmation.
LABORATORY PROCUREMENT SUPPORT
For model selection, accessory matching, installation-space review, power-supply confirmation or configuration support, contact our technical sales team.
E-MAIL: inquiry@atomfair.com
Supplier: Atomfair
Brand: ATOMFAIR®

Manufacturer: Atomfair LLC

Brand: ATOMFAIR®

This incubator requires a stable ambient environment of +5 to +30 °C and a dedicated AC 220 V, 50 Hz power supply rated at 1000 W. The chamber must be maintained with accessible interior components to ensure sensor accuracy and contamination control.

  • Ambient Temperature Range: Operate the incubator within the ambient temperature range of +5 to +30 °C to ensure temperature control stability.
  • Power Supply Requirement: Connect the incubator to a power supply of AC 220 V, 50 Hz with a rated capacity of 1000 W.
  • CO2 Recovery Performance: Confirm that the CO2 concentration recovers to 5% within 3 minutes after a 30-second door opening to maintain incubation conditions.
  • Sterilization Cycle: Use the 90 °C high-temperature and high-humidity sterilization cycle for chamber decontamination.
  • Chamber Accessibility: Keep the chamber, sensors, shelves, filters, doors, test ports, and control interfaces accessible for cleaning and inspection.

This incubator requires careful site preparation and transport handling to ensure proper operation. Follow these steps to install the unit and prepare the chamber for use.

Required Equipment: Lifting equipment

  1. Confirm Installation Space and Power Supply
    Confirm that the installation space accommodates the 754 × 760 × 1020 mm external dimensions and that the power supply matches the AC 220 V, 50 Hz specification.
  2. Transport and Unpack the Incubator
    Keep the packed incubator upright during transport and use suitable lifting equipment to move the unit to the installation site.
  3. Prepare the Chamber for Operation
    Ensure the chamber, sensors, shelves, filters, doors, test ports, and control interfaces are accessible for cleaning and inspection before starting operation.

What is the CO2 recovery time after a door opening, and how does it maintain stable culture conditions?

The CO2 level recovers to 5% within 3 minutes after a 30-second door opening, verified by the infrared sensor with ±0.1% accuracy. This rapid recovery, combined with temperature uniformity of ±0.3°C at 37°C and stability of ±0.1°C, supports consistent cell culture environments.

What power supply and ambient temperature conditions are required for installation?

The incubator requires AC 220V, 50Hz power supply and an ambient temperature range of +5 to +30°C. The temperature control range is RT+3 to 55°C, with a rated power of 1000 W.

What alarm and monitoring features are available for unattended operation?

The incubator includes alarms for power failure, CO2 deviation, door opening, and multiple temperature sensor conditions. Optional features include wireless alarm, account permissions, external temperature and CO2 monitoring, and automatic cylinder switching for enhanced unattended operation.

The 240 L water-jacket CO2 incubator delivers ±0.3 °C temperature uniformity at 37 °C and ≤3 min CO2 recovery after a 30-second door opening, supporting reproducible cell culture conditions. Its standard sterilization, passive humidity via natural evaporation, and optional O2 control require careful workflow planning to match application needs.

Positive

  • Rapid CO2 recovery after door opening: CO2 concentration recovers to 5% within 3 minutes after a 30-second door opening, minimizing environmental disruption during routine sample access.
  • Tight temperature uniformity and stability: Temperature uniformity of ±0.3 °C at 37 °C and stability of ±0.1 °C ensure consistent thermal conditions for sensitive cell culture workflows.

Trade-offs

  • Narrow ambient operating temperature range: The incubator requires a working ambient temperature of +5 to +30 °C, limiting placement in unconditioned or hot laboratory environments.
  • Passive humidity without active control: Relative humidity is achieved via natural evaporation (≥90% RH) and is not actively controlled or displayed unless the optional humidity display module is purchased.
