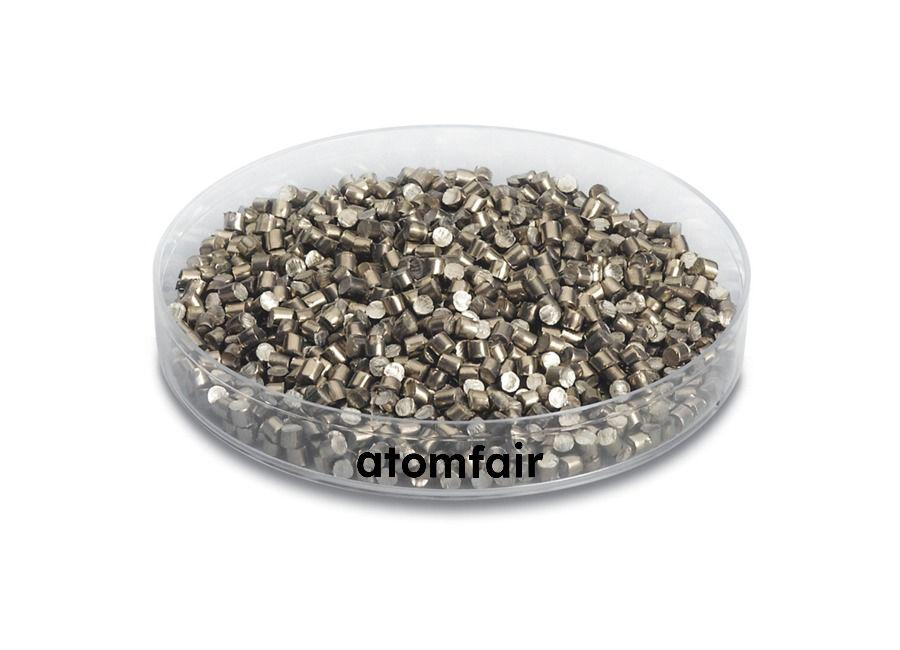

Titanium (Ti) Evaporation Material, Pellets, 99.99%, 1-3 mm
Product Type: Pure Metal Evaporation Material
Research-grade laboratory product
|
|||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For material selection, deposition-source matching, pack-size confirmation or quotation support, contact our technical sales team.
INQUIRY: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
Titanium (Ti) evaporation pellets require e-beam evaporation with a water-cooled copper hearth and compatible liner materials. The pellet size and deposition source geometry must be confirmed prior to use to ensure proper loading and film quality.
- Deposition Source Compatibility: The evaporation material is compatible with a water-cooled copper e-beam hearth and graphite, Al2O3, BN, or Ta liners.
- Evaporation Method Preference: E-beam evaporation is the preferred method for depositing this titanium material.
- Pellet Size and Source Geometry: The 1–3 mm pellet size must be verified against the deposition source geometry and loading mechanism before use.
- Process Matching: The material's melting point, density, and Z-ratio must be matched to the specific evaporation source hardware and film requirements.
How does the 1-3 mm pellet size of titanium evaporation material affect source loading and evaporation process in e-beam systems?
The 1-3 mm pellet size is specified to support source loading and evaporation review in e-beam deposition systems. The product is designed for use with a water-cooled copper e-beam hearth and compatible liners such as graphite, Al2O3, BN, or Ta, as stated in the technical specifications.
What liner materials are compatible with titanium evaporation, and why is liner selection important for maintaining film purity?
The titanium evaporation material is compatible with graphite, Al2O3, BN, or Ta liners when used with a water-cooled copper e-beam hearth. Liner selection is critical to avoid contamination and ensure proper thermal management, given titanium's melting point of 1,660°C and density of 4.5 g/cm³.
Why is a water-cooled copper e-beam hearth recommended for titanium evaporation, and how does it relate to the material's melting point?
A water-cooled copper e-beam hearth is recommended to manage the high melting point of titanium (1,660°C) and prevent thermal damage to the system. This configuration ensures stable evaporation and is noted in the product specifications as the preferred evaporation source.
This Titanium (Ti) evaporation material (99.99%, 1-3 mm pellets) offers well-defined purity and physical form for e-beam deposition, with provided melting point, density, and Z-ratio enabling precise process matching, but requires compatible water-cooled copper hearth hardware and adequate e-beam power.
Positive
- High Purity and Defined Pellet Form: 99.99% purity with 1-3 mm pellet size ensures consistent evaporation behavior and minimizes contamination in thin-film deposition.
- Detailed Physical Properties for Process Control: Melting point (1660°C), density (4.5 g/cm³), and Z-ratio (0.628) are provided, allowing accurate tuning of e-beam evaporation parameters.
Trade-offs
- Evaporation Source Compatibility Required: Optimized for water-cooled copper e-beam hearth with compatible liners (graphite, Al2O3, BN, Ta); not all deposition systems may be directly compatible without hardware verification.
- High Melting Point Demands Robust E-Beam Power: The 1660°C melting point necessitates a high-power e-beam source, which may limit use in systems with lower power capabilities or require extended deposition times.
