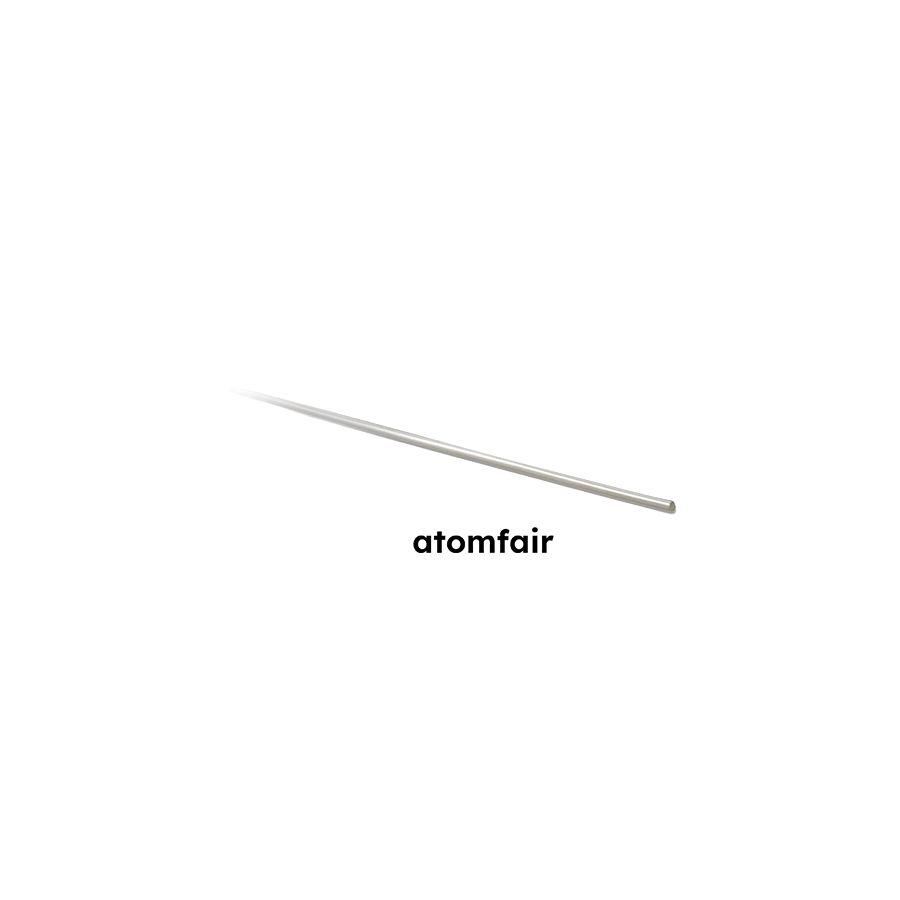

Tin (Sn) Evaporation Material, Wire, 99.99%, Dia. 1.0 mm
Product Type: Pure Metal Evaporation Material
Research-grade laboratory product
|
|||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For material selection, deposition-source matching, pack-size confirmation or quotation support, contact our technical sales team.
INQUIRY: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
This evaporation material requires compatibility with thermal/resistive evaporation sources constructed from tungsten, molybdenum, or tantalum. The material's melting point and Z-ratio must be matched to the deposition source hardware and target film requirements.
- Deposition Source Compatibility: Thermal/resistive evaporation using W/Mo/Ta filament, basket, coil, or boat is required for this material.
- Process Parameter Matching: The melting point of 232 °C and Z-ratio of 0.724 must be accounted for in evaporation process control.
- Material Behavior Matching: The evaporation source hardware and process route must be matched to the material's behavior and film requirements.
How does the 99.99% purity of this tin wire influence thin film quality in vacuum deposition?
The 99.99% purity specification ensures low impurity content, which is critical for achieving consistent film resistivity, work function, and optical properties in thin-film applications. The product description explicitly states that this purity grade allows comparison between standard, high-purity, and RFQ-controlled grades, enabling researchers to select the appropriate level for their deposition process.
What deposition source geometries are compatible with this 1.0 mm diameter tin wire?
This tin wire is designed for thermal/resistive evaporation using tungsten, molybdenum, or tantalum filaments, baskets, coils, or boats. The product description emphasizes that buyers must confirm deposition source geometry before ordering, as the 1.0 mm wire diameter must be matched to the specific source to ensure uniform feeding and evaporation.
Why is the Z-ratio of 0.724 important for tin evaporation processes?
The Z-ratio (0.724) is a material-specific factor used to calibrate quartz crystal microbalance (QCM) sensors for accurate film thickness monitoring during deposition. This value, provided in the technical specifications, allows researchers to correctly set process parameters for tin evaporation, ensuring precise control over deposited film thickness.
This 99.99% pure tin wire with 1.0 mm diameter is designed for thermal evaporation in W/Mo/Ta sources, but requires careful matching of deposition geometry and process parameters to the material's melting point and film requirements.
Positive
- High purity tin wire for thermal evaporation: 99.99% purity with defined wire diameter of 1.0 mm ensures consistent deposition conditions and minimal contamination in thin-film applications.
- Compatible with multiple source types: Suitable for thermal/resistive evaporation using W, Mo, or Ta filaments, baskets, coils, or boats, providing flexibility in deposition system integration.
Trade-offs
- Pre-purchase verification required: Buyers must confirm deposition source geometry, required quantity, certificate requirements, and shipment conditions before ordering to ensure compatibility.
- Process matching to material properties: Evaporation source hardware and process parameters must be matched to the material's melting point (232°C) and film requirements for optimal deposition results.
