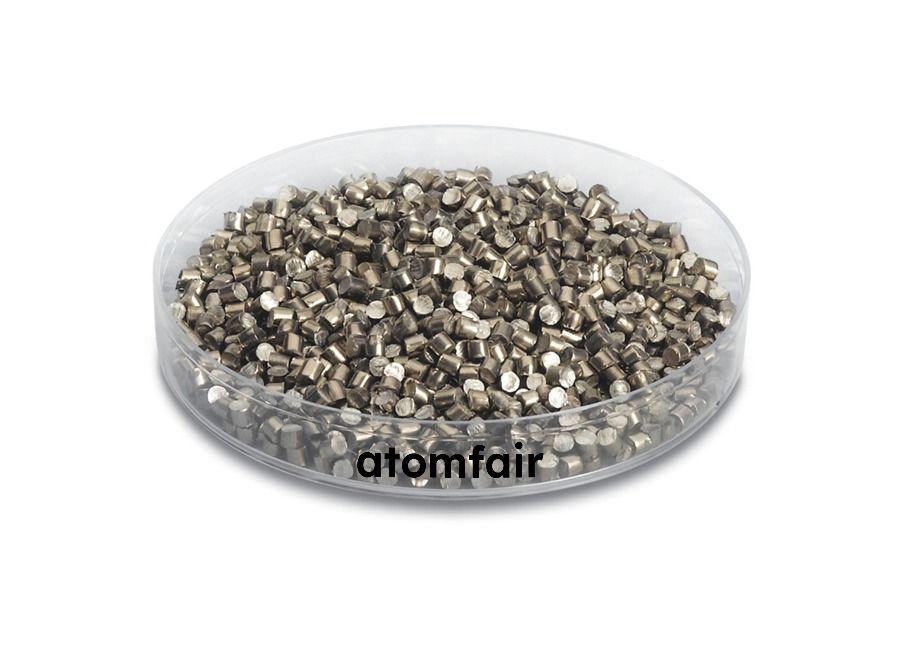

Tin (Sn) Evaporation Material, Shot, 99.99%, Shot 3-6 mm
Product Type: Pure Metal Evaporation Material
Research-grade laboratory product
|
|||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For material selection, deposition-source matching, pack-size confirmation or quotation support, contact our technical sales team.
INQUIRY: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
The material must be evaporated in a vacuum deposition system using thermal/resistive evaporation or low-power e-beam methods. Compatibility with Mo/W/Ta boats or graphite/alumina crucibles and the 3-6 mm shot size must be confirmed with the source geometry.
- Evaporation Method Compatibility: Thermal/resistive evaporation is preferred, while low-power e-beam evaporation is optional.
- Crucible and Boat Material Compatibility: Use Mo/W/Ta boat or graphite/alumina crucible as the evaporation source.
- Shot Size Consideration: The 3-6 mm shot size must be compatible with the deposition source geometry and loading mechanism.
- Melting Point Process Requirement: The melting point of 232 °C dictates the evaporation temperature and power settings.
- Purity Specification for Film Quality: The 99.99% purity specification ensures minimal contamination in deposited thin films.
What is the significance of the Z-ratio of 0.724 for tin (Sn) shot during thermal evaporation?
The Z-ratio of 0.724 indicates the acoustic impedance mismatch between the tin evaporation material and the quartz crystal sensor, which directly affects film thickness monitoring accuracy. This value requires a tooling factor adjustment in the deposition controller to ensure precise thickness readings. The source specifies a melting point of 232 °C and a density of 7.28 g/cm³, consistent with standard tin parameters.
Which crucible or boat materials are recommended for evaporating this tin shot at 99.99% purity?
The recommended evaporation sources for this tin shot are molybdenum (Mo), tungsten (W), or tantalum (Ta) boats, as well as graphite or alumina crucibles. These materials are compatible with the preferred thermal/resistive evaporation method, and low-power e-beam evaporation is also an option. The 3–6 mm shot form facilitates uniform loading into these sources.
What are the key handling and storage requirements for tin (Sn) evaporation shot to maintain its 99.99% purity?
Tin shot should be stored in a clean, dry environment to prevent oxidation or contamination that could degrade the 99.99% purity. The 3–6 mm shot form is designed for easy loading into evaporation sources, but care must be taken to avoid introducing foreign particles. The material has a melting point of 232 °C and remains solid under normal storage; a safety data sheet and certificate of analysis are available upon request to verify purity and handling guidelines.
This Tin (Sn) evaporation material (99.99%, shot 3-6 mm) is designed for thermal/resistive evaporation with Mo/W/Ta boats or graphite/alumina crucibles, offering defined purity and form for laboratory thin-film deposition. Its low melting point (232°C) and density (7.28 g/cm³) necessitate careful process parameter matching.
Positive
- High purity with defined physical form: 99.99% purity and shot form (3-6 mm) enable controlled, reproducible evaporation for thin-film deposition.
- Broad evaporation source compatibility: Compatible with Mo/W/Ta boats and graphite/alumina crucibles for thermal/resistive evaporation, with optional low-power e-beam.
Trade-offs
- Process matching required: Buyers must match evaporation source hardware and process route to the material's melting point (232°C), density (7.28), and film requirements for optimal results.
