Temperature Humidity Chamber 100 L, -20 to 100 °C ATOMFAIR®

Programmable Touchscreen Constant Temperature and Humidity Chamber, 100 L,-20-100℃

Research-grade laboratory product

Product Overview

Programmable Touchscreen Constant Temperature and Humidity Chamber, 100 L,-20-100℃ is a programmable touchscreen constant temperature and humidity chamber built for scientific research, biotechnology tests, pharmaceutical packaging, industrial raw-material studies and product lifetime evaluation. This configuration provides 100 l chamber volume, -20 to 100 C, 35%rh to 95%rh humidity control, imported 304 mirror-finish stainless-steel chamber interior and programmable color touchscreen controller with curve display and multi-language interface for stable day-to-day laboratory operation.

This family combines fluorine-free design, imported 304 stainless-steel inner chamber construction, balancing temperature-humidity control, test-port access and color-touchscreen editing as key chamber elements. The chamber combines balancing-control refrigeration system with multi-point safety protection with high-temperature humidity sensor for real-time monitoring, 2 shelves and an interior size of 500 x 400 x 550 mm, supporting incubation, cultivation, climate simulation or conditioned test work where repeatable environmental control is important.

This range is intended for laboratories that want staged touchscreen programs, multilingual interface, stored curves, PID self-tuning and safety protection in one humidity-chamber platform. Installation planning can be based on the external size of 650 x 800 x 1310 mm and the stated power requirement of 2300 W. Optional functions such as embedded printer; rs485 communication interface and software; wireless alarm system; communication interface and embedded printer are alternative options that should be selected according to the required configuration allow the unit to be adapted for alarm notification, data output, programmable operation, atmosphere support or other application-specific requirements.

Technical Specifications

Parameter	Specification / Available Values
Atomfair Model	AF-BCA0100
Manufacturer Model	BPS-100CA
Capacity	100 L
Temperature Control Range	-20 to 100 C
Temperature Resolution	0.1 C
Temperature Fluctuation / Uniformity	High temperature: +/- 0.5 C; low temperature: +/- 1 C
Humidity Function	35%RH to 95%RH
Humidity Deviation	+/- 3%RH
Controller	programmable color touchscreen controller with curve display and multi-language interface
Chamber Material	imported 304 mirror-finish stainless-steel chamber interior
Power / Input	2300 W
Power Supply	AC 220 V, 50 Hz
Working Environment	+5 to 30 C
Sensor Configuration	high-temperature humidity sensor for real-time monitoring
Cooling System	balancing-control refrigeration system with multi-point safety protection
Internal Dimensions	500 x 400 x 550 mm
External Dimensions	650 x 800 x 1310 mm
Shelves / Light Decks	2 shelves
Program Function	Touchscreen controller supports up to 100 programs, 1000 segments and 999 cycle steps, with a maximum time setting of 99 h 59 min per segment

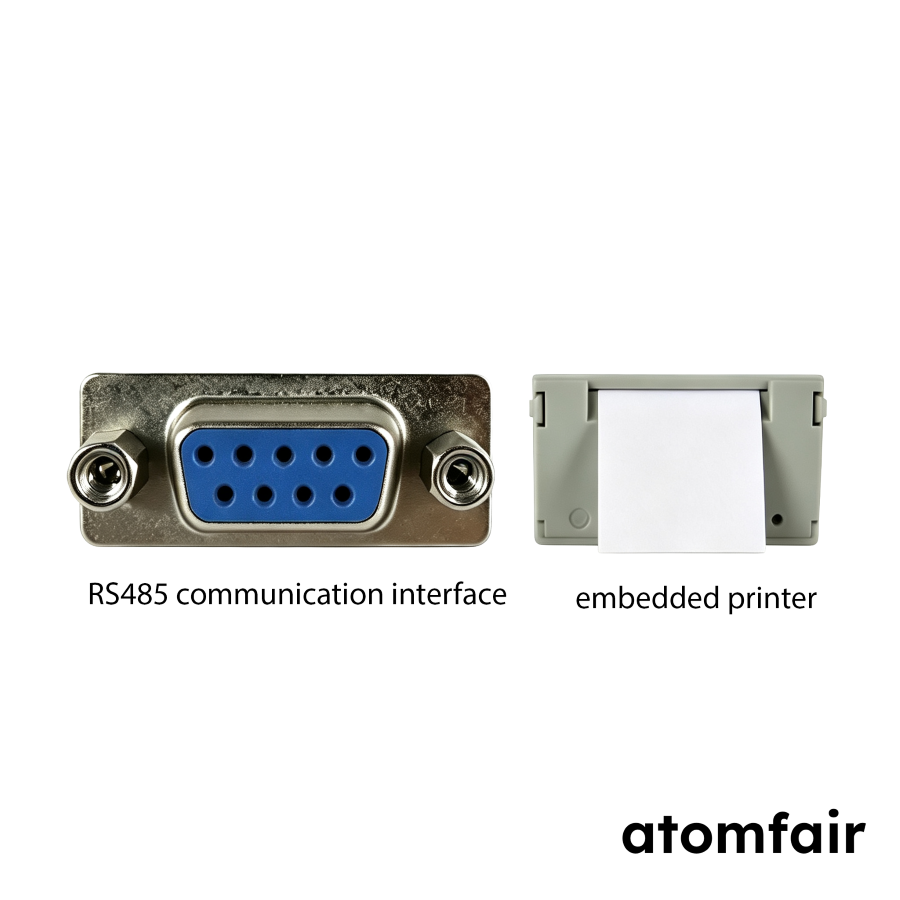

Optional Accessories and Functions	embedded printer; RS485 communication interface and software; wireless alarm system; communication interface and embedded printer are alternative options that should be selected according to the required configuration

Performance Features

Color touchscreen operation helps simplify program editing, parameter review and real-time curve observation during chamber use. This improves parameter review, setpoint editing and day-to-day operation in controlled chamber workflows.
Large program capacity supports staged environmental methods that need repeated cycles and multiple segments. This supports staged test methods and repeatable laboratory workflows that need cycle-based control.
PID auto-tuning helps correct temperature and humidity deviations quickly for more stable chamber control. This supports humidity-sensitive incubation, cultivation, conditioning and stability-study applications.
Balancing-control refrigeration and imported stainless-steel chamber construction support reliable long-duration operation. This helps support repeated cleaning, chamber hygiene and long-duration laboratory use.
Independent alarm and protection functions cover over-temperature, overload, over-current, fan and compressor conditions. This helps maintain dependable low-temperature performance and stable chamber recovery during repeated use.
Optional communication, printer and wireless-alarm functions make it easier to store, replay and supervise chamber records. This reduces operational risk by helping protect samples and notifying operators when abnormal conditions occur.

APPLICATION SCOPE: Suitable for scientific research, biotechnology tests, pharmaceutical packaging, industrial raw-material studies and product lifetime evaluation in universities, research institutes, pharmaceutical quality-control laboratories, agricultural research programs and industrial test environments that require controlled chamber operation.

HANDLING: Confirm installation space against 650 x 800 x 1310 mm, prepare the specified power supply, and keep air inlets, test ports, shelving, drain areas, doors and controller surfaces accessible for cleaning and maintenance. Every unit is shipped with reinforced packaging to reduce movement and impact during transport; keep the packed chamber upright and use suitable lifting equipment during unloading and positioning.

IMPORTANT NOTICE: Confirm the exact controller type, lighting form, humidity function, communication option and accessory package before ordering. Any displayed amount refers to the chamber body only and does not include freight. Freight is quoted separately and should be confirmed according to the delivery location and shipping method.

LABORATORY PROCUREMENT SUPPORT

For model selection, accessory matching, installation-space review, power-supply confirmation or configuration support, contact our technical sales team.

E-MAIL: inquiry@atomfair.com

Supplier: Atomfair

Brand: ATOMFAIR®

Operate the chamber within an ambient temperature range of +5 to 30°C and supply it with AC 220V, 50Hz, 2300W power. Position the unit upright using suitable lifting equipment and maintain accessibility of air inlets, test ports, and service points for cleaning and maintenance.

Ambient Temperature Limit: The chamber must be operated in an environment with ambient temperature between +5 and 30°C to ensure proper performance.
Electrical Supply Requirement: The unit requires a dedicated AC 220V, 50Hz power supply rated at 2300W.
Positioning and Handling: Keep the packed chamber upright during transport and use suitable lifting equipment for unloading and positioning.
Maintenance Access: Ensure air inlets, test ports, shelving, drain areas, doors, and controller surfaces remain accessible for cleaning and routine maintenance.

HowTo

This procedure outlines the initial installation and positioning steps required after delivery of the chamber. Follow these steps to ensure safe placement and preparation for operation.

Required Equipment: Suitable lifting equipment (e.g., forklift or pallet jack)

Confirm Installation Space
Confirm that the installation space accommodates the external dimensions of 650 x 800 x 1310 mm.
Prepare Power Supply
Prepare the specified power supply with AC 220V, 50Hz, and 2300W capacity.
Position Chamber
Position the chamber upright in the installation location using suitable lifting equipment and confirm that all service access points are unobstructed.

FAQ

What is the temperature uniformity of the BPS-100CA constant temperature and humidity chamber at high and low temperatures?

The temperature fluctuation/uniformity is ±0.5°C at high temperature and ±1°C at low temperature, as specified in the technical data for the 100 L chamber with a -20 to 100°C range.

Can the Atomfair BPS-100CA humidity chamber be integrated with external data logging or alarm systems?

Yes, optional accessories include an RS485 communication interface with software for data logging, a wireless alarm system for remote notification, and an embedded printer for on-site records. These options must be selected at the time of ordering.

What are the power supply and environmental installation requirements for the 100 L programmable temperature and humidity chamber?

The chamber requires AC 220 V, 50 Hz power with a 2300 W input and must be operated in a working environment of +5 to 30°C. External dimensions are 650 x 800 x 1310 mm; ensure adequate clearance for air inlets, test ports, and maintenance access.

Assessment

The Atomfair BPS-100CA (AF-LE-E-BPSC-0100-CA10) is a 100L programmable constant temperature and humidity chamber with -20 to 100°C temperature range and 35-95%RH humidity control, featuring a color touchscreen controller with multi-language support and PID auto-tuning for stable environmental simulation in research and testing applications.

Positive

Programmable color touchscreen controller: Supports up to 100 programs, 1000 segments, and 999 cycles with a maximum segment time of 99h59min, enabling complex staged environmental test methods.
Balancing-control refrigeration system: Combines multi-point safety protection with imported 304 stainless-steel chamber interior for reliable long-duration operation and easy cleaning.

Trade-offs

Ambient temperature dependency: The chamber requires a working environment of +5 to 30°C; deviations outside this range may affect performance or require additional infrastructure.
Humidity range limitation: Humidity control is limited to 35-95%RH with a deviation of ±3%RH, restricting applications requiring low-humidity conditions below 35%RH.
