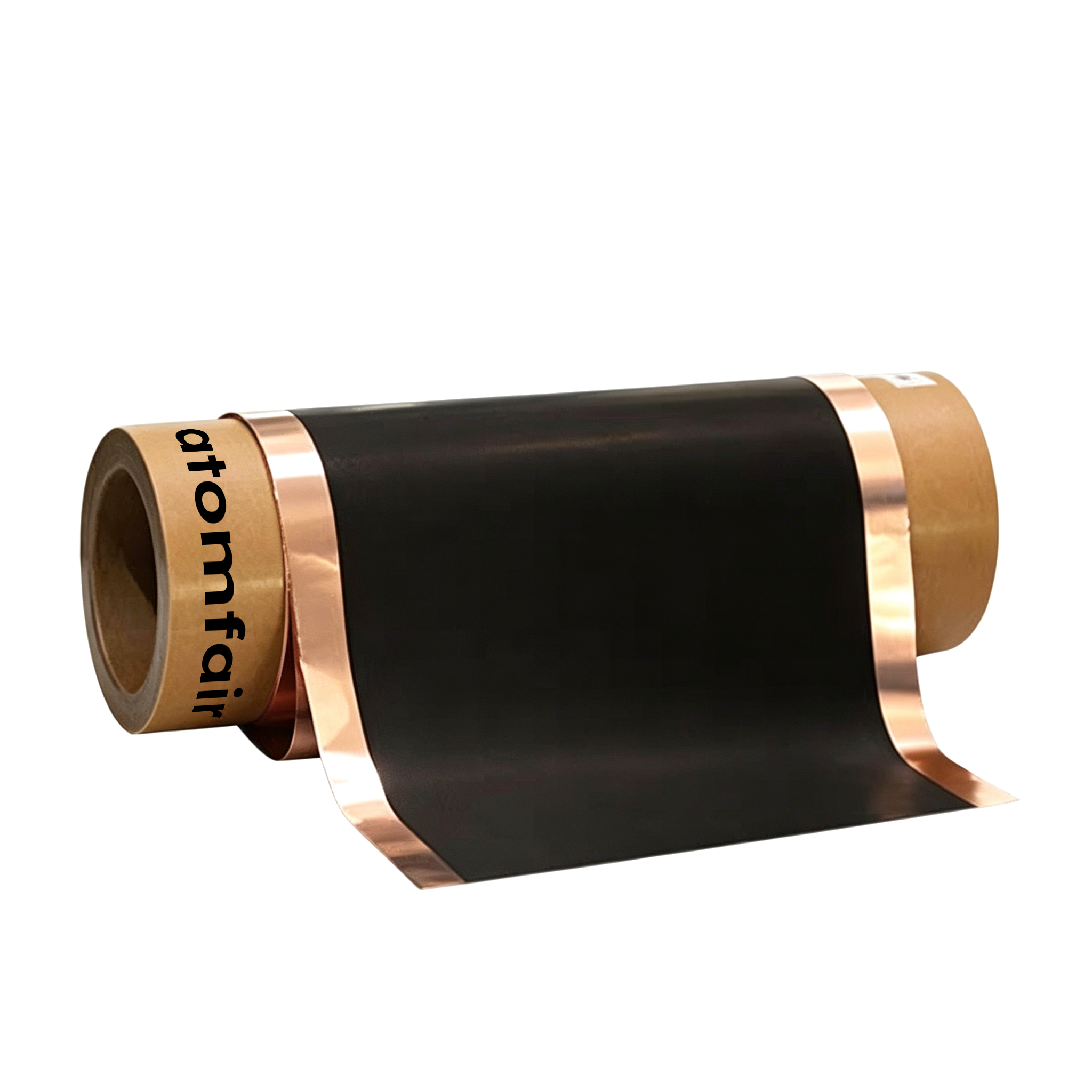

ATOMFAIR® a roll of graphite coated copper foil showing a dark black matte sheet extending from a silver metallic roll edge.

ATOMFAIR® Single-Side Coated Carbon Cu Foil R&D

Price range: $206.00 through $207.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Battery grade graphite coated copper foil with customizable thickness from 10 to 20 μm. Single-sided or double-sided configurations available. Order now.

SKU: AFMSYITX473
Category:
Brands:


ATOMFAIR® SINGLE-SIDE COATED CARBON COPPER FOIL

RESEARCH GRADE MATERIAL

Product Overview
The ATOMFAIR® Single-Side Coated Carbon Copper Foil is a premium-grade surface-modified current collector engineered for advanced lithium-ion battery anodes, particularly optimized for silicon-carbon (Si/C) anode systems. Featuring a 1µm conductive carbon coating on high-purity electrolytic copper foil (>99.99% purity), this product delivers exceptional interfacial conductivity with surface resistivity <30Ω/25µm2. With 10±1.0µm copper substrate, total thickness of 12±1µm, tensile strength ≥265 MPa, and elongation ≥6.0%, it significantly reduces internal resistance, enhances active material adhesion, and prevents corrosion/oxidation. Competitive coated copper foil pricing makes it ideal for power battery, energy storage Si/C LIB, 3C high-rate Si/C batteries, and aqueous-system lithium-ion battery R&D and production.

Technical Specifications

PARAMETER DETAILS
1. Core Device & Electrochemical Design
Product Name Single-Side Coated Carbon Copper Foil
Coating Type Single-Side Conductive Carbon Coating
Coating Thickness 1 µm
Total Width 260 ± 1 mm
Effective S1 Coating Width 220 ± 1 mm
Copper Substrate Thickness 10 ± 1.0 µm
Copper Purity > 99.99%
2. Cathode (Positive Electrode) Parameters
Total Thickness (After Coating) 12 ± 1 µm
Surface Resistivity < 30 Ω/25µm2
Tensile Strength (After Coating) ≥ 265 MPa
Elongation (After Coating) ≥ 6.0% (Typical ~22%)
3. Anode (Negative Electrode) Parameters
Binder Reduction Capability Enables reduced binder content, improving energy density
Corrosion & Oxidation Protection Carbon layer isolates electrolyte/moisture, prevents Cu corrosion
Interfacial Contact Resistance Significantly reduced vs. bare copper foil
Adhesion Strength Enhanced surface tension for superior active material bonding
4. Separator & Physical Package Metrics
Storage Condition Dry, ventilated environment; controlled humidity; away from corrosive gases
Packaging Anti-static moisture-proof sealed packaging with protective interleaving
Manufacturing Rules Processed under strict ISO 9001 / IATF 16949 compliance conditions
Alternative Options Explore our related catalog or custom dimensions. For urgent technical custom requests or bulk inquiries, please contact our support team.

Key Features & Advantages
  • Enhanced Electrode Adhesion: The conductive carbon coating increases copper foil surface tension, significantly improving bonding strength between anode active material and current collector, effectively preventing active material shedding and particle detachment during cycling.
  • Superior Energy Density & Cycle Life: Enables reduced binder content in electrode formulation, effectively increasing cell-level energy density while extending battery cycle life through improved interfacial stability and reduced polarization.
  • Anti-Corrosion & Oxidation Protection: The conductive carbon layer acts as a protective barrier, isolating electrolyte and moisture from the copper substrate, effectively preventing copper corrosion and oxidation failure during charge/discharge operations.
  • Ultra-Low Internal Resistance & Polarization: Significantly reduces interfacial contact resistance between copper foil and anode materials, lowering cell internal resistance, minimizing polarization effects, and maximizing active material specific capacity, ideally suited for high-rate charge/discharge conditions.
  • Enhanced Safety Performance: Reduces heat generation during battery charge/discharge cycles, effectively suppressing thermal runaway risks and significantly improving overall cell safety coefficient.
  • Improved Production Yield & Consistency: Uniform and stable physicochemical properties across the product enhance individual cell pass rates and battery pack matching consistency, effectively reducing comprehensive cell production costs.

Application Scenarios
# APPLICATION SCENARIO
1 Power Battery & Energy Storage Silicon-Carbon (Si/C) Lithium-Ion Batteries
2 3C Consumer High-Rate Silicon-Carbon Lithium-Ion Batteries
3 Aqueous-System Lithium-Ion Batteries

APPLICATION SCOPE: Power battery and energy storage Si/C lithium-ion batteries, 3C consumer high-rate Si/C batteries, aqueous-system lithium-ion batteries, high-energy-density cell R&D, and next-generation anode material development.
PACKAGING: Anti-static moisture-proof sealed packaging with protective interleaving; vacuum-sealed with desiccant to prevent oxidation and surface contamination during storage and transport.
PRODUCT CODE: ATOMFAIR-CC-10S-260 (For internal material tracking, batch traceability, procurement, and quality management.)
IMPORTANT NOTICE: This coated copper foil features a delicate 1µm carbon layer sensitive to mechanical abrasion and environmental contamination. Keep packaging sealed until use. Store in dry, cool, ventilated conditions away from acidic/corrosive environments. Handle with clean, non-abrasive tools and clean gloves to avoid surface damage that may affect adhesion or electrochemical performance. Recommended storage temperature: 20±5°C, relative humidity < 60%.

TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com

Manufacturer Atomfair LLC
Brand ATOMFair

This graphite coated copper foil must be stored in a cool, dry environment away from moisture and direct sunlight to prevent degradation. Appropriate personal protective equipment is required during handling to avoid contamination and physical injury.

  • Storage Condition: Store the foil in a cool, dry place away from moisture and direct sunlight to maintain material integrity.
  • Handling Requirement: Use appropriate personal protective equipment (PPE) during handling to prevent contamination and physical injury.
  • Disposal Regulation: Dispose of the material according to local regulations for electronic or coated materials.

How does the choice between single-sided and double-sided graphite coating affect electrode performance in lithium-ion batteries?

The double-sided configuration provides graphite coating on both sides of the copper foil, potentially increasing active material loading for higher energy density, while the single-sided option reduces material usage for cost-effective designs. Both configurations maintain the high electrical conductivity and flexibility stated in the product features.

Is this graphite coated copper foil compatible with standard lithium-ion battery electrode fabrication processes?

Yes, the product is explicitly designed for use as an anode sheet in lithium-ion batteries and supercapacitors, making it directly compatible with standard electrode assembly for consumer electronics, electric vehicles, and energy storage systems. Its durable and flexible construction supports integration into both rigid and flexible battery geometries.

What specific storage conditions are required to maintain the integrity of graphite coated copper foil before use?

Store the foil in a cool, dry place away from moisture and direct sunlight to prevent oxidation or degradation of the copper substrate and graphite coating. Additionally, use appropriate personal protective equipment during handling to avoid contamination or physical damage.

This graphite-coated copper foil combines a high-conductivity copper substrate with a conductive graphite coating to improve electrode performance in lithium-ion batteries and supercapacitors, available in customizable thicknesses and single- or double-sided configurations. Storage must be controlled to avoid moisture and sunlight exposure, and handling requires PPE due to potential surface reactivity or particulate hazards.

Positive

  • High electrical conductivity: The copper foil substrate, combined with the graphite coating, provides superior electrical conductivity, enabling efficient energy transfer in battery and supercapacitor electrodes.
  • Customizable thickness options: Available in various thicknesses to match specific electrode design requirements, allowing engineers to optimize active material loading and electrode density.

Trade-offs

  • Moisture and sunlight sensitivity: The product must be stored in a cool, dry place away from moisture and direct sunlight to prevent oxidation or degradation of the graphite coating and copper substrate.
  • Requires PPE during handling: Handling this foil necessitates appropriate personal protective equipment, likely due to sharp edges from cutting or potential graphite particle release during processing.

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD excl. heavy equipment). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).

lenght

Single-Sided 1m, Double-Sided 1m
