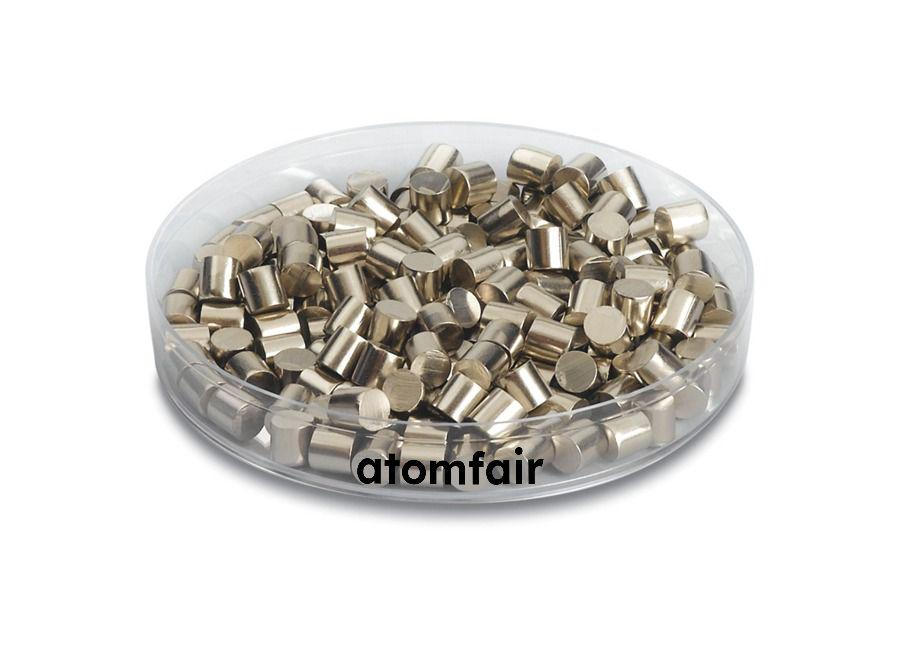

Nickel (Ni) Evaporation Material, Pellets, 99.95%, 3-6 mm
Product Type: Pure Metal Evaporation Material
Research-grade laboratory product
|
|||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For material selection, deposition-source matching, pack-size confirmation or quotation support, contact our technical sales team.
INQUIRY: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
This evaporation material must be processed using compatible source hardware such as Mo/W/Ta boats or graphite/alumina crucibles to avoid contamination or failure. The material's melting point and Z-ratio require calibration of deposition parameters and thickness monitoring equipment.
- Source Compatibility: Select a boat or crucible material compatible with nickel to prevent alloying or wetting issues.
- Melting Point: The melting point of 1,453°C determines the required power and deposition rate for thermal or e-beam evaporation.
- Z-Ratio: The Z-ratio of 0.331 must be entered into the quartz crystal monitor for accurate film thickness measurement.
- Purity Requirement: The 99.95% purity level ensures consistent film properties but requires clean handling to avoid contamination.
What is the melting point of the Nickel evaporation material (model AF-NIPEL-999536MM) and how does it affect deposition process selection?
The melting point of this Nickel (Ni) evaporation material is 1,453°C, as stated in the technical specifications. This high melting point necessitates the use of compatible evaporation sources such as Mo/W/Ta boats, graphite/alumina crucibles, or e-beam hearths, which are capable of reaching the required temperatures for thermal/resistive or e-beam evaporation.
Is the 99.95% pure Nickel pellets compatible with both thermal resistive and e-beam evaporation methods?
Yes, the product is explicitly specified for both thermal/resistive and e-beam evaporation. The 3-6 mm pellet form and 99.95% purity are suitable for these methods, and the listed evaporation source compatibility includes Mo/W/Ta boats, graphite/alumina crucibles, and e-beam hearths.
What is the Z-ratio of 0.331 for Ni and why is it important for film thickness monitoring?
The Z-ratio of 0.331 is a material-specific acoustic impedance factor used in quartz crystal microbalance (QCM) thickness monitoring during e-beam evaporation. Accurate knowledge of this value is critical for correct film thickness readings, ensuring repeatable and controlled deposition results.
This Nickel (Ni) evaporation material in pellet form (99.95% purity, 3-6 mm) offers high material purity and flexibility across thermal and e-beam evaporation sources, but the high melting point and specific Z-ratio require careful source selection and deposition monitoring.
Positive
- High purity and defined material identity: 99.95% purity and clear Nickel (Ni) specification enable reliable deposition process matching and procurement accuracy for vacuum thin-film workflows.
- Multi-source evaporation compatibility: Pellet form (3-6 mm) is compatible with Mo/W/Ta boats, graphite/alumina crucibles, and e-beam hearths, allowing flexible integration into thermal/resistive or e-beam evaporation systems.
Trade-offs
- High melting point requires robust source: With a melting point of 1,453°C, the material demands high-temperature evaporation sources and careful thermal management to avoid process instability or source damage.
- Z-ratio necessitates QCM calibration: The Z-ratio of 0.331 requires calibration of quartz crystal microbalance (QCM) sensors for accurate film thickness monitoring during deposition, adding a setup step.
