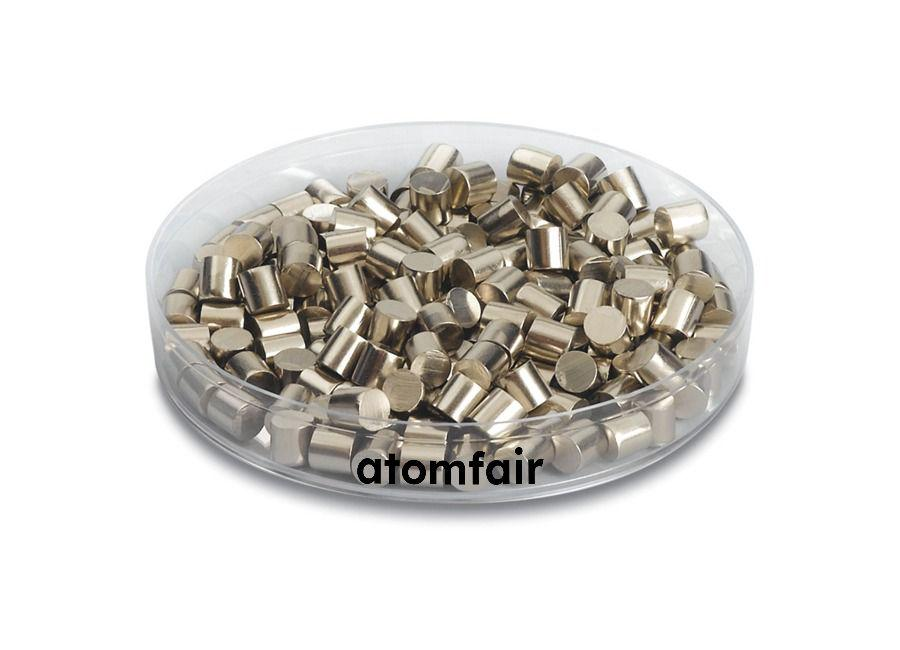

Nickel (Ni) Evaporation Material, Pellets, 99.999%, 3-6 mm
Product Type: Pure Metal Evaporation Material
Research-grade laboratory product
|
|||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For material selection, deposition-source matching, pack-size confirmation or quotation support, contact our technical sales team.
INQUIRY: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
This nickel evaporation material requires precise matching of deposition source hardware to its melting point and Z-ratio for consistent thin-film deposition. The pellet form and size range must be compatible with the chosen evaporation boat or crucible geometry.
- Evaporation Source Compatibility: Use only with Mo/W/Ta boats, graphite/alumina crucibles, or e-beam hearths for thermal/resistive or e-beam evaporation.
- Process Parameter Adjustment: Adjust deposition parameters based on the material's melting point of 1453°C and Z-ratio of 0.331.
- Purity Specification: The 99.999% purity grade ensures minimal contamination but requires confirmation of certificate and safety data sheet before use.
- Form and Size Constraints: The pellet form with 3-6 mm size range must be compatible with the deposition source geometry.
- Material Behavior Matching: Match the evaporation source hardware and process route to the material behavior, melting point, and film requirements.
How does the Z-ratio of Atomfair nickel pellets (0.331) impact thickness monitoring accuracy during e-beam evaporation?
The Z-ratio of nickel is provided as 0.331 for use in quartz crystal microbalance (QCM) thickness monitoring systems during e-beam evaporation; this value allows accurate tooling factor calculation to achieve desired film thicknesses; users should input this Z-ratio into their deposition controller for correct rate monitoring.
What boat or crucible materials are compatible with Atomfair nickel pellets during thermal evaporation?
Atomfair nickel pellets are compatible with molybdenum (Mo), tungsten (W), tantalum (Ta) boats as well as graphite or alumina crucibles; the choice depends on evaporation temperature (melting point ~1453°C) and potential wetting behavior; users should verify compatibility with their specific deposition hardware before use.
What documentation should be reviewed before handling Atomfair nickel pellets?
Before handling Atomfair nickel pellets (99.999% purity), users should review the certificate of analysis for purity verification and the safety data sheet (SDS) for handling precautions; shipment conditions and export requirements should also be confirmed against laboratory use requirements as noted in the procurement checklist.
Nickel (Ni) evaporation pellets at 99.999% purity and 3-6 mm size are evaluated for thin-film deposition via thermal or e-beam evaporation, with high melting point (1453°C) and Z-ratio (0.331) considerations for process control.
Positive
- High 99.999% Purity: Nickel evaporation material is specified at 99.999% purity, minimizing contamination in thin-film deposition for applications requiring controlled film composition.
- Defined Pellet Size 3-6 mm: The 3-6 mm pellet form ensures consistent loading into evaporation sources and promotes reproducible evaporation rates across batch runs.
Trade-offs
- High Melting Point Requires Robust Source: With a melting point of 1453°C, the material demands high-temperature boat or crucible materials (e.g., Mo, W, Ta) and careful thermal management to avoid source damage.
- Z-Ratio Affects Rate Monitoring: The Z-ratio of 0.331 necessitates calibration of quartz crystal microbalance sensors for accurate thickness and rate control during e-beam evaporation.
