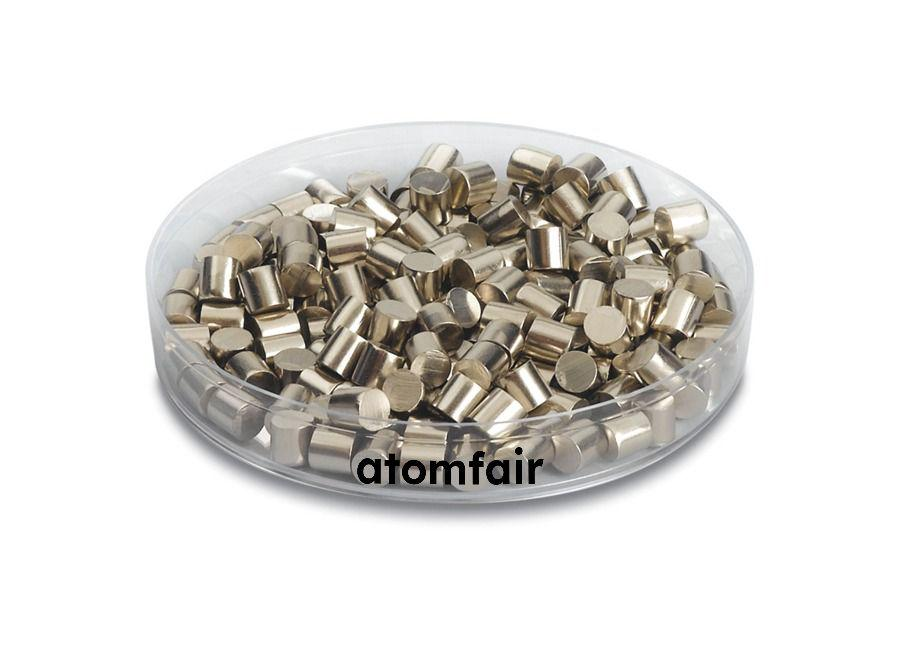

Nickel (Ni) Evaporation Material, Pellets, 99.999%, 1-3 mm
Product Type: Pure Metal Evaporation Material
Research-grade laboratory product
|
|||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For material selection, deposition-source matching, pack-size confirmation or quotation support, contact our technical sales team.
INQUIRY: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
Nickel pellets require vacuum deposition equipment with compatible thermal or e-beam sources. Source material and pellet size must be matched to the deposition system to ensure proper film quality.
- Evaporation Source Compatibility: Use only Mo/W/Ta boats, graphite/alumina crucibles, or e-beam hearths to avoid contamination or reaction at high temperature.
- Process Temperature Limits: Ensure the evaporation source can reach and maintain the melting point of 1453°C without exceeding material limits.
- Pellet Size Loading: Confirm that the 1-3 mm pellet size fits the source loading mechanism and does not cause bridging or uneven melting.
- Vacuum Environment Requirement: Operate in a high-vacuum chamber to prevent oxidation and achieve consistent thin-film deposition.
- Purity Integrity: Handle pellets in a clean environment to preserve the 99.999% purity and avoid introducing contaminants.
What is the significance of the Z-ratio value of 0.331 for nickel evaporation material in thin-film deposition?
The Z-ratio of 0.331 is a material-specific constant used in quartz crystal microbalance (QCM) thickness monitoring during e-beam evaporation. Accurate input of this value ensures correct film thickness measurement; the product's specified purity of 99.999% and pellet form (1–3 mm) support consistent deposition behavior.
Can these nickel pellets be used with both thermal resistive and e-beam evaporation systems?
Yes, the product is compatible with both thermal/resistive and e-beam evaporation methods. Recommended source materials include Mo/W/Ta boats, graphite/alumina crucibles, or e-beam hearths as listed in the technical specifications.
What infrastructure considerations are needed for evaporating nickel pellets with a melting point of 1,453°C?
The high melting point of 1,453°C requires evaporation sources capable of reaching and sustaining that temperature, such as tungsten or molybdenum boats or e-beam hearths. Users should also consider the density of 8.9 g/cm³ for charge loading calculations and the Z-ratio of 0.331 for process control.
This Nickel (Ni) evaporation material, supplied as 99.999% pure pellets in 1-3 mm size, is suitable for thermal or e-beam deposition using Mo/W/Ta boats or crucibles. The 1,453°C melting point and 8.9 g/cm³ density require careful source matching and process control.
Positive
- Ultra-high purity 99.999%: The 99.999% purity specification minimizes contamination in thin-film deposition, supporting sensitive applications in electronics and optics where trace impurities can degrade film properties.
- Defined pellet size 1-3 mm: The 1-3 mm pellet form ensures consistent loading into thermal boats, crucibles, or e-beam hearths, reducing variability in evaporation rate and source refill frequency.
Trade-offs
- Source compatibility verification required: The evaporation source (Mo/W/Ta boat, graphite/alumina crucible, e-beam hearth) must be matched to the material's melting point (1,453°C) and density (8.9 g/cm³), requiring pre-purchase confirmation of hardware compatibility and process parameters.
- Pre-purchase documentation and shipment checks: Buyers must confirm certificate availability, safety data sheet, shipment conditions, and export requirements before ordering, as these are not automatically provided and may affect laboratory procurement timelines.
