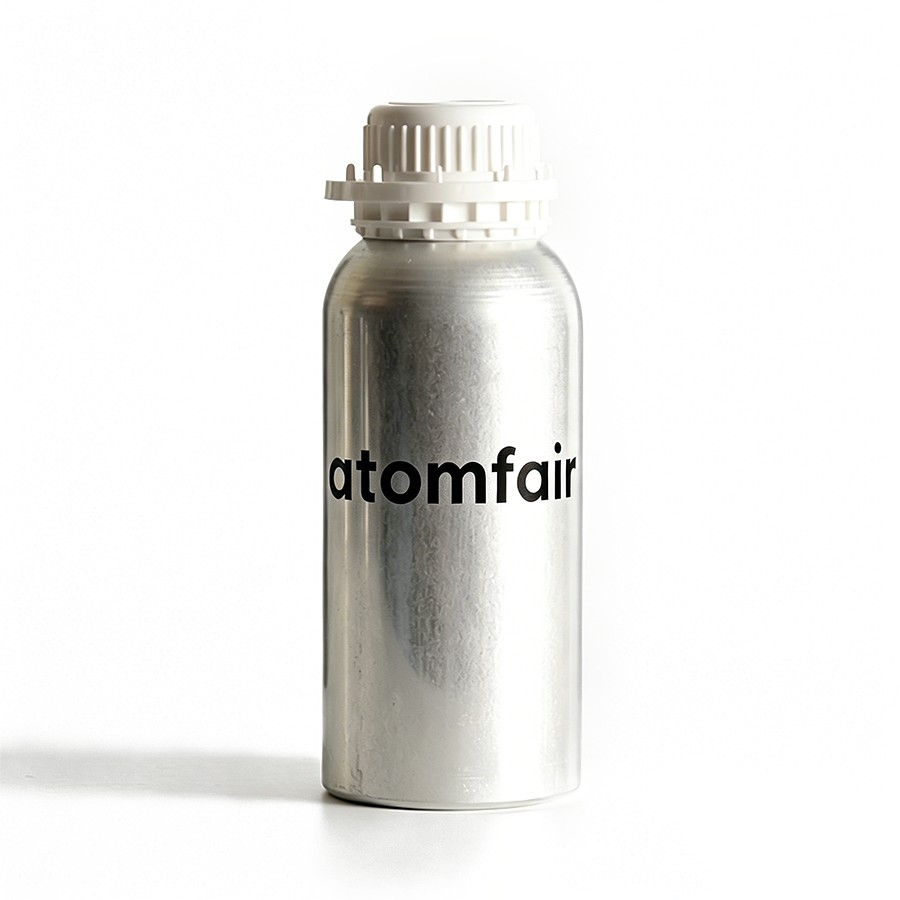

ATOMFAIR® HIGH-PURITY MONOCLINIC ZIRCONIA POWDER – 30NMRESEARCH GRADE MATERIAL
|
||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||
|
|||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
|||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
This monoclinic zirconia powder requires controlled sintering to achieve dense electrolyte layers for SOFC applications. Trace impurity levels must be strictly limited to avoid phase degradation during operation.
- Sintering Temperature Control: Optimized sintering temperature profiles are required to achieve high density and ionic conductivity while avoiding over-sintering.
- Impurity Tolerance: Al, Si, and Fe impurities must be minimized below specified thresholds to prevent phase degradation and maintain electrolyte integrity.
- Surface Treatment Integrity: The battery-grade activator surface treatment should be protected from contamination to preserve its intended electrochemical properties.
How does the 30nm particle size of this monoclinic zirconia powder affect sintering temperature compared to larger particle sizes?
The 30nm particle size enables significantly lower sintering temperatures by providing a high surface area for enhanced reactivity and densification, as stated in the product's ability to achieve superior sintering activity and uniform microstructure development. This contrasts with micron-sized powders that require higher thermal input for equivalent densification.
Can this monoclinic zirconia powder be directly used in yttria-stabilized zirconia (YSZ) electrolyte fabrication without additional yttria doping?
No, this powder is monoclinic phase and not pre-stabilized; for direct application in YSZ electrolytes, custom doping with yttria or scandia is available upon request to achieve the conductive cubic or tetragonal phase. The product description explicitly offers custom doping services to meet stabilization requirements.
What are the recommended storage conditions for this battery-grade nano-zirconia powder to maintain its surface activator performance?
To preserve the battery-grade activator surface treatment, the powder should be stored in airtight, moisture-free containers at room temperature, as the ultra-fine 30nm particles and activated surface are inherently sensitive to humidity and agglomeration. The product's high surface area and reactive coating necessitate dry, sealed conditions to retain its enhanced compatibility with binders and electrolytic solutions.
This 30nm monoclinic zirconia powder with 99.9% purity and battery-grade surface treatment is optimized for SOFC electrolyte applications, though its unstabilized monoclinic phase requires doping to achieve high ionic conductivity in operational devices.
Positive
- Ultra-low impurity content: Extremely low Al₂O₃ (≤0.002%), SiO₂ (≤0.002%), Fe₂O₃ (≤0.003%), and CaO (≤0.003%) prevent phase degradation and maintain long-term electrolyte integrity in solid oxide fuel cells.
- 30nm particle size with activated surface: The 30nm particle size provides high surface area for enhanced reactivity and lower sintering temperatures, and the battery-grade activator treatment improves compatibility with binders and electrolytic solutions.
Trade-offs
- Monoclinic phase requires stabilization: As supplied, the powder is in monoclinic phase; for optimal ionic conductivity in SOFC electrolytes, custom doping (e.g., yttria or scandia stabilization) must be requested and performed, adding a processing step.
- Nano-powder handling and dispersion challenges: The 30nm particle size leads to high surface energy and potential agglomeration; careful dispersion protocols or pre-dispersed slurry options are necessary to achieve uniform microstructure and avoid dust hazards.
