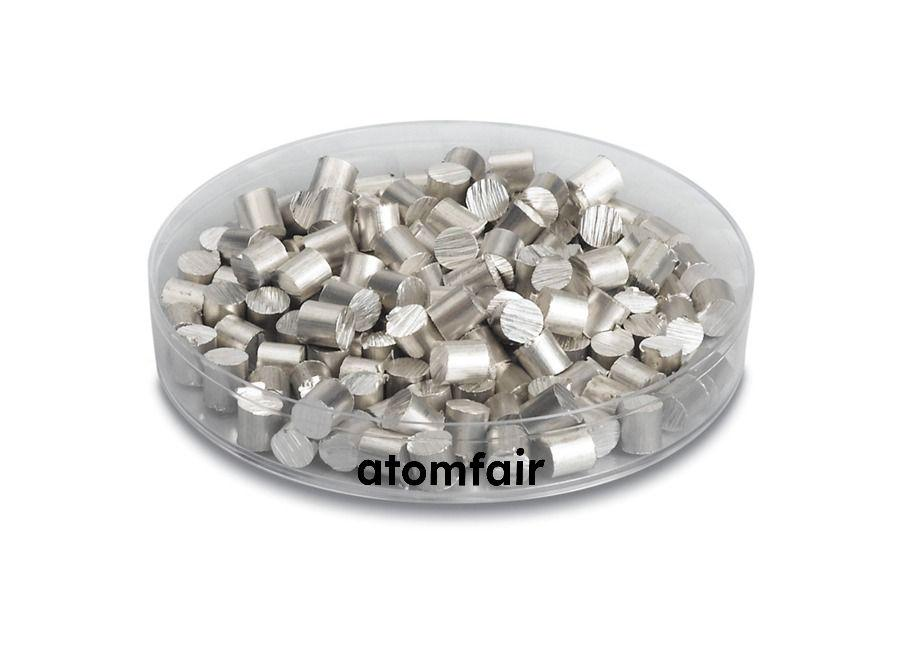

Molybdenum (Mo) Evaporation Material, Pellets, 99.99%, 1-3 mm
Product Type: Pure Metal Evaporation Material
Research-grade laboratory product
|
|||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For material selection, deposition-source matching, pack-size confirmation or quotation support, contact our technical sales team.
INQUIRY: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
This molybdenum evaporation material requires specific deposition source hardware and process parameters. Compatibility with water-cooled copper e-beam hearth and selected liner materials must be confirmed prior to use.
- Deposition Source Compatibility: The material requires a water-cooled copper e-beam hearth and a compatible liner such as graphite, Al₂O₃, BN, or Ta.
- Process Parameter Matching: The evaporation process must account for the material's melting point of 2,617°C and Z-ratio of 0.257 to ensure proper deposition rate and film quality.
- Source Geometry Confirmation: Buyers must confirm that the pellet size of 1-3 mm is compatible with the deposition source geometry before loading.
What are the critical physical parameters specified for molybdenum evaporation pellets that influence e-beam deposition process matching?
The pellets have a melting point of 2 617 °C density of 10.2 g/cm³ and Z‑Ratio of 0.257 as listed specifications; these values are essential for matching e‑beam power settings crystal monitor calibration and film thickness control during vacuum thin‑film deposition.
Which liner materials are compatible with molybdenum evaporation in a water‑cooled copper e‑beam hearth?
Compatible liner materials include graphite aluminum oxide boron nitride and tantalum as stated in the product specifications; selection depends on thermal stability chemical inertness at molybdenum’s high melting point of 2 617 °C.
What procurement verification steps are recommended before ordering molybdenum pellets for laboratory use?
Buyers should confirm model purity form particle size pack size and deposition‑source compatibility; additionally review certificate safety data sheet shipment conditions and export requirements against laboratory use requirements before quotation.
Molybdenum evaporation pellets (99.99% purity, 1–3 mm) for e-beam deposition; high melting point (2617°C) and density (10.2 g/cm³) require water-cooled copper hearth and compatible liners, with Z-ratio 0.257 for process control.
Positive
- High purity for clean films: 99.99% purity minimizes contamination in thin-film deposition, suitable for research-grade applications where film stoichiometry and impurity control are critical.
- Defined physical form and size: Pellet form with 1–3 mm sizing matches standard e-beam hearth loading and provides consistent material feed for evaporation runs.
Trade-offs
- High melting point requires robust source: Melting point of 2617°C necessitates high-power e-beam evaporation and water-cooled copper hearth; not compatible with thermal evaporation or low-temperature sources.
- Form factor limits application flexibility: Supplied only as pellets; alternative forms (e.g., rods, wires, sputtering targets) are not available, restricting use to specific deposition hardware configurations.
Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.
To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.
Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD excl. heavy equipment). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
