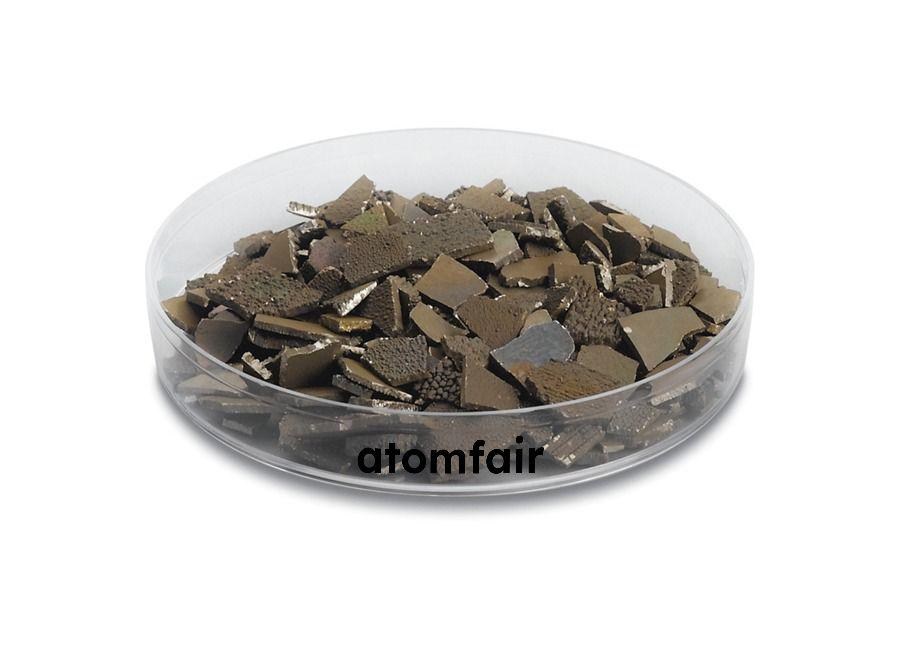

Manganese (Mn) Evaporation Material, Pieces, 99.9%, 3-6 mm
Product Type: Pure Metal Evaporation Material
Research-grade laboratory product
|
|||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For material selection, deposition-source matching, pack-size confirmation or quotation support, contact our technical sales team.
INQUIRY: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
Manganese (Mn) evaporation material in piece form with 99.9% purity and 3-6 mm size range requires specific source hardware and process parameters. Proper matching of deposition source and method to material properties is essential for successful thin-film deposition.
- Source Compatibility: The material must be used with Mo/W/Ta boat, graphite/alumina crucible, or e-beam hearth for thermal/resistive or e-beam evaporation.
- Material Properties Influence: The melting point of 1244°C, density of 7.2 g/cm³, and Z-ratio of 0.377 affect evaporation rate and film uniformity.
- Physical Form: The 3-6 mm piece size must be compatible with the loading geometry of the evaporation source.
- Purity Constraint: The 99.9% purity specification should be verified against the required film purity for the intended application.
- Process Matching: Evaporation source hardware and process route must be matched to the material's melting point and film requirements to avoid contamination or deposition failure.
How does the Z-ratio of 0.377 affect thin film thickness monitoring during manganese evaporation?
The Z-ratio of 0.377 is a material-specific constant used in quartz crystal microbalance (QCM) thickness monitors to correct for the acoustic impedance mismatch between the deposited film and the quartz crystal. This value, provided in the product specifications, is essential for accurate real-time thickness measurement during manganese evaporation, ensuring deposition parameters match the target film thickness.
What boat or crucible materials are compatible with thermal evaporation of manganese pieces?
This manganese evaporation material is compatible with molybdenum (Mo), tungsten (W), or tantalum (Ta) boats, as well as graphite or alumina crucibles for thermal or resistive evaporation. For e-beam evaporation, a standard e-beam hearth can be used. These compatibility details are specified in the product description to ensure proper source selection and process reliability.
What is the melting point of this manganese evaporation material and how does it influence deposition method selection?
The melting point of this manganese evaporation material is 1244 °C, with a density of 7.2 g/cm³. This relatively low melting point for a pure metal makes it suitable for both thermal/resistive evaporation using Mo/W/Ta boats or graphite/alumina crucibles and e-beam evaporation, as the material can be readily vaporized without excessive thermal stress on the source hardware.
Manganese evaporation material (99.9%, 3-6 mm pieces) offers a defined composition and physical form for thermal or e-beam deposition, but its 1,244°C melting point and standard purity level impose constraints on source hardware and application tolerance for impurities.
Positive
- Precise Material Identity and Purity: Manganese with 99.9% purity ensures clear procurement matching for standard evaporation workflows, with defined form and size for reliable source loading.
- Specified Physical Form and Size: Pieces in 3-6 mm range facilitate consistent loading into boats, crucibles, or e-beam hearths, reducing process variability.
Trade-offs
- High Melting Point Requires Thermal Management: Melting point of 1,244°C and density 7.2 g/cm³ demand appropriate boat or crucible materials and power control to avoid thermal stress or contamination.
- Standard Purity May Not Meet Ultra-High Requirements: At 99.9% purity, this grade is suitable for general research but may require higher-purity RFQ-controlled grades for applications sensitive to trace impurities.
