LED Plant Growth Chamber, 505 L
Research-grade laboratory product
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For model selection, accessory matching, installation-space review, power-supply confirmation or configuration support, contact our technical sales team.
E-MAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
|
Supplier: Atomfair
Brand: ATOMFAIR®
|
This chamber requires a controlled installation environment and specific power infrastructure. Operational temperature ranges vary with lighting configuration, and the unit must be kept upright during transport.
- Installation Space and Power Requirements: Confirm installation space against external dimensions of 910 x 930 x 1840 mm and prepare a 2800 W, AC 220 V, 50 Hz power supply.
- Environmental Operating Limits: Operate the chamber within a working environment of 0 to 35 °C to maintain specified performance.
- Temperature Control Range by Lighting Configuration: Without light, the chamber maintains 5 to 45 °C; with single-layer light, 10 to 45 °C; with double-layer light, 15 to 45 °C.
- Transport and Handling Constraints: Keep the packed chamber upright and use suitable lifting equipment to prevent damage during transport.
This procedure covers initial installation, power connection, and basic operation of the chamber. Follow these steps to ensure safe and correct setup.
Required Equipment: Suitable lifting equipment, AC 220 V, 50 Hz power supply
- Position the chamber
Place the chamber on a level surface with adequate clearance for air inlets, exhaust paths, and service access. - Connect power
Connect the chamber to a dedicated AC 220 V, 50 Hz power outlet that can supply 2800 W. - Set environmental conditions
Set the working environment temperature to between 0 and 35 °C before starting the chamber. - Configure the controller

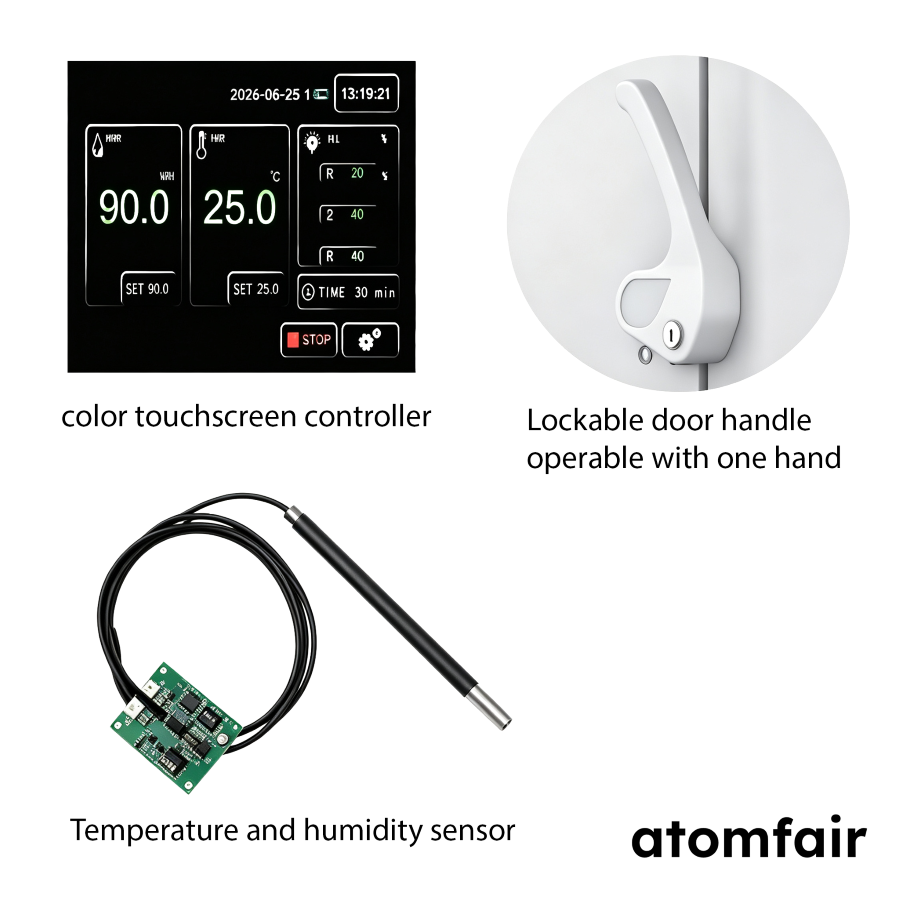

Use the 7-inch touchscreen to program temperature, lighting, and time segments according to your experimental protocol. - Verify operation
Confirm that the chamber reaches the set temperature and lighting conditions before loading samples.
How does the lighting configuration affect the temperature control range of the LED Plant Growth Chamber 505 L?
The temperature control range depends on the lighting load. Without light, the range is 5 to 45°C. With single-layer light, it narrows to 10 to 45°C. With double-layer light, it further narrows to 15 to 45°C due to heat added by the LED modules. The chamber uses dual imported compressors and energy-saving cooling to maintain stability within these bands.
Can the LED Plant Growth Chamber 505 L be equipped with CO2 monitoring and control for plant research?
Yes. The chamber supports optional CO2 inlet and infrared CO2 controller as accessories. These allow atmospheric enrichment and monitoring for advanced plant research workflows. Additionally, optional wireless alarm, App control, and data logging via RS485/232, USB, or embedded printer are available.
What are the space and power requirements for installing the 505 L LED Plant Growth Chamber?
The external dimensions are 910 x 930 x 1840 mm, requiring a floor area of approximately 0.85 m². The power requirement is 2800 W at AC 220 V, 50 Hz. The working environment must be maintained between 0 and 35°C. Ensure air inlets, exhaust paths, and service ports remain accessible.
The Atomfair LED Plant Growth Chamber (505 L) offers a SUS304 stainless-steel interior, dual long-duration compressors, and a programmable touchscreen controller, but the temperature range is constrained by lighting load and active humidity control is not provided, making it best suited for applications where these trade-offs are acceptable.
Positive
- Dual long-duration compressors: Uses dual imported compressors designed for long-duration operation, providing stable low-temperature performance and extended running stability for continuous cultivation and climate simulation.
- SUS304 stainless-steel interior: The chamber interior is constructed from SUS304 stainless steel with adjustable shelf supports, facilitating easy cleaning, corrosion resistance, and flexible configuration for plant growth and tissue culture applications.
Trade-offs
- Temperature range varies with lighting load: The controllable temperature range shifts from 5–45°C without light to 10–45°C with single-layer light and 15–45°C with double-layer light, limiting low-temperature operation when lighting is active.
- No active humidity control: This configuration lacks active humidity control; only humidity deviation is specified (±3%RH at 80%RH), which may be insufficient for workflows requiring precise humidity regulation.
