Product Overview
LATP (Li1.5Al0.5Ti1.5(PO4)3) is an air-stable, NASICON-structured oxide solid-state electrolyte for all-solid-state lithium battery (ASSB) research.
High phase purity , low moisture, white powder
Three grades: 5 µm / 600 nm / 300 nm — custom on request
Product Details
LATP (Li1.5Al0.5Ti1.5(PO4)3) Oxide Solid-State Electrolyte Powder is an air-stable, NASICON-structured oxide solid-state electrolyte for all-solid-state lithium battery (ASSB) research. Its 3D NASICON framework provides fast Li⁺ migration pathways, delivering an ionic conductivity of ≥1.3 mS/cm (10⁻³ S/cm) at 27 °C after sintering. Unlike sulfide electrolytes, LATP is stable in air and easy to handle, with a wide electrochemical window and good compatibility with NCM and LCO cathodes. It is available as a white powder in three particle-size grades — 5 µm, 600 nm, and 300 nm — so researchers can match particle size to ceramic pellets, composite films, or high-loading composite electrodes.
Key Product Data
Key Features
- Air-stable NASICON oxide chemistry — no glovebox required for basic handling, unlike sulfides
- High ionic conductivity ≥1.3 mS/cm (10⁻³ S/cm) at 27 °C after sintering
- 3D Li⁺ migration pathways with a wide electrochemical window
- Compatible with NCM and LCO cathodes and polymer-ceramic composite systems
- Three particle-size grades (5 µm / 600 nm / 300 nm) for pellets, films, and composites

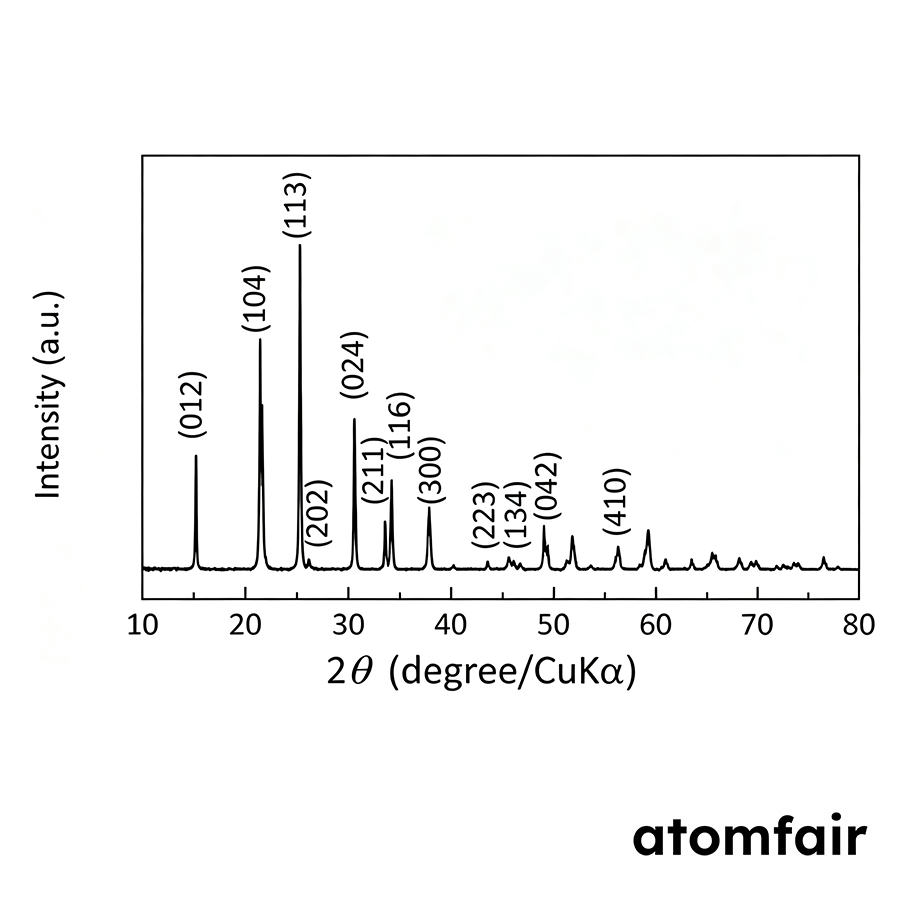

- High phase purity with low moisture and consistent D50
Application Areas
Ceramic separator / electrolyte pellets for all-solid-state lithium batteries (ASSB)
Polymer-ceramic composite electrolyte films
High-loading composite cathodes (with NCM, LCO)
Nanocomposite electrolyte films (sub-micron and nano grades)
University, research-institute, and industrial solid-state battery R&D
Standard pack sizes 100 g ; custom quantities available on request
Store sealed in a cool, dry environment, protected from moisture
Reseal promptly after use; 1-year shelf life when sealed
