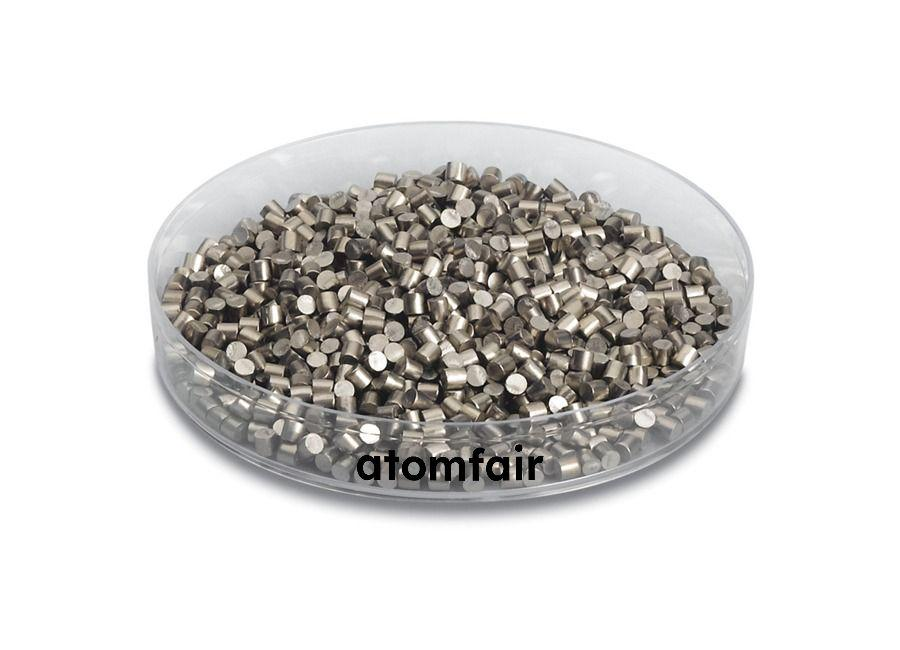

Iron (Fe) Evaporation Material, Pellets, 99.95%, 3-6 mm
Product Type: Pure Metal Evaporation Material
Research-grade laboratory product
|
|||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For material selection, deposition-source matching, pack-size confirmation or quotation support, contact our technical sales team.
INQUIRY: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
This material is designed for thermal/resistive or e-beam evaporation in vacuum thin-film deposition systems. It requires compatible source hardware such as Mo/W/Ta boats, graphite/alumina crucibles, or e-beam hearths, and its process parameters must account for its melting point, density, and Z-ratio.
- Evaporation Source Compatibility: The material must be used with Mo/W/Ta boats, graphite/alumina crucibles, or e-beam hearths for thermal or e-beam evaporation.
- Process Parameter Considerations: The deposition process must account for the material's melting point of 1,535°C, density of 7.86 g/cm³, and Z-ratio of 0.349 to achieve consistent film properties.
- Source Geometry Confirmation: Deposition source geometry must be confirmed before use to ensure proper pellet loading and evaporation uniformity.
- Vacuum Environment Requirement: The evaporation process must be conducted under vacuum conditions to prevent oxidation and contamination of the iron film.
- Evaporation Method Compatibility: The material is suitable for both thermal/resistive and e-beam evaporation methods.
What evaporation source hardware is compatible with Iron (Fe) pellets at 99.95% purity for thin-film deposition?
This Iron (Fe) evaporation material is compatible with Mo/W/Ta boat, graphite/alumina crucible, or e-beam hearth sources for thermal/resistive or e-beam evaporation. The specified melting point of 1,535 °C and density of 7.86 g/cm³ should be matched to the source hardware and process route to ensure stable evaporation and film quality.
How does the Z-ratio of 0.349 affect e-beam evaporation process control for these iron pellets?
The Z-ratio of 0.349 is a critical parameter for quartz crystal microbalance (QCM) thickness monitoring during e-beam evaporation. This value must be entered into the deposition controller to accurately calculate film thickness and deposition rate from the sensor's frequency shift, as deviations can lead to significant thickness errors in the deposited iron film.
What handling or storage considerations apply to 3-6 mm iron pellets with 99.95% purity for laboratory use?
As a research-grade pure metal evaporation material, these iron pellets should be stored in a dry, inert atmosphere to prevent oxidation prior to deposition. The 3-6 mm pellet size is designed for direct loading into boats or crucibles, but buyers should confirm shipment conditions and safety data sheet requirements with the supplier, as iron fines may pose combustion risks under certain conditions.
This Iron (Fe) evaporation material in pellet form (99.95% purity, 3-6 mm) is specified for thermal and e-beam deposition, but requires careful matching of source hardware and process conditions due to its high melting point (1,535°C) and Z-ratio (0.349) that influences rate monitoring.
Positive
- High Purity and Defined Form: 99.95% purity and 3-6 mm pellet size ensure consistent evaporation behavior and compatibility with standard thermal and e-beam sources.
- Broad Evaporation Source Compatibility: Suitable for Mo/W/Ta boats, graphite/alumina crucibles, and e-beam hearths, allowing flexible integration into existing deposition systems.
Trade-offs
- High Melting Point Requires Robust Equipment: With a melting point of 1,535°C, the material demands high-temperature evaporation sources and may not be suitable for low-power lab systems.
- Pre-Purchase Compatibility Verification Needed: Deposition source geometry, boat/crucible type, and process route must be confirmed with the supplier before ordering to avoid hardware mismatch.
