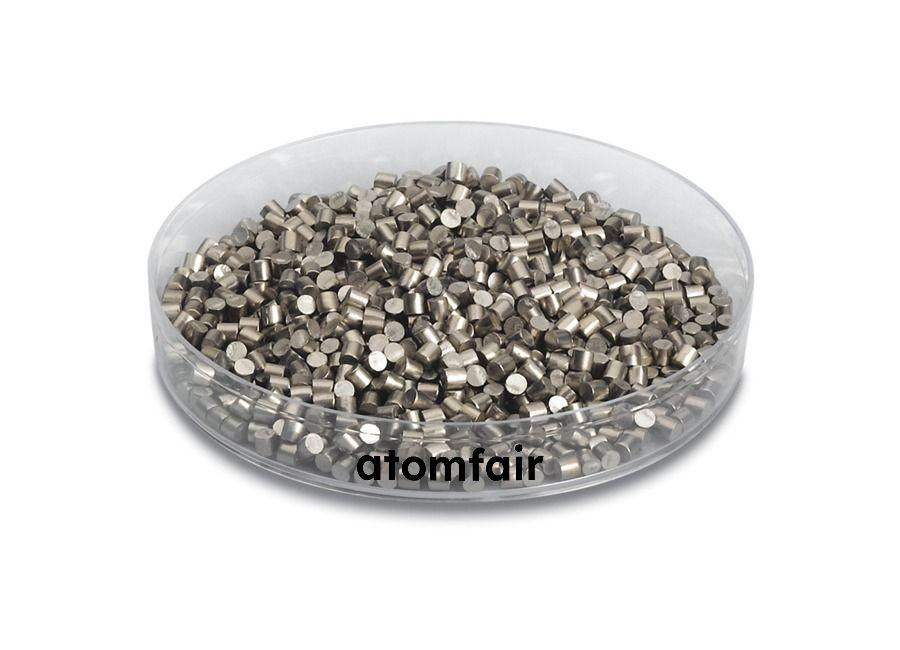

Iron (Fe) Evaporation Material, Pellets, 99.99%, 3-6 mm
Product Type: Pure Metal Evaporation Material
Research-grade laboratory product
|
|||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For material selection, deposition-source matching, pack-size confirmation or quotation support, contact our technical sales team.
INQUIRY: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
Iron (Fe) evaporation pellets require careful matching of deposition source hardware and process parameters to achieve consistent thin-film deposition. The material's melting point and physical form dictate compatibility with thermal/resistive or e-beam evaporation methods using specified boat or crucible materials.
- Evaporation Source Compatibility: Evaporation source hardware must be selected from Mo/W/Ta boats, graphite/alumina crucibles, or e-beam hearths to ensure compatibility with iron pellets.
- Process Route Matching: The material's melting point of 1,535°C and its behavior must be considered when matching the evaporation method and process route.
- Source Geometry Verification: Deposition source geometry should be confirmed before purchase to ensure proper pellet loading and evaporation.
What evaporation source hardware is compatible with Iron (Fe) pellets of 99.99% purity and 3-6 mm size?
These Iron pellets are compatible with thermal/resistive or e-beam evaporation using Mo/W/Ta boats, graphite/alumina crucibles, or e-beam hearths. The 3-6 mm pellet size is designed to facilitate consistent source loading and controlled evaporation in these common deposition systems.
How does the Z-ratio of 0.349 for Iron (Fe) affect e-beam evaporation process control?
The Z-ratio of 0.349 is a material-specific acoustic impedance factor used in quartz crystal microbalance (QCM) thickness monitoring during e-beam evaporation. This value must be entered into the deposition controller to ensure accurate film thickness measurement and rate control for Iron films deposited from these 99.99% purity pellets.
What are the key procurement considerations for ordering Iron evaporation pellets in 100g, 500g, or 1kg pack sizes?
Buyers must confirm deposition source geometry, required quantity, certificate requirements, and shipment conditions before quotation. The available pack sizes are 100g, 500g, and 1kg, with indicative pricing at USD 360, USD 900, and USD 1200 respectively. Documentation such as certificates and safety data sheets should be reviewed against laboratory use requirements.
Iron (Fe) evaporation pellets at 99.99% purity and 3–6 mm size provide a defined material system for thermal or e-beam deposition, but the high melting point (1,535 °C) demands careful selection of boat or crucible materials to avoid thermal degradation.
Positive
- High purity 99.99% for low-contamination films: The 99.99% purity specification directly supports production of thin films with minimal impurity incorporation, critical for applications in electronics, optics, and corrosion-resistant coatings.
- Pellet form compatible with multiple evaporation sources: The 3–6 mm pellet form is explicitly listed as compatible with Mo/W/Ta boats, graphite/alumina crucibles, and e-beam hearths, offering flexibility in thermal/resistive or e-beam evaporation system integration.
Trade-offs
- High melting point requires robust source materials: With a melting point of 1,535 °C, the evaporation source hardware must be selected from materials (e.g., Mo, W, Ta, graphite, alumina) capable of sustained thermal cycling without deformation or contamination, as noted in the matching guidance.
- Precise source compatibility verification needed before use: The procurement checklist explicitly requires confirmation of deposition-source geometry, boat/crucible type, and process route to avoid material mismatch or equipment damage, adding a verification step to laboratory workflow planning.
