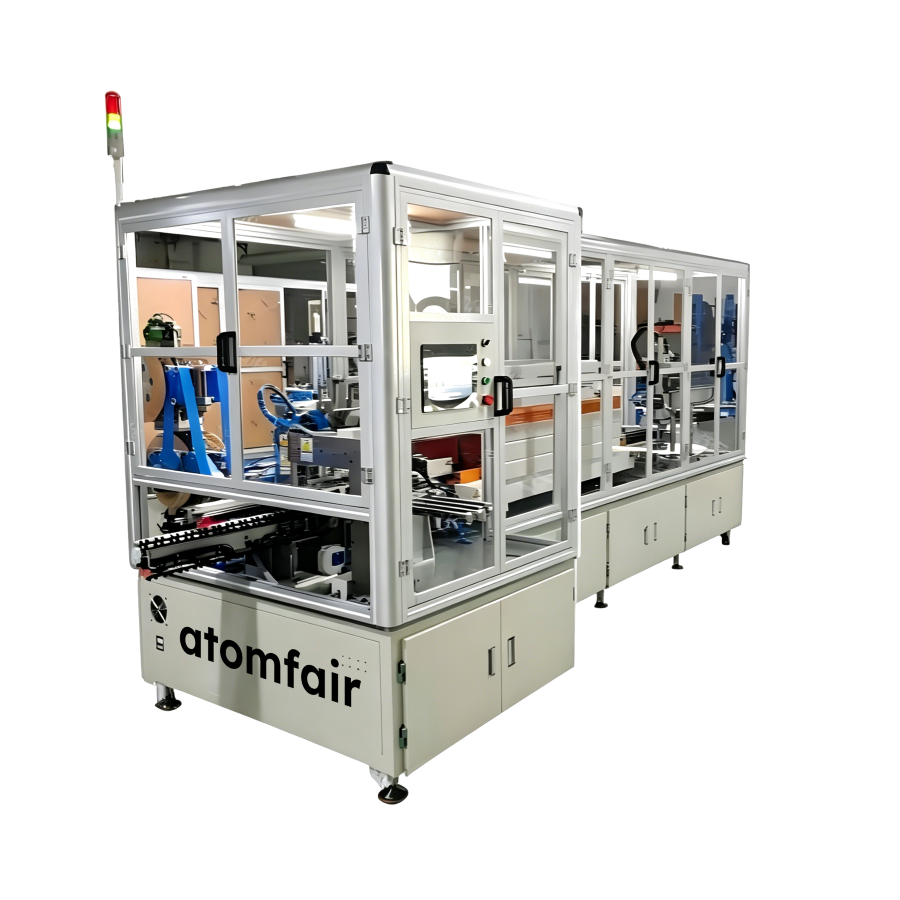

ATOMFAIR® FLM-814 BATTERY FILM WRAPPING MACHINERESEARCH GRADE MATERIAL
|
|||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
|||||||||||||||||||||||||||||||||||||||
Operate machine exclusively with 3-phase 380V 50Hz power supply within ±10% voltage fluctuation to prevent electrical hazard. Ensure compressed air supply is clean, dry, and maintained at ≥0.6 MPa with flow capacity >20 m³/h for safe pneumatic operation.
- Electrical Supply: Connect to 3-phase 380V 50Hz source with voltage tolerance ±10% to avoid motor and controller damage.
- Compressed Air: Supply compressed air at ≥0.6 MPa and minimum flow of 20 m³/h to ensure proper pneumatic actuation.
- Floor Load Capacity: Install on floor with load capacity exceeding 500 kg/m² to support the 1500 kg machine weight.
Follow these steps to safely set up and start the automatic film wrapping machine for cylindrical batteries. Adjust steps based on battery dimensions and production requirements.
Required Equipment: Compressed air supply with regulator, 3-phase 380V 50Hz power source, Cylindrical battery fixture set
- Connect power and air
Connect the machine to the specified 3-phase power supply and compressed air line, verifying voltage and pressure meet requirements. - Install fixture
Mount the correct fixture for the cylindrical battery diameter onto the wrapping station. - Load batteries
Load cylindrical batteries into the automatic feeder hopper for sequential processing. - Configure HMI
Set film length, inkjet parameters, and heat shrink temperature via the intelligent HMI touchscreen. - Start cycle
Press the start button to initiate the automatic wrapping cycle, monitoring for fault alarms on the HMI.
How does the Atomfair-FLM-814 maintain its ≥99% qualified rate when operating at its maximum throughput of 8 PPM?
The machine uses a servo control system for high precision and integrates multiple processes—feeding, inkjet printing, positioning film wrapping, insulation pad placing, pressing, and heat shrinking—into one automatic line. The specified qualified rate of ≥99% is achieved at the rated efficiency of ≥8 PPM, confirming no inherent trade-off between quality and throughput within the designed operating range.
What are the specific utility requirements for integrating the Atomfair-FLM-814 into a cylindrical battery production line?
The machine requires 3-phase 380V 50Hz power with a total of 15 kW and voltage fluctuation tolerance of ±10%, plus compressed air at ≥0.6 MPa with a flow rate >20 m³/h. These infrastructure dependencies must be satisfied to ensure reliable operation and avoid production interruptions.
What floor load capacity and space dimensions are needed for the Atomfair-FLM-814 installation, and how does its weight affect floor loading?
The machine measures 3100×1500×2000 mm, weighs 1500 kg, and requires a floor load capacity exceeding 500 kg/m². Its footprint of 4.65 m² yields a static load of approximately 322 kg/m², which is well below the specified requirement, allowing safe installation on standard industrial floors without special reinforcement.
This automatic cylindrical battery film wrapping machine delivers ≥8 PPM throughput with integrated inkjet printing and heat shrinking, but requires three-phase 380V power, compressed air ≥0.6 MPa, and a 1500 kg floor load capacity.
Positive
- High production throughput: Efficiency ≥8 PPM with utilization rate ≥95% and qualified rate ≥99%, enabling reliable mass production.
- Integrated multi-step process: Combines feeding, internal and external inkjet printing, film wrapping, insulation pad placement and pressing, and heat shrinking in one automated system, reducing manual handling.
Trade-offs
- High infrastructure requirements: Requires 3-phase 380V 50Hz power supply (15 kW), compressed air ≥0.6 MPa with flow >20 m³/h, and floor load >500 kg/m².
- Large footprint and weight: Dimensions 3100 × 1500 × 2000 mm and weight 1500 kg demand significant floor space and structural support.
