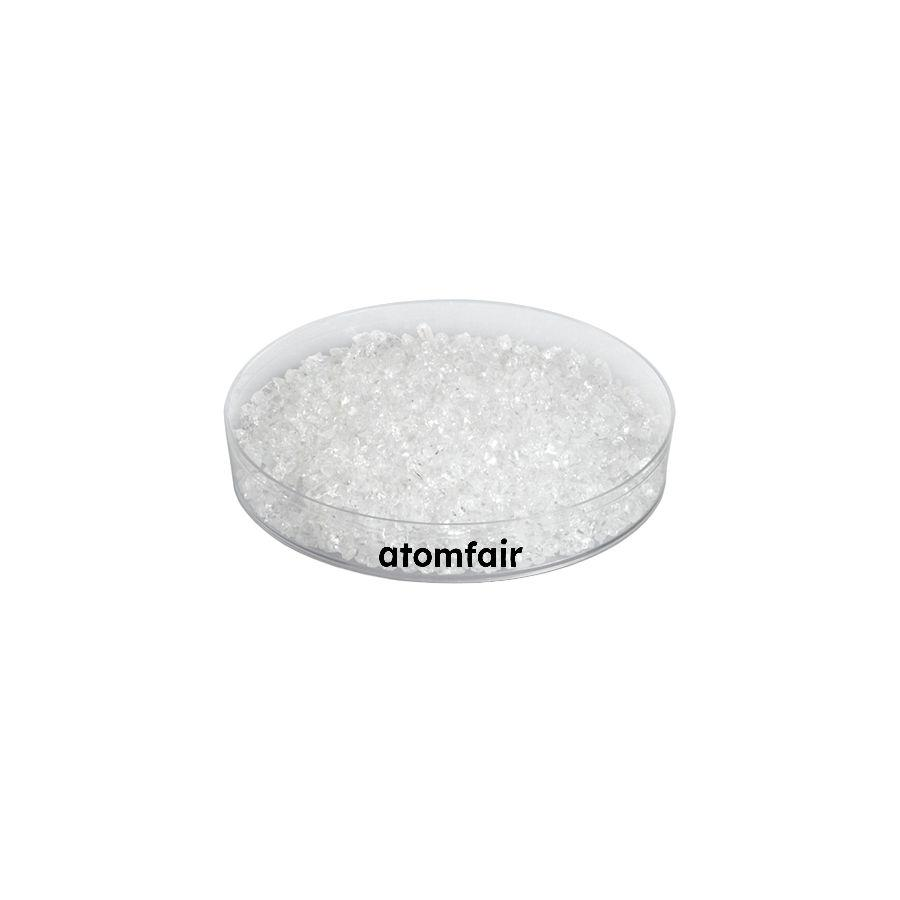

ErbiumOxide (Er2O3) Evaporation Material, Pieces, 99.99%, 325 mesh
Product Type: Compound Evaporation Material
Research-grade laboratory product
|
|||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For material selection, deposition-source matching, pack-size confirmation or quotation support, contact our technical sales team.
INQUIRY: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
This document outlines the processing and compatibility constraints for Erbium Oxide (Er2O3) evaporation material supplied as 99.99% pure pieces (325 mesh). The material requires specific evaporation source hardware, including an e-beam hearth with graphite, Al2O3, or BN liner, or a W/Mo/Ta boat, and is preferentially used for e-beam evaporation.
- Evaporation Method Preference: E-beam evaporation is the preferred method; thermal evaporation requires RFQ confirmation and alternative boat materials.
- Liner and Boat Compatibility: Use graphite, Al2O3, or BN liners for e-beam hearths, or W/Mo/Ta boats for thermal evaporation to avoid contamination.
- High-Temperature Melting Point: The melting point of 2,350°C demands that the deposition source and liner materials withstand extreme thermal conditions.
- Z-Ratio Calibration: A Z-Ratio of 1.00 simplifies quartz crystal monitor calibration but must be verified against the actual density of the deposited film.
- Particle Size and Form: The 325 mesh pieces form must be compatible with the source loading geometry to ensure uniform evaporation rate and film quality.
What is the significance of the Z-ratio value of 1.00 for Er2O3 in E-beam evaporation?
A Z-ratio of 1.00 indicates optimal acoustic impedance matching for quartz crystal microbalance (QCM) monitoring, meaning no material-specific correction factor is needed for accurate film thickness control during deposition. This is directly stated in the product specifications as the Z-Ratio value for Er2O3.
Can Er2O3 pieces be used in thermal evaporation or only E-beam evaporation?
E-beam evaporation is the preferred method, but thermal evaporation is possible by RFQ using an E-beam hearth with a graphite, Al2O3, or BN liner, or a W, Mo, or Ta boat. The product description explicitly states 'E-beam evaporation preferred; thermal evaporation by RFQ' and lists compatible liner and boat materials.
What melting point does Er2O3 have and how does it affect deposition source selection?
Er2O3 has a melting point of 2,350°C, which requires high-temperature evaporation sources such as E-beam or dedicated refractory boats. The product specification lists compatible evaporation hardware including E-beam hearths with graphite, Al2O3, or BN liners and W, Mo, or Ta boats to handle this high melting point.
Erbium Oxide (Er2O3) evaporation material supplied as 325-mesh pieces with 99.99% purity is optimized for e-beam evaporation in vacuum thin-film deposition, requiring specific source hardware (graphite/Al2O3/BN liner or W/Mo/Ta boat) and process matching due to its high melting point (2350°C) and density (8.64 g/cm³).
Positive
- High-purity 99.99% Er2O3: The 99.99% purity level ensures minimal contamination in thin-film deposition, critical for optical and electronic applications requiring precise stoichiometry and low defect density.
- Specified 325-mesh piece form: The 325-mesh piece size provides consistent loading and controlled evaporation rates in e-beam hearths, reducing the risk of source spitting or uneven film thickness.
Trade-offs
- Specific source hardware required: E-beam evaporation with a graphite/Al2O3/BN liner or W/Mo/Ta boat is mandatory; thermal evaporation is only available by RFQ and may not be compatible with standard boats, limiting process flexibility.
- High melting point (2350°C): The 2350°C melting point demands high-power e-beam systems and careful thermal management, increasing operational complexity and potential for source degradation over extended runs.
