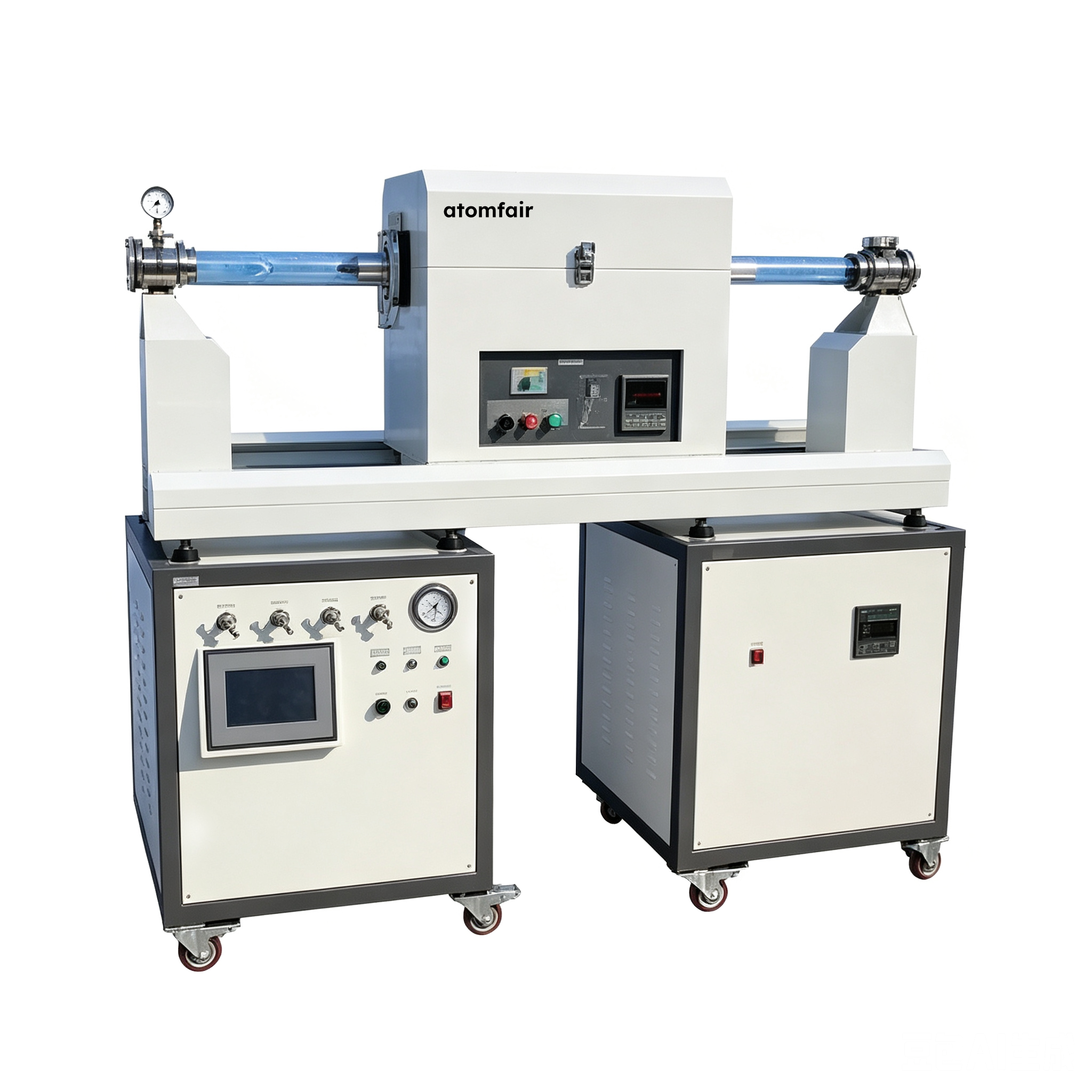

Double-Zone Sliding Two-Dimensional Materials Preparation System, 50 mm Tube, 1200 °C

Double-Zone Sliding Two-Dimensional Materials Preparation System, 50 mm Tube, 1200 °C

$6,500.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Double-Zone Sliding Two-Dimensional Materials Preparation System, 50 mm Tube, 1200 °C is configured for two-dimensional material growth and low-vacuum CVD-style laboratory preparation workflows. This product is distinguished by double zone sliding two-dimensional preparation equipment and its process-specific configuration.

SKU: AF-TD-T-1200-2DSL-002J
Category:
Tags: , ,
Brands:

Double-Zone Sliding Two-Dimensional Materials Preparation System, 50 mm Tube, 1200 °C
TWO-DIMENSIONAL MATERIAL GROWTH EQUIPMENT
Product Overview

Double-Zone Sliding Two-Dimensional Materials Preparation System, 50 mm Tube, 1200 °C is configured for two-dimensional material growth and low-vacuum CVD-style laboratory preparation workflows.

This product is distinguished by double zone sliding two-dimensional preparation equipment and its process-specific configuration.

Confirm the tube size, heating-zone layout, gas-flow range, vacuum pump package, temperature-control configuration and accessories before quotation.
Technical Specifications
Parameter Specification / Available Values
Atomfair Model TD-1200-2J
Product Family Double Zone Sliding Two-Dimensional Preparation Equipment
Rated Power 5 kW.
Maximum Temperature 1200 °C.
Working Temperature 1100 °C.
Maximum Heating/Cooling Rate 10 °C/min.
Tube Size High-purity quartz tube, 50 mm x 1400 mm; customized tube options should be confirmed.
Heating Zone Length 200 mm + 200 mm.
Constant Zone Length 200 mm.
Configuration Highlights
  • Split vacuum tube-furnace layout supports quick heating and cooling by moving the constant zone toward or away from the sample area.
  • The system is positioned for low-vacuum CVD and two-dimensional material preparation.
  • Atmosphere micro-adjustment and gas-pressure configuration should be confirmed for the target process.
APPLICATION SCOPE: Thin-film deposition, two-dimensional material growth, semiconductor-material preparation and atmosphere-controlled laboratory process development.
PACKAGING: The equipment is prepared with protective inner materials and reinforced outer packaging for handling, storage and delivery.
IMPORTANT NOTICE: Please confirm tube size, heating-zone arrangement, gas-flow channels, vacuum pump package, power supply and required accessories before quotation.
