Store the injector at 15–40 °C to maintain electronic stability and accuracy. Use only with electrolyte-compatible wetted materials to prevent corrosion and contamination.

• Temperature and Humidity Control: Operate and store within 15–40 °C and avoid condensing humidity to prevent electronic drift and internal fogging.
• Power Supply Safety: Supply only DC 3.6V at 700 mA to avoid overvoltage damage to the digital circuitry.
• Electrolyte Handling Precautions: Use in a well-ventilated area or glovebox to prevent inhalation of flammable electrolyte vapors.
• Cleaning and Maintenance: Rinse all fluid-contact parts with compatible solvent after each use to prevent dried electrolyte residue and seizure of the plunger.
• Atmospheric Hazard Avoidance: Do not operate in explosive atmospheres due to the risk of spark from the electrical components and battery.

Attach a clean needle and set the desired volume on the digital display. Draw electrolyte into the syringe, then position and inject at the battery cell fill port.

Required Equipment: Atomfair Digital Injector (50mL), Luer-lock needle (compatible gauge), Electrolyte reservoir (sealed container), Lithium battery cell (prepared for filling)

1. Attach Needle
   Attach a clean, compatible luer-lock needle to the injector outlet and tighten gently.
2. Set Volume
   Set the desired injection volume on the digital display using the control buttons.
3. Draw Electrolyte
   Draw electrolyte into the syringe by activating the fill function until the plunger reaches the volume mark.
4. Position at Cell
   Position the needle tip at the battery cell fill port and ensure a tight seal to prevent leakage.
5. Inject Electrolyte
   Activate the injection mode to dispense electrolyte at a controlled rate while monitoring the digital readout.
6. Verify Delivery
   Monitor the digital readout to confirm complete volume delivery before withdrawing the needle.
7. Clean and Cap
   Wipe the needle tip with a lint-free cloth and cap the injector after use to prevent drying and contamination.

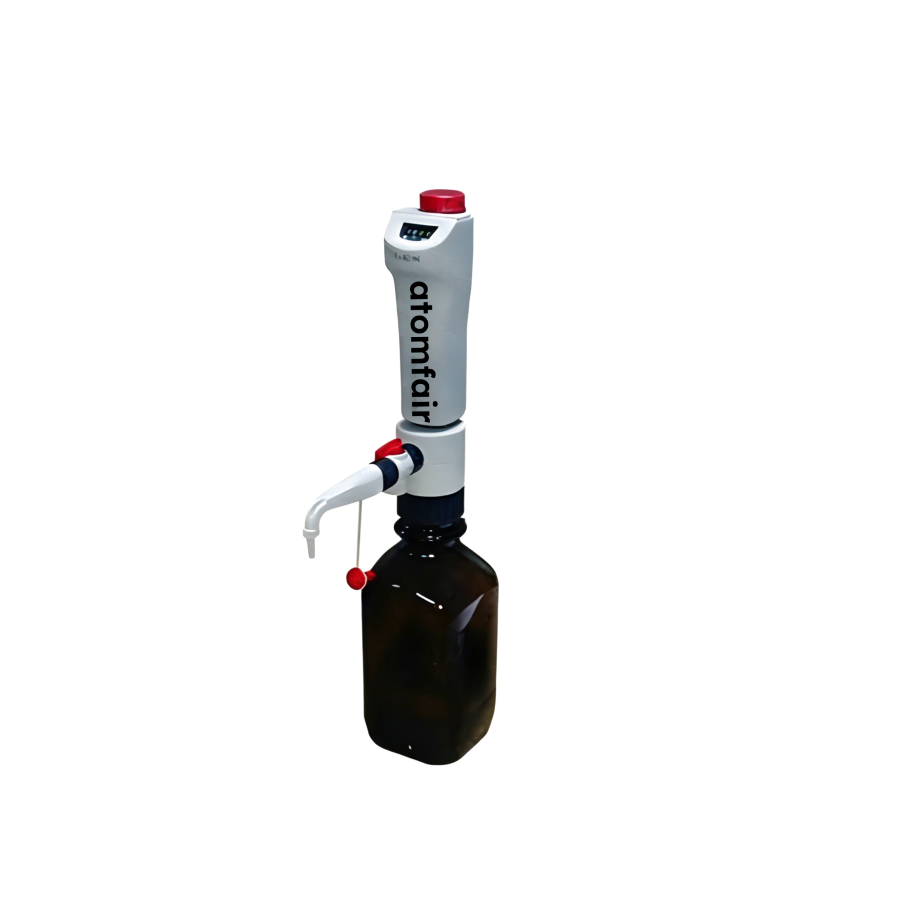

This digital injector offers high precision (±0.07% μL) for lithium battery electrolyte filling in a compact, battery-powered design, but its operating temperature is limited to 15–40°C and it requires a DC3.6V/700mA power source.

Positive

• High precision electrolyte dosing: Accuracy of ±0.07% μL ensures quantitative injection within Grade A error tolerance, critical for battery performance and safety.
• Portable and battery-powered: Compact size and long battery life enable use in confined spaces and off-grid locations, eliminating the need for a constant mains supply.

Trade-offs

• Restricted operating temperature range: The instrument is specified for 15–40 °C, which limits its use in unconditioned or extreme-temperature environments.
• Specific DC power requirement: Requires DC3.6V/700mA input, meaning the user must provide compatible batteries or a regulated power supply, adding infrastructure dependency.
