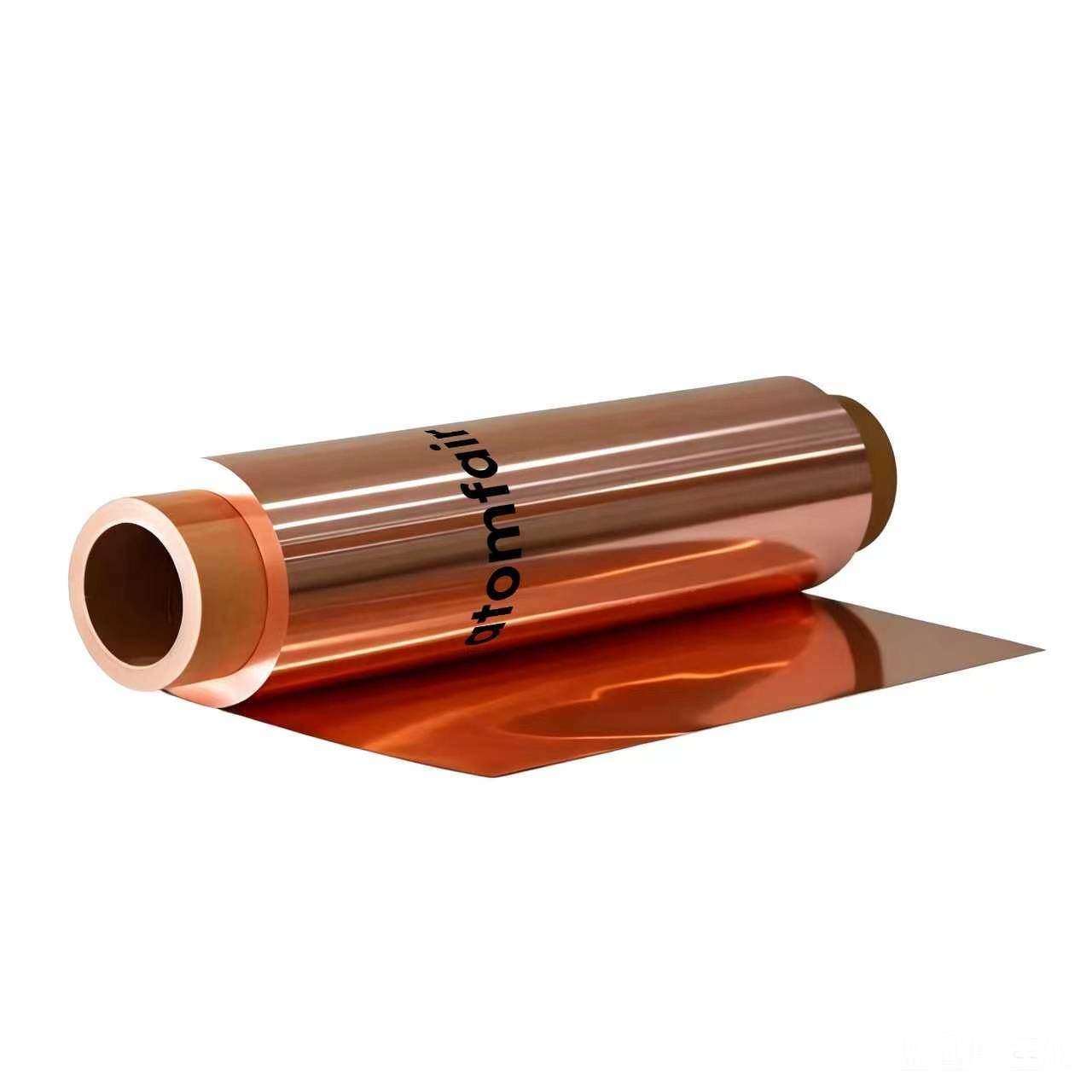

ATOMFAIR® a roll of carbon coated copper foil showing a smooth reddish-bronze metallic sheet extending from the roll.

Double-Sided Carbon Coated Copper Foil 10μm 200mm ATOMFAIR®

$139.95

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Double-sided carbon coated copper foil, 10 μm thick, 200 mm wide, battery grade for anode current collector. Enhanced conductivity and adhesion. Order now.

Quantity Price
1 – 4 $139.95
5 – 9 $179.95
10+ $159.95
SKU: AACOCUC000A3A0
Category: ,
Tags: ,
Brands:

Description

ATOMFAIR® DOUBLE SIDES CONDUCTIVE CARBON COATED COPPER FOIL (200 MM WIDE, 10 μM THICK)

RESEARCH GRADE MATERIAL

Product Overview
Engineered specifically for next-generation energy storage applications, Atomfair Double Sides Conductive Carbon Coated Copper Foil provides ultimate cell-to-cell consistency and serves as an immutable baseline testing control. By integrating an ultra-thin 10 μm high-purity foil matrix with symmetrical carbon functional layers, this architecture achieves complete variable elimination during anode and cathode electrochemical assessments. It offers an advanced electrolyte validation platform, effectively addressing commercial constraints by optimizing conductive copper foil price points for high-throughput institutional workflows.

Technical Specifications

PARAMETER DETAILS
1. Core Device & Electrochemical Design
Material Composition High-Purity Copper Foil with Double-Sided Conductive Carbon Coating
Primary Application Anode or cathode current collector for high-performance battery research
2. Dimensional & Packaging Parameters
Roll Width 200 mm
Total Thickness 10 μm
3. Quality Standards & Sourcing
Manufacturing Rules Processed under strict ISO standard compliant conditions
Alternative Options Custom widths and thicknesses available upon direct request. Contact support team for special dimensional specifications.


Key Features & Advantages
  • Symmetrical Double-Sided Coating: Symmetrical carbon functional layers deposited on both surfaces dramatically optimize overall electrical conductivity and electron transfer kinetics.
  • Precision Engineered Thickness: Engineered 10 μm profile offers an ideal operational balance between high flexibility and rugged structural integrity during assembly.
  • Versatile Wide Format Architecture: Generous 200 mm width provides complete configuration versatility across both initial experimental cell configurations and industrial prototyping.
  • Robust Mechanical Tensile Strength: Enhanced mechanical durability prevents substrate tearing or cracking during winding, cell packaging, and continuous cyclic operations.
  • Interfacial Adhesion Optimization: Specialized carbon film acts as a superior binding anchor, facilitating ultimate adhesion with active slurry chemistries.

APPLICATION SCOPE: Premium anode or cathode current collector optimized for lithium-ion R&D, structural material science validation, and electrochemical prototype development.
PACKAGING: Supplied in continuous uniform research rolls or modular sheets. Please specify exact geometric requirements upon custom order placements.
IMPORTANT NOTICE: This material is highly sensitive to atmospheric humidity. To successfully resolve how to prevent copper foil oxidation, store rolls strictly in a cool, dry, and hermetically sealed environment before initiating thermal coating sequences.

TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

This conductive carbon coated copper foil must be stored in a cool, dry environment to prevent oxidation and preserve coating integrity. Avoid exposure to moisture and mechanical abrasion during handling to maintain electrical conductivity and adhesion properties.

  • Storage Conditions: Store in a cool, dry environment, ideally below 25°C and below 50% relative humidity, to prevent oxidation of copper and degradation of the carbon coating.

How does the 10 μm thickness of this carbon-coated copper foil affect its mechanical properties compared to thicker foils?

The 10 μm thickness provides an optimal balance between flexibility and structural integrity, as stated in the product description. This thickness maintains good tensile strength and durability, ensuring stability during battery assembly and operation while remaining easy to handle. Compared to thicker foils, it offers enhanced flexibility without sacrificing the necessary mechanical strength for reliable integration into battery designs.

Is this double-sided carbon coated copper foil compatible with both cathode and anode active materials in lithium-ion battery research?

Yes, the foil is designed for use as both anode and cathode current collector in battery research, as specified in the applications section. The double-sided conductive carbon coating enhances electrical conductivity and promotes better adhesion with active materials on both sides, making it suitable for various electrode configurations in lithium-ion and other battery technologies.

What are the recommended storage conditions for this carbon-coated copper foil to prevent oxidation and ensure performance?

The foil should be stored in a cool, dry environment to prevent oxidation and maintain quality, as recommended in the packaging and storage section. Because the copper substrate is prone to oxidation, especially when coated with carbon, moisture and heat can degrade the conductive coating and affect adhesion. Proper storage ensures the double-sided carbon coating remains intact and the foil retains its enhanced conductivity for battery research applications.

This double-sided carbon coated copper foil provides enhanced electrical conductivity and adhesion for battery anode/current collector applications, with a 10 μm thickness balancing flexibility and strength. However, it requires cool, dry storage to prevent oxidation and customization for non-standard dimensions must be arranged via supplier contact.

Positive

  • Double-sided conductive coating: Carbon coating on both sides improves electrical conductivity and electron transfer, directly benefiting battery performance.
  • Optimal thickness balance: At 10 μm, the foil maintains structural integrity while offering flexibility for easy handling and integration into battery designs.

Trade-offs

  • Oxidation-sensitive storage: Must be stored in a cool, dry environment to prevent oxidation and maintain material quality, requiring appropriate laboratory conditions.
  • Custom dimensions require contact: Non-standard width or thickness must be requested via supplier communication; otherwise, only the default 200 mm wide, 10 μm thick specification is shipped.

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).

Additional information

Weight 1.5 kg
Dimensions 20 × 20 × 30 cm
