This vacuum drying oven requires proper electrical grounding and should not be operated in explosive atmospheres. The double-layer tempered glass door must be protected from thermal shock and impact to maintain safety integrity.

• Electrical Safety: Connect the oven to a dedicated power outlet matching the specified voltage and ensure proper grounding.
• Thermal Hazard: Avoid contact with external surfaces during operation as they may reach elevated temperatures.
• Vacuum Integrity: Inspect the silicone gasket regularly for degradation and replace if necessary to maintain vacuum seal.
• Ventilation: Operate the oven in a well-ventilated area to dissipate any fumes from heated materials.

Follow these steps to safely initialize and operate the vacuum drying oven for material drying or heat treatment. Ensure all safety checks are completed before powering the unit.

Required Equipment: Vacuum pump

1. Inspect Door Seal
   Inspect the door seal and silicone gasket for damage or debris before each use.
2. Connect Vacuum Pump
   Connect the vacuum pump to the oven's vacuum port and ensure a tight seal.
3. Set Parameters
   Set the desired temperature and vacuum level using the control panel within the specified ranges.
4. Load Samples
   Load samples into the chamber ensuring even spacing for uniform heat and vacuum distribution.
5. Start Operation
   Close and latch the door, then start the vacuum pump followed by the heating element.

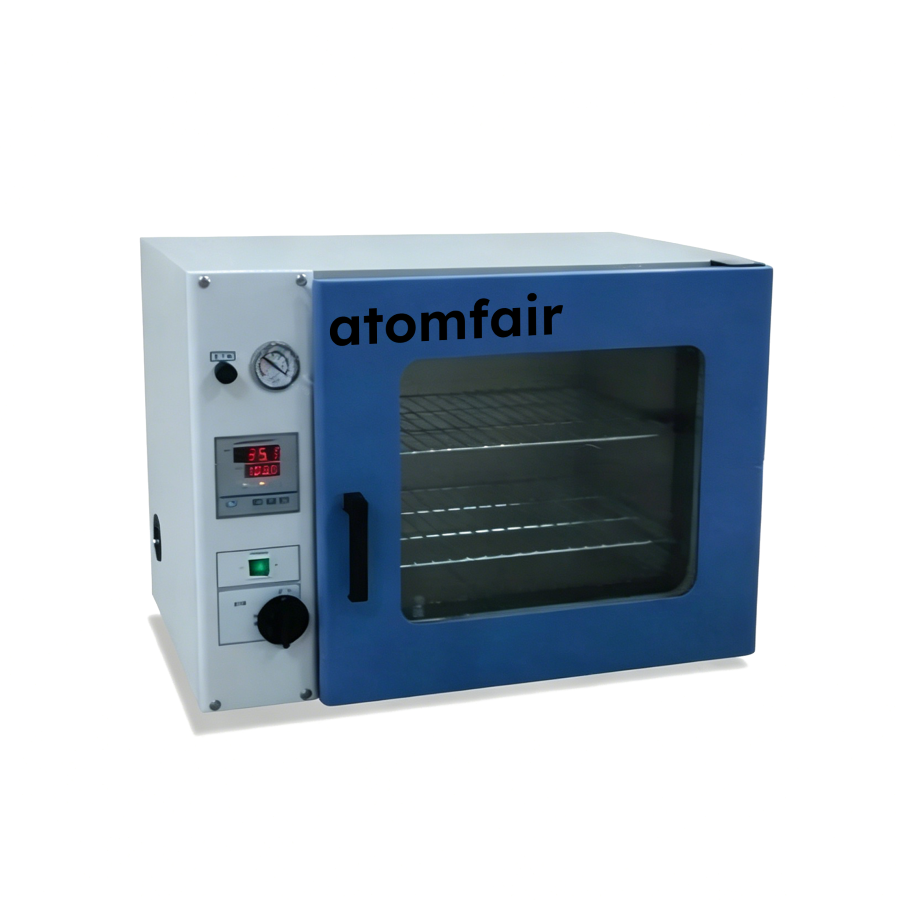

The Atomfair-VacDry729 50L vacuum drying oven offers a rectangular SUS304 chamber that maximizes usable internal space and a double-layer tempered explosion-proof glass door for safe observation. However, its 100 kg weight requires sturdy lab benching and the ambient +10°C minimum temperature limits low-temperature drying applications.

Positive

• Maximized usable internal space: The rectangular working chamber geometry more efficiently utilizes the 50 L capacity compared to cylindrical designs, providing greater flexibility for sample placement and batch processing.
• Safe visual access with double-layer glass: Double-layer tempered explosion-proof glass door allows continuous observation of samples under vacuum without compromising safety or thermal stability.

Trade-offs

• Elevated minimum temperature: The oven cannot operate below ambient +10°C, preventing its use for low-temperature vacuum drying or heat-sensitive material processing near room temperature.
• High unit weight requires robust support: At 100 kg, the oven demands a vibration-resistant, level benching or floor placement; relocation and installation require dedicated lifting equipment or multiple personnel.
