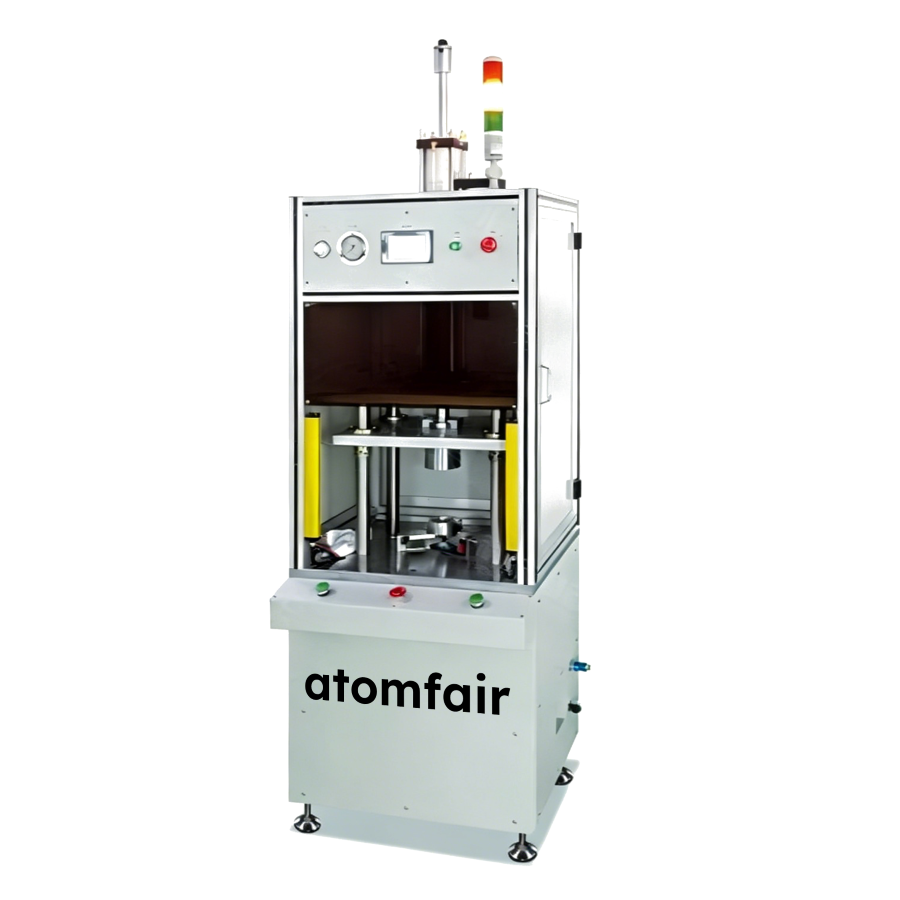

ATOMFAIR® MSM-419 industrial white precision molding sealing machine with yellow safety light curtains and top tower light on white background.

Precision Molding Sealing Machine MSM-419 0.5kW ATOMFAIR®

$3,000.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Atomfair MSM-419 precision sealer for cylindrical cells. Features high-precision guides, adjustable parameters, light curtain. 0.5-0.7MPa/220V/0.5kW. Order now.

SKU: AFMSCNQI882
Category: ,
Brands:

Description

ATOMFAIR® MSM-419 PRECISION MOLDING SEALING MACHINE

RESEARCH GRADE MATERIAL

Product Overview
The Atomfair-MSM-419 is a patented, independently developed molding, sealing, and crimping forming platform engineered specifically for advanced battery casings and supercapacitor shells. This heavy-duty machine guarantees premium gas tightness and hermetic quality without causing physical case damage or secondary expansion, delivering exceptional mechanical alignment, operational reliability, and validation integrity across strict pilot or industrial manufacturing frameworks.

Technical Specifications

PARAMETER DETAILS
1. Core Device & Mechanical Design
Product Model / Version Atomfair-MSM-419 / V2.0
Application Scope Cylindrical batteries, advanced supercapacitors (fully customizable on request)
Process Mechanisms Precision mold-type sealing, vertical crimping forming, and custom structural parameter adjustments
2. Power & Utility Supply Profile
Total Power Consumption 0.5 kW
Power Supply Grid Single-phase 220 V / 50 Hz
Pneumatic Air Supply Feed 0.5–0.7 MPa (Fully adjustable pressure monitoring)
3. Facility & Physical Metrics
Overall Dimensions L900mm × W900mm × H1800mm
Total Net Weight 500 kg
Manufacturing Rules Processed under strict ISO 9001 compliance conditions
Alternative Options Explore our related catalog or custom mechanical dimensions. For urgent technical custom requests or bulk inquiries, please contact our support team.

Key Features & Advantages
  • Mold-Type Sealing Matrix: Specially engineered mold array ensures uniform circumferential sealing pressure, yielding excellent air tightness with zero shell expansion or casing scratches.
  • High-Precision Linear Rails: Outfitted with high-durability linear guide rails to secure stable, friction-minimized, and highly accurate positioning downstrokes.
  • Dual-Stage Mechanical Sequence: Executes an optimized sequence of rapid cell feeding paired with slow, high-torque crimping to maximize forming and sealing aesthetics.
  • Fully Adaptive Configurations: Features fully independent digital adjustments for sealing height offsets, target pneumatic pressure, and pressure-holding timers to fit diverse product lots.
  • Automated Production Counter: Built-in digital counting tracking function simplifies batch tracing and continuous throughput metrics.
  • Active Optical Protection: Outfitted with fast-response safety light curtain arrays to establish complete, fail-safe protection barriers for operators.
  • Centralized PLC & Touch Screen: Managed via a central programmable controller integrated with an intuitive graphical dashboard for simple, responsive tool operation.
  • Compact Ergonomic Layout: Wrapped inside an elegant, clean geometric cabinet layout designed to save plant footprint while ensuring user-friendly accessibility.

APPLICATION SCOPE: Cylindrical battery mold crimping, supercapacitor airtight sealing, dual-stage compression forming, and non-destructive shell conditioning.
FACILITY REQUIREMENT: Pilot line or factory machinery floor deployment. System Net Weight: 500 kg. Verify space compressed air grid can deliver stable volumetric pressures.
IMPORTANT NOTICE: This equipment deploys intense multi-stage pneumatic forces. Always ensure the optical safety light curtains are completely clear of obstacles and that air supply pressure holds firmly at 0.5–0.7 MPa before configuring variable downforce parameters.

TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

This machine must be installed on a stable, level surface in a dry, clean environment to prevent component degradation and ensure operational safety. Electrical supply must match rated specifications (220V/50Hz) and compressed air must be within 0.5–0.7 MPa to avoid damage.

  • Environmental constraint: Avoid exposure to moisture or corrosive atmospheres to prevent pneumatic and electrical system failure.
  • Electrical safety: Use only a grounded 220V/50Hz power outlet to prevent electrical hazards and equipment damage.
  • Pneumatic pressure limit: Do not exceed the maximum air pressure of 0.7 MPa to avoid seal or component rupture.
  • Application constraint: Process only cylindrical batteries or supercapacitors of appropriate dimensions to maintain mold integrity.

This guide details the safe initialization and operation of the precision molding sealing machine for cylindrical batteries and supercapacitors. Follow these steps to achieve consistent sealing quality and avoid equipment damage.

Required Equipment: Compressed air supply (0.5–0.7 MPa), Grounded 220V/50Hz power outlet, Cylindrical battery or supercapacitor workpiece

  1. Connect utilities
    Connect the compressed air supply and verify the pressure gauge reads between 0.5 and 0.7 MPa.
  2. Power on machine
    Plug the power cord into a grounded 220V/50Hz outlet and turn on the main power switch.
  3. Set parameters
    Adjust the sealing height, pressure, and holding time using the touch screen interface according to the product specifications.
  4. Load workpiece
    Place the cylindrical battery or supercapacitor into the mold cavity, ensuring it is seated correctly.
  5. Activate sealing cycle
    Activate the machine via the start button and confirm the light curtain is unobstructed before the cycle begins.
  6. Unload sealed product
    Wait for the forming cycle to complete, then carefully remove the sealed battery or supercapacitor from the mold.

How does the adjustable sealing height, pressure, and holding time affect forming quality across different cylindrical battery and supercapacitor sizes?

The adjustable parameters allow optimization for various product geometries without compromising seal integrity. The machine uses mold-type sealing that prevents shell expansion and damage while ensuring uniform sealing and excellent air tightness, regardless of the specific dimensions. This flexibility is critical for R&D lines and multi-format production.

Can the Atomfair-MSM-419 handle non-standard cylindrical supercapacitor shell diameters, or is it restricted to standard battery sizes?

The machine is designed for cylindrical batteries and supercapacitors and is customizable on request to accommodate non-standard shell diameters. Its mold-type sealing mechanism and high-precision linear guide rails ensure stable, accurate sealing even for custom geometries. Users should specify dimensions at inquiry to confirm compatibility.

What are the compressed air and electrical infrastructure requirements for installing the Atomfair-MSM-419 in a laboratory or production environment?

The machine requires a compressed air supply of 0.5–0.7 MPa (adjustable) and a standard 220 V / 50 Hz electrical connection with 0.5 kW power draw. Its 500 kg weight requires a reinforced floor or sturdy benchtop, and the L900mm × W900mm × H1800mm footprint needs adequate clearance for operation and light curtain safety access.

The Atomfair-MSM-419 is a precision molding sealing machine for cylindrical batteries and supercapacitors, offering mold-type sealing with no shell expansion and high air tightness, but requires a compressed air supply of 0.5–0.7 MPa and 220V/50Hz power infrastructure.

Positive

  • Mold-type sealing without shell damage: The mold-type sealing mechanism prevents shell expansion and damage, ensuring uniform sealing and excellent air tightness for reliable battery and supercapacitor performance.
  • High-precision linear guide rails: High-precision linear guide rails provide stable and accurate sealing motion, contributing to consistent forming quality and repeatable results.

Trade-offs

  • Application limited to cylindrical cells: The machine is designed for cylindrical batteries and supercapacitors; adaptation to other form factors requires customisation, which must be requested separately.
  • Requires 220V/50Hz power supply: Operation depends on a 220V/50Hz single-phase electrical supply, which may not be standard in all laboratory or production environments and could necessitate a transformer or dedicated circuit.

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
