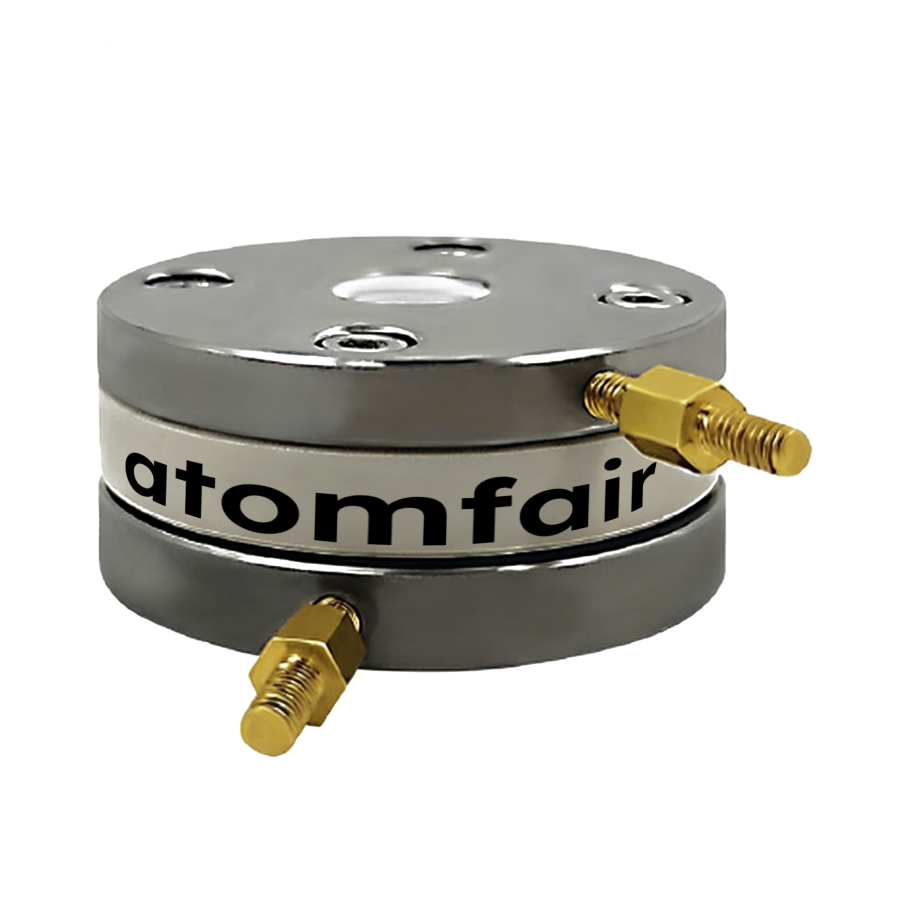

ATOMFAIR® MICROSCOPY TESTING FIXTURE FOR BATTERIESRESEARCH GRADE MATERIAL
|
|||||||||||||||||||||||
|
|||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
This fixture is designed for secure mounting of battery samples during microscopy analysis. It requires careful sample preparation and environmental storage to maintain performance.
- Sample Height Limit: The fixture accommodates samples up to 20 mm in height to ensure proper clamping.
- Adjustable Clamp Mechanism: Adjustable clamps must be tightened uniformly to avoid sample damage or distortion.
- Storage Environment: Store the fixture in a controlled environment to prevent corrosion or mechanical degradation.
- Personal Protective Equipment: Use appropriate PPE when handling the fixture to avoid contamination of sample surfaces.
This procedure describes the mounting and preparation of a battery sample in the microscopy fixture. Proper execution ensures stable imaging and accurate results.
Required Equipment: Atomfair Microscopy Testing Fixture
- Position Sample
Position the battery sample centrally between the fixture's adjustable clamps. - Secure Clamps
Adjust the clamps gradually to secure the sample without applying excessive pressure. - Transfer to Microscope
Transfer the loaded fixture to the microscope stage and verify the sample alignment.
What is the maximum sample height the Atomfair Microscopy Testing Fixture can accommodate for stable cross-sectional imaging?
The fixture accommodates samples up to 20 mm in height, secured by adjustable clamps designed for stability during microscopy. This height capacity supports a range of battery electrode and electrolyte cross-sections while maintaining imaging precision.
Is the Atomfair Microscopy Testing Fixture compatible with both optical and electron microscopy without requiring additional adapters?
Yes, the fixture is explicitly designed for use with both optical and electron microscopy setups. Its customizable mounting options allow direct integration without the need for proprietary adapters, simplifying workflow transitions between imaging modalities.
What handling and storage conditions are required to preserve the Atomfair fixture's alignment precision for battery sample analysis?
Users must wear appropriate personal protective equipment when handling the fixture to avoid contamination. The fixture should be stored in a controlled environment (e.g., dry, dust-free) to prevent mechanical damage or misalignment, as its compact 1 kg design relies on structural integrity for repeatable results.
This fixture enables secure, adjustable mounting of battery samples up to 20 mm height for both optical and electron microscopy, but necessitates controlled storage conditions and is limited to smaller cell geometries.
Positive
- Adjustable clamps for varied sizes: The adjustable clamps allow secure mounting of battery samples with different dimensions, enabling versatile use across various cell formats and electrode configurations.
- Dual microscopy compatibility: Suitable for both optical and electron microscopy, this fixture supports multimodal imaging workflows without requiring separate mounting hardware for each technique.
Trade-offs
- Sample height limited to 20 mm: With a maximum sample height of 20 mm, the fixture cannot accommodate larger pouch cells, prismatic cells, or stacked assembly cross-sections common in advanced battery R&D.
- Requires controlled environment storage: The fixture must be kept in a controlled environment to prevent corrosion or dimensional drift, adding infrastructure requirements for lab storage and long-term stability.
