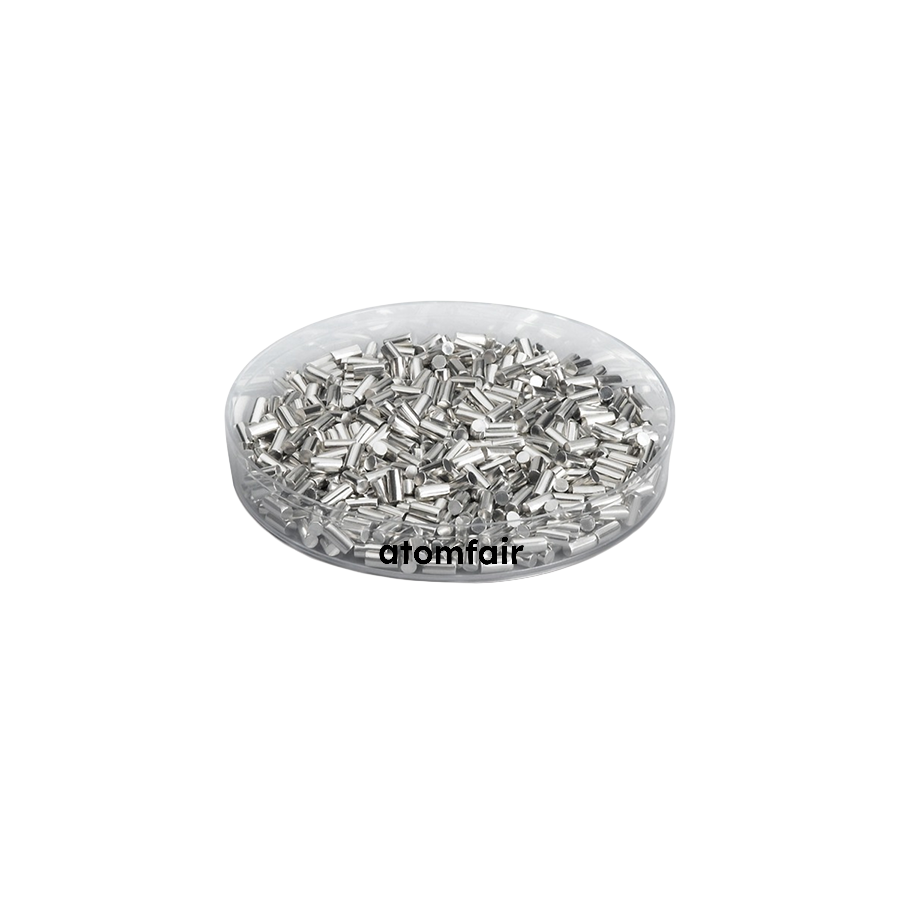

Aluminium-Silicon 99/1wt% Pellets 1-3 mm ATOMFAIR®

This alloy evaporation material requires deposition-source compatibility verification before use. The pellets must be handled in a controlled environment to prevent oxidation and contamination.

• Deposition Source Compatibility: Confirm that the evaporation source hardware (Mo/W/Ta boat, graphite/alumina crucible, or e-beam hearth) is compatible with the material's melting point of 640 °C and density of 2.69 g/cm³.
• Purity and Form Verification: Verify that the specified composition (Al 99 wt%, Si 1 wt%) and pellet size (1-3 mm) match the deposition process requirements before loading.

This procedure outlines the steps for loading and evaporating Al/Si 99/1wt% pellets in a vacuum deposition system. Proper source selection and handling are critical to achieve uniform film deposition.

Required Equipment: Mo/W/Ta boat or graphite/alumina crucible or e-beam hearth, Vacuum deposition system

1. Select Deposition Source
   Choose a compatible evaporation source (Mo/W/Ta boat, graphite/alumina crucible, or e-beam hearth) based on the material's melting point and your system configuration.
2. Load Pellets into Source
   Transfer the required quantity of 1-3 mm pellets into the selected source, ensuring even distribution for consistent evaporation.
3. Set Evaporation Parameters
   Configure the thermal or e-beam evaporation system to achieve the material's melting point of 640 °C, monitoring the Z-ratio of 1.00 for rate control.
4. Initiate Vacuum Deposition
   Evacuate the chamber to the required base pressure and begin the evaporation process, adjusting power to maintain a stable deposition rate.

This Al/Si 99/1wt% evaporation material in pellet form (1-3 mm) is suited for thermal or e-beam deposition of aluminium-silicon alloy films. Its RFQ-based purity and source compatibility require pre-order technical confirmation, making it appropriate for custom or research workflows where precise composition and deposition parameters are specified.

Positive

• Defined binary alloy composition: Al 99 wt%, Si 1 wt% ensures precise stoichiometry for thin-film deposition of Al/Si layers, critical for semiconductor and metallization applications.
• Multiple evaporation source compatibility: Suitable for Mo/W/Ta boats, graphite/alumina crucibles, or e-beam hearths with TiB2-BN liners, offering flexibility in deposition hardware selection.

Trade-offs

• Purity on RFQ basis: Total purity is not specified as a fixed value; buyers must request quotation for purity verification, adding a pre-order qualification step and potential lead time.
• Deposition process must be confirmed: Evaporation method and source hardware require RFQ confirmation before ordering, preventing immediate off-the-shelf purchase and requiring engineering consultation.
