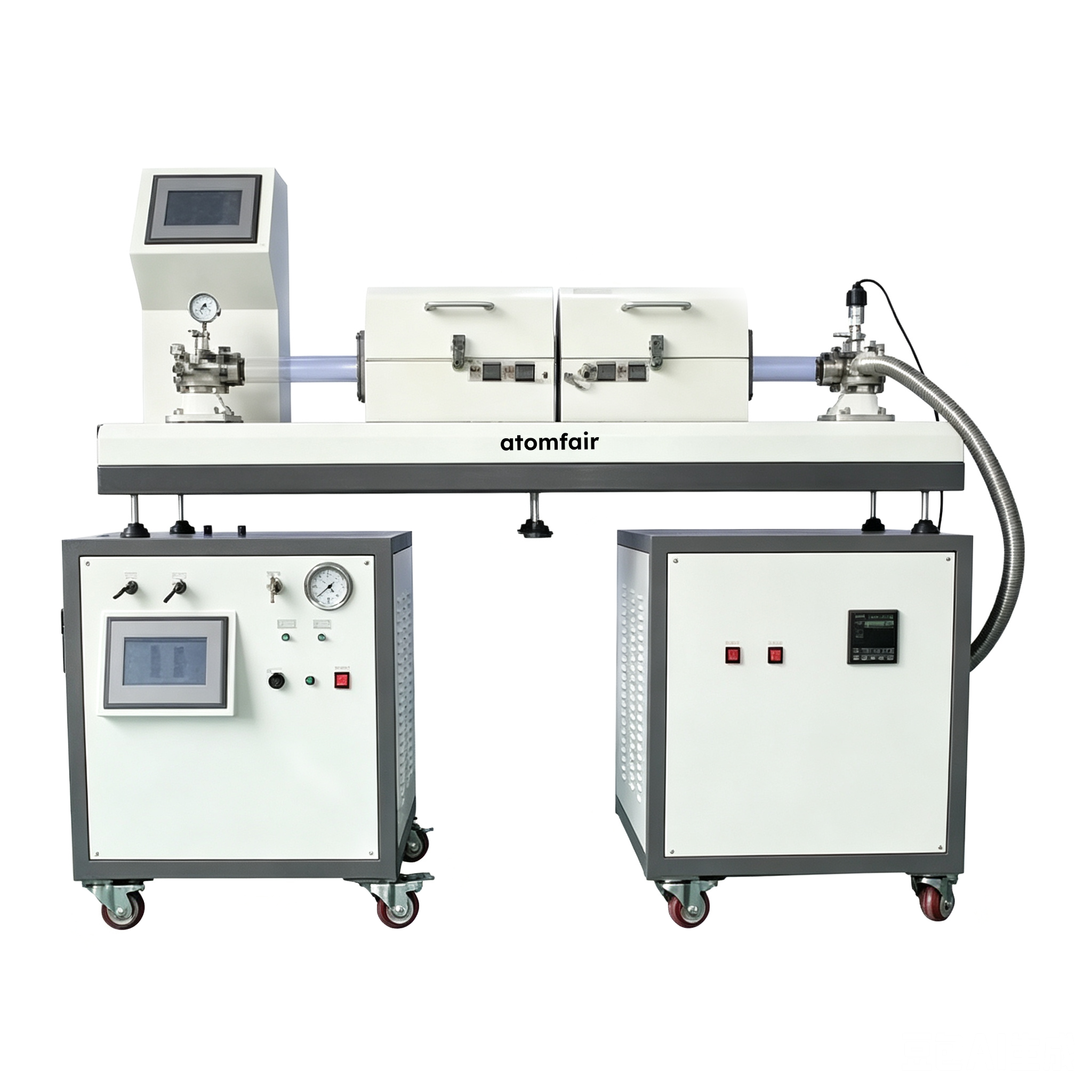

Advanced Multi-Function Two-Dimensional Materials Growth System, Dual 230 mm Heating Zones, 1200 °C

Advanced Multi-Function Two-Dimensional Materials Growth System, Dual 230 mm Heating Zones, 1200 °C

$6,500.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Advanced Multi-Function Two-Dimensional Materials Growth System, Dual 230 mm Heating Zones, 1200 °C is configured for two-dimensional material growth and low-vacuum CVD-style laboratory preparation workflows. This product is distinguished by advanced multi-function two-dimensional growing system and its process-specific configuration.

SKU: AF-TD-T-1200-2DMG-002I
Category:
Tags: , ,
Brands:

Advanced Multi-Function Two-Dimensional Materials Growth System, Dual 230 mm Heating Zones, 1200 °C
TWO-DIMENSIONAL MATERIAL GROWTH EQUIPMENT
Product Overview

Advanced Multi-Function Two-Dimensional Materials Growth System, Dual 230 mm Heating Zones, 1200 °C is configured for two-dimensional material growth and low-vacuum CVD-style laboratory preparation workflows.

This product is distinguished by advanced multi-function two-dimensional growing system and its process-specific configuration.

Confirm the tube size, heating-zone layout, gas-flow range, vacuum pump package, temperature-control configuration and accessories before quotation.
Technical Specifications
Parameter Specification / Available Values
Atomfair Model TD-1200-2I
Product Family Advanced Multi-Function Two-Dimensional Growing System
Tube Size Outer diameter 50 mm, optional.
Heating Zone Length 230 mm + 230 mm.
Constant Zone Length 80 mm + 80 mm, ±1 °C.
Working Temperature 100-1100 °C.
Maximum Temperature 1200 °C.
Rated Power 4 kW.
Gas Flow Range 100 sccm, 200 sccm and 500 sccm nitrogen options.
Configuration Highlights
  • Two independent sliding temperature-control sections provide two quick heating and cooling positions.
  • Vertical vacuum-flange structure and multi-joint layout support flexible configuration changes.
  • Aircraft-aluminum flange support is designed for installation convenience and corrosion resistance.
APPLICATION SCOPE: Thin-film deposition, two-dimensional material growth, semiconductor-material preparation and atmosphere-controlled laboratory process development.
PACKAGING: The equipment is prepared with protective inner materials and reinforced outer packaging for handling, storage and delivery.
IMPORTANT NOTICE: Please confirm tube size, heating-zone arrangement, gas-flow channels, vacuum pump package, power supply and required accessories before quotation.
LABORATORY PROCUREMENT SUPPORT
For model selection, configuration matching, power supply confirmation or quotation review, contact our technical sales team.
E-MAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD excl. heavy equipment). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
