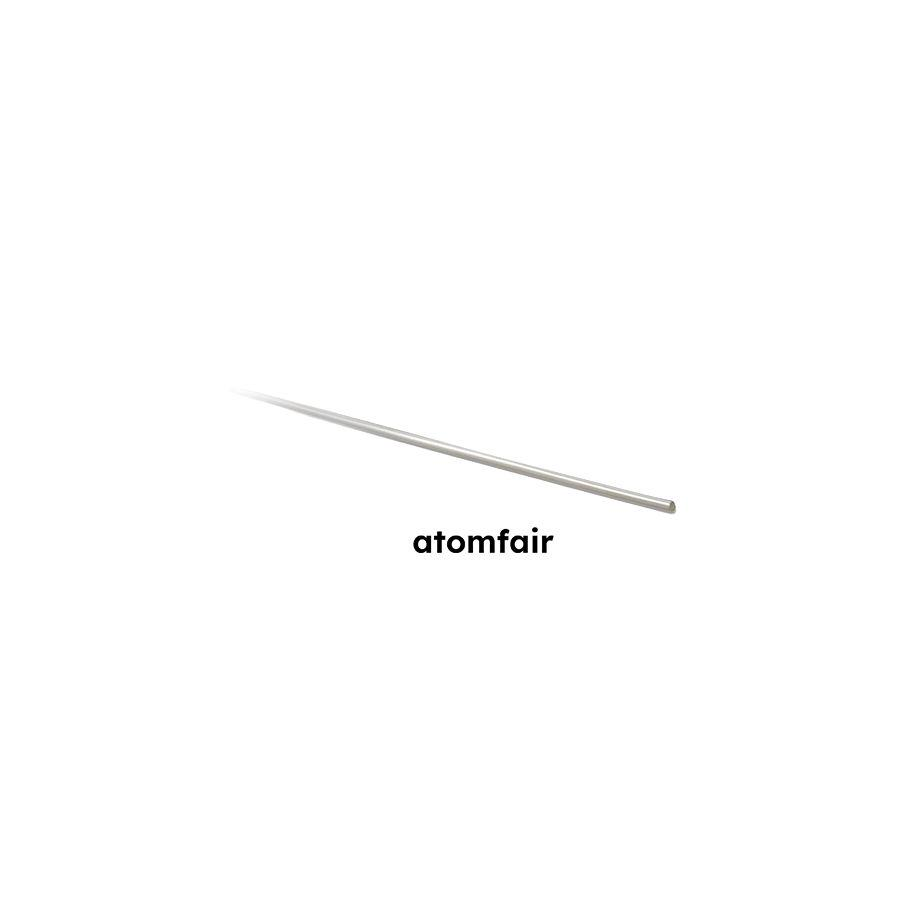

Zinc (Zn) Evaporation Material, Wire, 99.99%, Dia. 2.0 mm
Product Type: Pure Metal Evaporation Material
Research-grade laboratory product
|
|||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For material selection, deposition-source matching, pack-size confirmation or quotation support, contact our technical sales team.
INQUIRY: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
This product is a pure metal evaporation material for vacuum thin-film deposition. The wire must be loaded into a compatible evaporation source and processed under vacuum with strict adherence to material-specific parameters.
- Deposition Source Compatibility: The wire must be used with thermal/resistive evaporation sources such as W/Mo/Ta filament, basket, coil, or boat.
- Process Route Matching: The evaporation process must be matched to the material's melting point (420°C), density, and Z-ratio to achieve desired film properties.
- Pre-Installation Confirmation: Confirm the wire diameter (2.0 mm), purity grade (99.99%), and pack size against the deposition system's source geometry before loading.
How does the 99.99% purity specification of this zinc wire influence thin film quality compared to lower purity grades?
The 99.99% purity ensures minimal metallic contamination, which is critical for applications requiring high electrical conductivity or optical transparency. The source lists this as a standard high-purity grade, enabling comparison with RFQ-controlled grades for more demanding applications.
What evaporation source configurations are compatible with this 2.0 mm diameter zinc wire?
This zinc wire is compatible with thermal/resistive evaporation using tungsten, molybdenum, or tantalum filaments, baskets, coils, or boats. The 2.0 mm diameter wire form is designed for easy loading into these sources.
What is the melting point of this zinc evaporation material and what infrastructure considerations are needed for the evaporation process?
The melting point is 420°C, requiring a thermal/resistive evaporation source capable of reaching this temperature. Zinc's relatively low melting point means it can be evaporated using standard W/Mo/Ta sources without specialized high-temperature equipment. The density of 7.14 g/cm³ and Z-ratio of 0.514 should be considered for thickness monitoring.
This Zinc (Zn) evaporation material is supplied as a 99.99% pure wire with 2.0 mm diameter, intended for thermal/resistive evaporation using W/Mo/Ta sources. The low melting point (420°C) and fixed wire geometry impose specific process and hardware matching requirements that must be confirmed prior to deployment.
Positive
- High purity 99.99% specification: The 99.99% purity grade enables reproducible thin-film deposition for research applications where contamination control is critical, and supports direct comparison with standard and high-purity grades.
- Compatible with common evaporation sources: The wire form (2.0 mm diameter) is designed for use with W/Mo/Ta filament, basket, coil, or boat sources, offering flexibility in thermal/resistive evaporation setups.
Trade-offs
- Low melting point requires process control: With a melting point of 420°C, zinc evaporates at relatively low temperatures, demanding careful power regulation to avoid rapid sublimation or source wetting issues during deposition.
- Fixed wire diameter limits source fit: The 2.0 mm wire diameter is not adjustable; buyers must verify that their specific source geometry (filament coil ID, boat channel width) can accommodate this dimension for consistent loading.
Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.
To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.
Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD excl. heavy equipment). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
