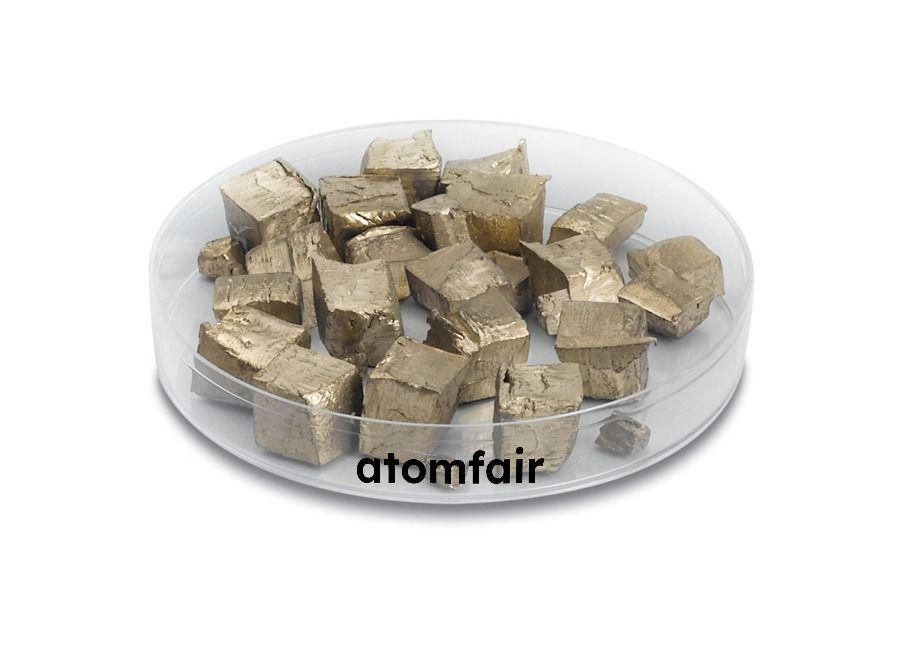

Ytterbium (Yb) Evaporation Material, Pieces, 99.9%, 1-10 mm
Product Type: Pure Metal Evaporation Material
Research-grade laboratory product
|
|||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For material selection, deposition-source matching, pack-size confirmation or quotation support, contact our technical sales team.
INQUIRY: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
This ytterbium evaporation material requires specific deposition source hardware and process parameters to achieve consistent thin-film results. The material's melting point, density, and Z-ratio must be matched to the evaporation system for accurate film thickness monitoring and deposition control.
- Deposition Source Compatibility: The evaporation source must be configured with Ta/W boat, Ta liner, or water-cooled e-beam hearth with liner to avoid material contamination or source failure.
- Evaporation Method Requirement: E-beam or thermal/resistive evaporation by RFQ is required, and the process route must be matched to the material's melting point and film requirements.
- Size and Form Constraint: The pieces must be within the 1-10 mm size range to ensure consistent loading and evaporation behavior in the deposition source.
- Procurement Verification: Model, purity, form, size range, pack size, and deposition-source compatibility must be confirmed before quotation to avoid operational mismatches.
What is the Z-ratio of ytterbium evaporation material and why is it important for deposition monitoring?
The Z-ratio of Yb is 1.13, as specified in the technical data. This parameter is used in quartz crystal microbalance (QCM) sensors to correct the measured film thickness for the material's acoustic impedance. Accurate Z-ratio input is essential for precise control of deposited film thickness during e-beam or thermal evaporation.
Which evaporation source methods and liners are compatible with ytterbium pieces?
Ytterbium pieces can be evaporated using e-beam or thermal/resistive evaporation methods. Recommended source hardware includes Ta/W boat, Ta liner, or water-cooled e-beam hearth with liner. The specific choice should be confirmed via RFQ to match the deposition system and material behavior.
What documentation and safety data should be reviewed before ordering ytterbium evaporation material?
Before ordering, confirm the certificate of analysis, safety data sheet, shipment conditions, and export requirements. The product is supplied as 99.9% pure Yb pieces in 1-10 mm size, and these documents should be matched to your laboratory's handling and storage protocols. Contact technical sales for RFQ support.
Ytterbium (Yb) evaporation material supplied as 99.9% pure pieces in 1-10 mm size range, with pack sizes from 25g to 1kg, intended for e-beam or thermal evaporation using Ta/W boat or water-cooled e-beam hearth. The material requires user confirmation of deposition source compatibility and may require RFQ for higher purity grades.
Positive
- Defined material identity and purity: Ytterbium (Yb) with 99.9% purity is explicitly specified, enabling clear procurement matching and direct comparison against standard, high-purity, or RFQ-controlled grades for deposition process alignment.
- Scalable pack sizes for R&D to pilot: Available in 25g, 100g, 500g, and 1kg packs, allowing researchers to use identical material specifications across small-scale experiments and larger production runs without changing lot properties.
Trade-offs
- 99.9% purity may not meet ultra-high requirements: The standard 99.9% purity grade is suitable for general applications, but users requiring higher purity must request a custom RFQ-controlled grade, as the product does not pre-validate higher purity levels.
- Deposition source compatibility must be verified: The material is compatible with Ta/W boat, Ta liner, or water-cooled e-beam hearth only after RFQ confirmation; buyers must independently verify evaporation source geometry and process route before ordering.
