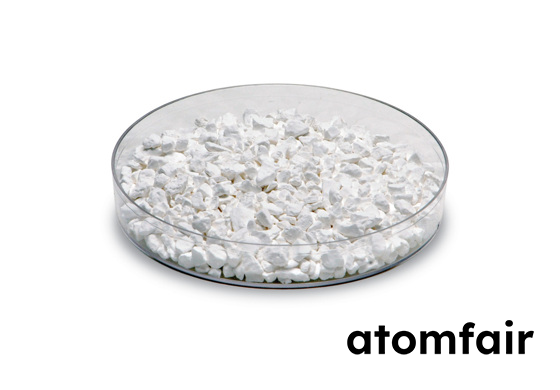

Yttrium Oxide (Y2O3) Evaporation Material, Pieces, 99.99%, 18-38 nm
Product Type: Compound Evaporation Material
Research-grade laboratory product
|
|||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For material selection, deposition-source matching, pack-size confirmation or quotation support, contact our technical sales team.
INQUIRY: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
This material requires e-beam evaporation using specific liner or boat materials to prevent contamination during deposition. The pieces size range of 18-38 nm must be compatible with the source crucible geometry to avoid bridging and ensure uniform evaporation.
- Source Compatibility: Use an e-beam hearth with a graphite, Al2O3, or BN liner, or a tungsten, molybdenum, or tantalum boat.
- Process Route: E-beam evaporation is the preferred method, while thermal evaporation requires a formal RFQ review.
- Physical Form: The pieces form with 18-38 nm particle size must be loaded into the source without bridging or agglomeration.
- Melting Point: The material's melting point of 2410°C requires adequate heating power and precise temperature control.
- Z-Ratio: A Z-ratio of 1.00 simplifies thickness monitoring using a quartz crystal microbalance.
Is E-beam or thermal evaporation more suitable for Y2O3 pieces in the 18-38 nm size range?
E-beam evaporation is the preferred method for this Y2O3 material, with thermal evaporation available only by RFQ. E-beam performance is rated as Good, and the recommended setup uses an E-beam hearth with a graphite, Al2O3, or BN liner, or a W/Mo/Ta boat. The 18-38 nm pieces are sized for direct source loading in E-beam systems.
Which liner or boat materials are compatible with Y2O3 evaporation to avoid contamination?
For E-beam evaporation, compatible liners include graphite, Al2O3, and BN; alternatively, W/Mo/Ta boats can be used. Sheet2 hardware specifically lists graphite and tungsten as compatible materials. These choices minimize chemical reaction or contamination during deposition at the material's melting point of 2,410 °C.
What pack size and minimum order quantity should I select for initial Y2O3 deposition trials?
The minimum order quantity is 25 g, with available pack sizes of 25 g, 100 g, 500 g, and 1 kg. Indicative pricing is USD 190 for 25 g, scaling to USD 1200 for 1 kg. Buyers should confirm deposition source geometry and required quantity before quotation to match trial or production run needs.
Yttrium Oxide (Y2O3) evaporation material in pieces form with 99.99% purity and 18-38 nm particle size is evaluated for E-beam evaporation in thin-film deposition, offering good performance with graphite, Al2O3, or BN liners, but requiring careful source hardware matching and handling due to high melting point (2,410°C) and density (5.01 g/cm³).
Positive
- High purity for consistent films: 99.99% purity specification enables reproducible thin-film stoichiometry and reduces contamination risk in sensitive optical or electronic coatings.
- Defined particle size for source loading: Pieces sized 18-38 nm facilitate uniform evaporation source packing and consistent deposition rates in E-beam systems.
Trade-offs
- High melting point requires robust hardware: Melting point of 2,410°C necessitates E-beam evaporation with compatible liners (graphite, Al2O3, BN) or refractory metal boats, limiting thermal evaporation without RFQ.
- Density and Z-ratio affect process tuning: Density of 5.01 g/cm³ and Z-ratio of 1.00 require precise quartz crystal monitor calibration for accurate film thickness control during deposition.
