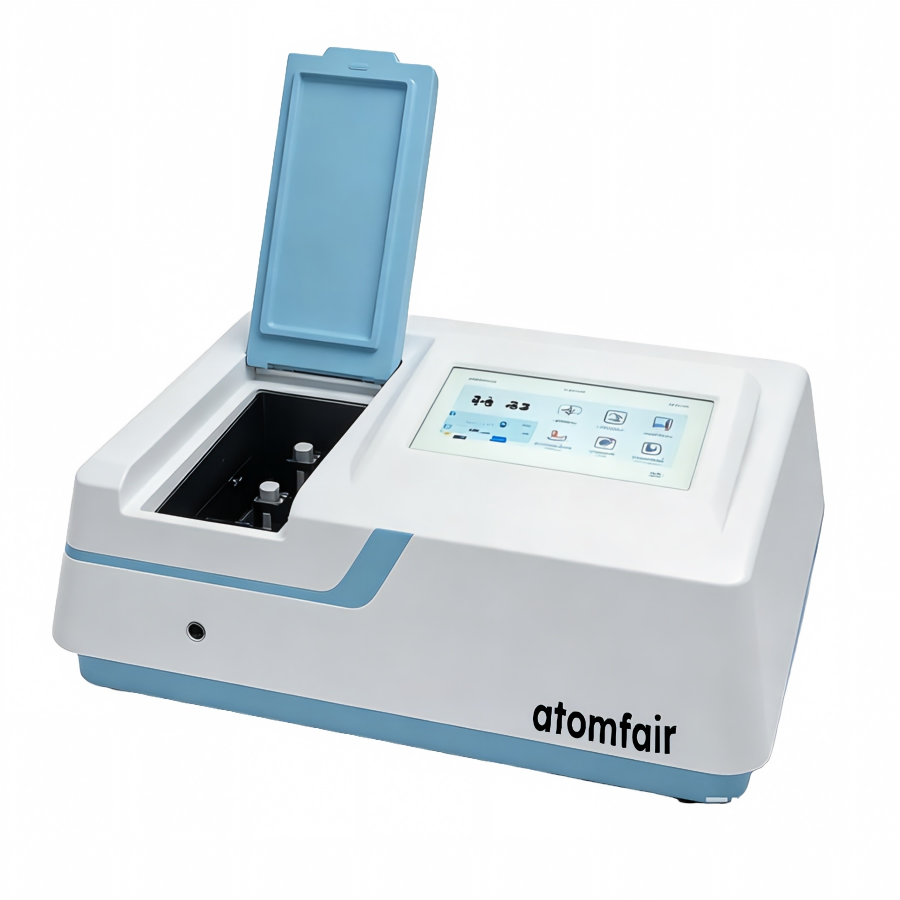

UV-Visible Spectrophotometer 190–1100 nm 1.0 nm ATOMFAIR®

UV-Visible Spectrophotometer 190–1100 nm 1.0 nm ATOMFAIR®

$5,660.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Double-beam UV-Visible spectrophotometer with 190–1100 nm range, 1.0 nm bandwidth, ±0.1 nm accuracy at 656.1 nm and 10.1-inch touchscreen. Order now.

SKU: AF-EI-S-UVVS-1901-S511
Category:
Tags: , , ,
Brands:

Description

SpectraCore UV 5101 UV-Visible Spectrophotometer, 190-1100 nm, 1.0 nm

Product Type: UV-Visible Spectrophotometer
Research-grade laboratory product

Product Overview

UV-Visible Spectrophotometer with 190-1100 nm, 1.0 nm and -0.3 to 3.0 A; 0-9999 C; 0-9999 F supports absorbance, transmittance and concentration measurements.

The specification table keeps optical system, light source, wavelength, photometric, sample holder, output and dimensional data visible for method selection and procurement review.

Performance Features
  • Wavelength range of 190-1100 nm defines visible or UV-visible measurement coverage.
  • Bandwidth of 1.0 nm supports method and resolution selection.
  • Photometric range of -0.3 to 3.0 A; 0-9999 C; 0-9999 F supports absorbance and transmittance workflows.
  • Wavelength accuracy of ±0.1 nm at 656.1 nm; ±0.3 nm full range supports measurement reliability review.
  • Stray light specification of ≤0.03%T at 220 and 360 nm; ≤0.02%T on selected models supports optical performance comparison.

Technical Specifications
Parameter Specification / Available Values
Atomfair Model AF-SPECUV5101-190TO1100NM
Optical system Double beam
Light source Japanese Hamamatsu deuterium lamp
Bandwidth 1.0 nm
Wavelength range 190-1100 nm
Wavelength accuracy ±0.1 nm at 656.1 nm; ±0.3 nm full range
Scanning speed High, medium and low
Wavelength repeatability ≤0.1 nm
Photometric range -0.3 to 3.0 A; 0-9999 C; 0-9999 F
Photometric repeatability ±0.001 A from 0-0.5 A; ±0.0015 A from 0.5-1 A
Stability ≤0.001 A/h at 500 nm
Stray light ≤0.03%T at 220 and 360 nm; ≤0.02%T on selected models
Sample holder 4-position cell holder, 10 mm; fixed long-cell holder option
Display 10.1-inch capacitive touch screen, 1024 x 600
Output USB port and printer port
Power requirement 110/220 V, 50/60 Hz, 120 W
Dimensions (L x W x H) 570 x 440 x 210 mm
Weight 20 kg

Selection and Use Notes
  • Confirm wavelength range, bandwidth, optical system and sample holder format before quotation.
  • Confirm accessory compatibility, optical path length, reference code and measurement workflow when ordering holders, lamps, filters or standards.
PROCUREMENT CHECK: Confirm model, working range, compatibility, consumables and required configuration before quotation.
DOCUMENTATION REVIEW: Product specifications and configuration details are reviewed against laboratory use requirements.
ACCESSORY MATCHING: Compatible accessories, replacement parts and consumables can be matched according to the selected configuration.
RFQ NOTE: Include the required model, configuration and quantity when requesting quotation support.
LABORATORY PROCUREMENT SUPPORT
For model selection, accessory matching, platform compatibility or configuration confirmation, contact our technical sales team.
E-MAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

The SpectraCore UV 5101 UV-Visible Spectrophotometer operates under specific electrical supply and sample compatibility conditions. Its measurement accuracy depends on consistent wavelength calibration and proper selection of optical path length.

  • Power Supply: The instrument requires a 110/220 V, 50/60 Hz electrical supply with a power consumption of 120 W.
  • Sample Holder Compatibility: Only 10 mm path length cuvettes or the optional fixed long-cell holder are compatible with the standard 4-position cell holder.
  • Wavelength Calibration: Wavelength accuracy is specified as ±0.1 nm at 656.1 nm and ±0.3 nm over the full range, requiring periodic calibration verification.

How does the stray light specification of ≤0.03%T at 220 and 360 nm affect the accuracy of high-concentration absorbance measurements on the SpectraCore UV 5101?

The stray light level of ≤0.03%T (≤0.02%T on selected models) limits the maximum measurable absorbance to approximately 3.0 A, as specified by the photometric range of -0.3 to 3.0 A. At absorbances near 3.0 A, stray light contributes a significant photometric error, and the instrument's photometric repeatability of ±0.0015 A from 0.5-1 A may degrade. Users should validate methods for samples with expected absorbance >2.5 A using reference standards.

Can the SpectraCore UV 5101 be interfaced with laboratory information management systems (LIMS) via its USB port?

Yes, the instrument includes a USB port and a printer port for data output. The USB port allows connection to a computer for data transfer and control, but the source does not specify the protocol or software compatibility. Users should verify that the instrument's USB interface supports their specific LIMS integration requirements, as the standard configuration may only provide raw data export.

What are the power supply and bench space requirements for installing the SpectraCore UV 5101?

The instrument requires a 110/220 V, 50/60 Hz power supply with a maximum power consumption of 120 W. It occupies a bench footprint of 570 x 440 mm (L x W) and weighs 20 kg, so a standard laboratory bench with adequate load capacity and a stable, vibration-free surface is recommended. The instrument should be operated in a dust-free environment with controlled temperature and humidity for optimal stability (≤0.001 A/h at 500 nm).

The SpectraCore UV 5101 is a double-beam UV-Vis spectrophotometer with a fixed 1.0 nm bandwidth and 190-1100 nm range, achieving ±0.1 nm wavelength accuracy at 656.1 nm and stray light ≤0.03%T, making it suitable for routine quantitative analysis; however, the fixed bandwidth and 3.0 A photometric upper limit constrain method flexibility and sample preparation.

Positive

  • Double beam optical system: The double beam design continuously corrects for lamp intensity drift and source fluctuations, enhancing long-term baseline stability and measurement reproducibility.
  • High wavelength accuracy and low stray light: Wavelength accuracy of ±0.1 nm at 656.1 nm and stray light ≤0.03%T at 220 and 360 nm ensure reliable peak identification and minimal photometric error in the UV region.

Trade-offs

  • Fixed 1.0 nm bandwidth: The spectral bandwidth is fixed at 1.0 nm and cannot be adjusted, limiting the instrument's suitability for methods requiring narrower or broader slit widths.
  • Limited photometric range: The absorbance range of -0.3 to 3.0 A requires dilution of highly absorbing samples near the upper limit, adding preparation steps and potential error.
