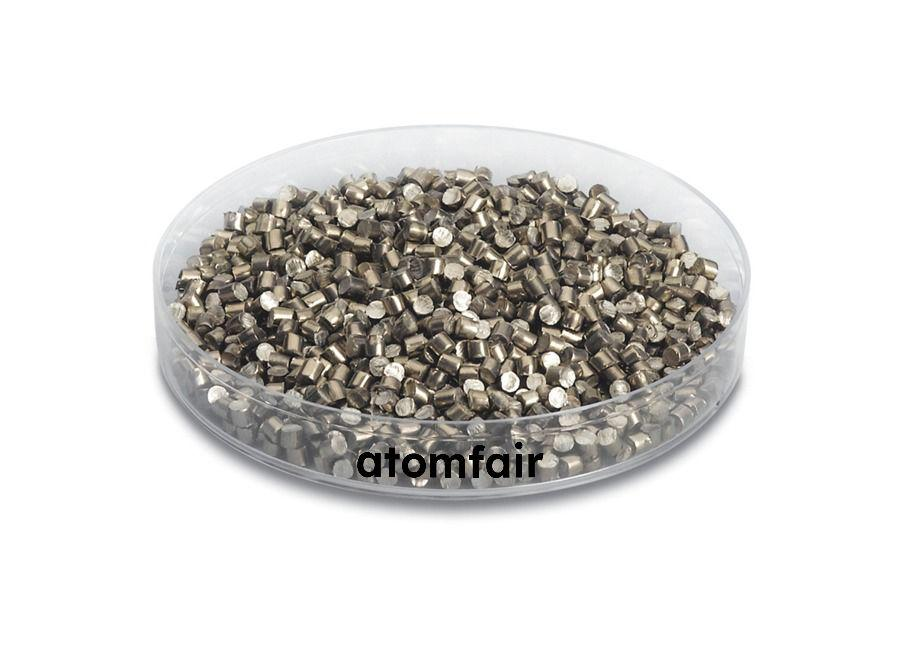

Tin (Sn) Evaporation Material, Shot, 99.999%, Shot 1-3 mm
Product Type: Pure Metal Evaporation Material
Research-grade laboratory product
|
|||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For material selection, deposition-source matching, pack-size confirmation or quotation support, contact our technical sales team.
INQUIRY: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
This material requires careful selection of evaporation source hardware and deposition method. Melting point and Z-ratio must be incorporated into process parameter calibration.
- Evaporation Source Compatibility: Use Mo/W/Ta boat or graphite/alumina crucible for thermal resistive evaporation; low-power e-beam is optional.
- Process Parameter Matching: Melting point of 232 °C and Z-ratio of 0.724 must be used to calibrate deposition rate and thickness monitoring.
- Deposition Source Hardware Alignment: Evaporation source geometry and power requirements must be matched to the material's thermal behavior and film requirements.
- Pre-Order Validation: Confirm model, purity, form, size range, and deposition-source compatibility before quotation to ensure proper application.
Which evaporation method is recommended for Atomfair’s 99.999% tin shot, and why is thermal/resistive preferred over e-beam?
Thermal/resistive evaporation is the preferred method for this tin shot material. The product specification explicitly lists thermal/resistive as preferred, with low-power e-beam as optional. Supporting parameters include a melting point of 232°C and a Z-ratio of 0.724, which are consistent with low-temperature resistive evaporation and indicate that e-beam may require careful power management to avoid overheating.
What evaporation source materials are compatible with Atomfair’s tin shot for vacuum deposition?
Compatible evaporation sources include molybdenum (Mo), tungsten (W), or tantalum (Ta) boats, as well as graphite or alumina crucibles. These are explicitly listed in the product specifications as suitable for use with this tin shot material, enabling direct integration into thermal/resistive or low-power e-beam systems.
What documentation and procurement checks should be reviewed before ordering tin shot evaporation material?
The product description advises reviewing the certificate of analysis, safety data sheet, shipment conditions, and export requirements against laboratory use requirements. Additionally, confirm model, purity, form, size range, pack size, and deposition-source compatibility before quotation to ensure the material meets the intended application.
Tin (Sn) evaporation material as 99.999% pure shot (1-3 mm) for vacuum thin-film deposition, with a melting point of 232°C and compatibility with Mo/W/Ta boats or graphite/alumina crucibles; available in 25g to 1kg packs.
Positive
- High purity 99.999% (5N): Enables low-contamination thin-film deposition for sensitive electronic or optical applications where trace impurities are unacceptable.
- Specified shot form 1-3 mm: Ensures consistent loading and controlled evaporation in thermal or low-power e-beam sources, reducing process variability.
Trade-offs
- Low melting point (232°C): Requires precise thermal management to avoid premature melting, spitting, or non-uniform evaporation rates during deposition.
- Source compatibility verification required: Deposition source hardware (boat or crucible material) must be confirmed compatible with tin wetting and evaporation behavior before procurement.
