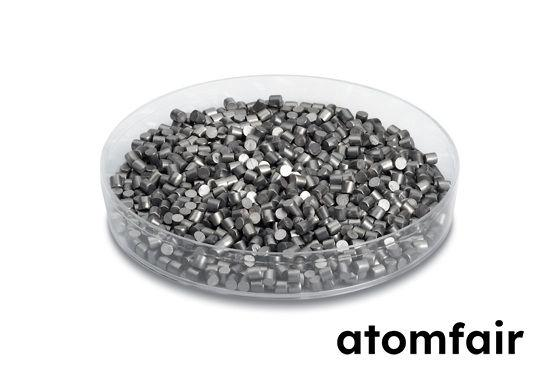

Tantalum (Ta) Evaporation Material, Pellets, 99.95%, 3-6 mm
Product Type: Pure Metal Evaporation Material
Research-grade laboratory product
|
|||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For material selection, deposition-source matching, pack-size confirmation or quotation support, contact our technical sales team.
INQUIRY: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
This tantalum pellet material requires e-beam evaporation using a water-cooled copper hearth with compatible graphite, Al2O3, BN, or Ta liners. The 3–6 mm pellet size and Z-ratio of 0.262 affect source loading and deposition rate monitoring.
- Evaporation Method Requirement: E-beam evaporation is required to achieve the melting point of 2,996 °C.
- Liner Compatibility: Use only graphite, Al2O3, BN, or Ta liners to avoid contamination or hearth damage.
- Pellet Size Constraint: The 3–6 mm pellet size must be verified for fit within the selected e-beam hearth or liner.
- Z-Ratio Calibration: The Z-ratio of 0.262 must be entered into the deposition controller for accurate thickness monitoring.
- Source Geometry Matching: Confirm the pellet form and size match the source geometry to ensure stable evaporation and material utilization.
Why is Tantalum evaporation material supplied as 99.95% pure pellets of 3–6 mm rather than other forms?
The 99.95% purity specification minimizes contamination in deposited thin films, while the pellet form (3–6 mm) is specifically sized for consistent loading and evaporation in e-beam systems using a water-cooled copper hearth. The high melting point (2,996 °C) and density (16.6 g/cm³) of Tantalum make pellet geometry critical for controlled melt and deposition without spitting or uneven vaporization.
Which liner materials are compatible with Tantalum pellets during e-beam evaporation?
The product description explicitly lists compatible liner materials as graphite, Al₂O₃, BN, or Ta. Using an incompatible liner can lead to chemical reaction or contamination at the high melting point of Tantalum (2,996 °C), so the liner must be selected from these verified options to maintain film purity and process stability.
How does the Z-ratio of 0.262 affect thickness monitoring during Tantalum e-beam evaporation?
The Z-ratio of 0.262 is used in quartz crystal microbalance (QCM) thickness monitors to correct for the acoustic impedance mismatch between the deposited Tantalum film and the quartz crystal. A Z-ratio far from 1.0 means the tooling factor must be calibrated specifically for Tantalum to avoid systematic errors in film thickness measurement; this value is provided to support accurate deposition control in high-purity thin-film applications.
This tantalum evaporation material in pellet form with 99.95% purity and 3–6 mm size is optimized for e-beam deposition of high-melting-point metal films, but requires careful thermal management and thickness monitor calibration due to its high density and melting point.
Positive
- High purity and specified pellet form: 99.95% purity and 3–6 mm pellet size ensure reproducible deposition conditions and source loading consistency for thin-film workflows.
- Flexible pack size options: Available in 25g, 100g, 500g, and 1kg packs, allowing scaling from R&D experiments to pilot production volumes.
Trade-offs
- High melting point requires e-beam evaporation: Melting point of 2,996°C necessitates e-beam evaporation hardware and careful thermal management; not suitable for thermal evaporation sources.
- High density and Z-ratio affect thickness monitoring: Density of 16.6 g/cm³ and Z-ratio of 0.262 require recalibration of quartz crystal microbalance monitors for accurate film thickness control.
