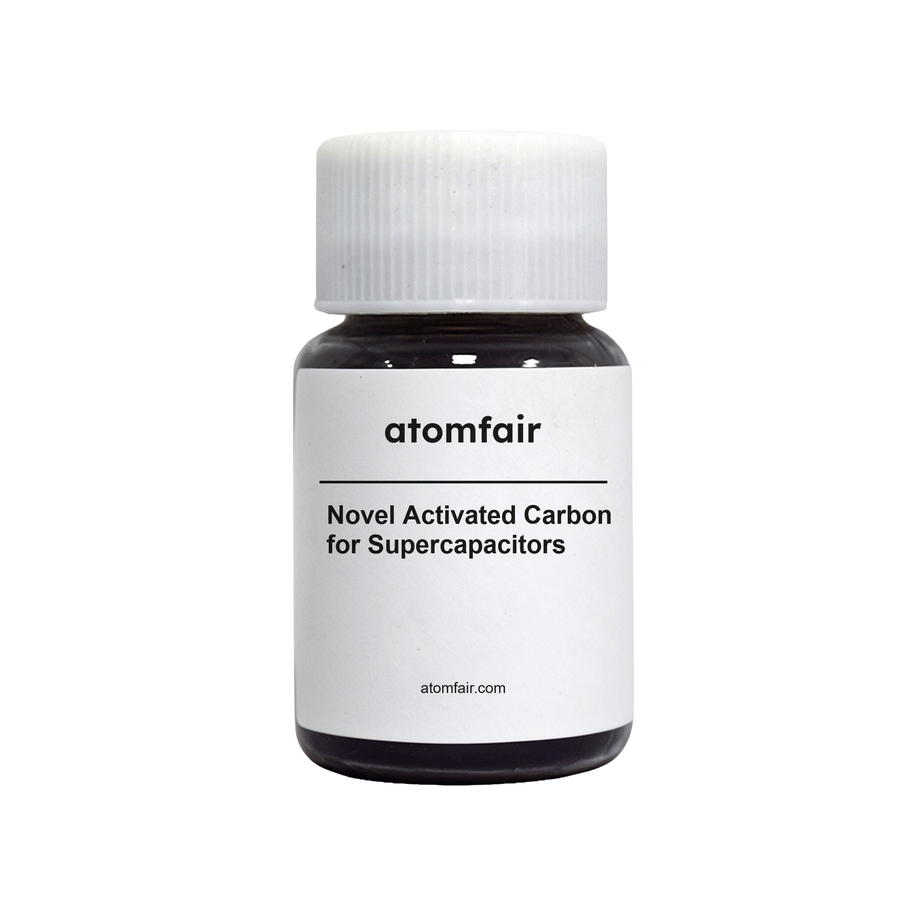

Novel Activated Carbon for Supercapacitors – 500 g Package
Product Type: Supercapacitor Activated Carbon
Research-grade laboratory product
|
|||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For material selection, package selection and specification confirmation, contact our technical sales team.
E-MAIL: inquiry@atomfair.com
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
How does the narrow pore size distribution (2.4-3.2 nm) of this activated carbon affect its rate capability and capacitance retention in supercapacitors compared to carbons with larger mesopores?
The narrow pore size (2.4-3.2 nm) is optimized for high surface area (~2500 m²/g) and pore volume (0.3-0.7 cm³/g), which enhances specific capacitance but may limit ion transport at high charge/discharge rates. The micropore-dominant structure favors double-layer formation with small electrolyte ions, but larger ions or faster rates can suffer from diffusion limitations. This trade-off is typical for high-surface-area carbons in supercapacitor applications.
What electrode fabrication considerations are necessary when using this 1-10 µm particle size activated carbon for slurry-based supercapacitor electrodes?
With a particle size of 1-10 µm (SEM), this carbon is suitable for standard slurry coating, but the fine particulates require optimized binder ratios and dispersion techniques to avoid agglomeration. The low apparent density (0.13-0.15 g/cm³) and tap density (0.25-0.29 g/cm³) necessitate careful solvent selection and mixing to achieve homogeneous electrode films. The neutral pH (6.0-7.0) is compatible with common binders like PVDF or PTFE.
What storage and handling precautions are recommended for this high-surface-area activated carbon powder to prevent moisture adsorption and performance degradation?
Given its high surface area (~2500 m²/g) and fine particle size (1-10 µm), this carbon is hygroscopic and should be stored in airtight containers under a dry, inert atmosphere to prevent moisture uptake and oxidation. The neutral pH (6.0-7.0) indicates no extreme acidity, but the low bulk density makes it prone to dusting; use appropriate fume hoods and personal protective equipment during handling. Avoid prolonged ambient exposure to maintain the specified pore structure and purity.
This 500 g package of supercapacitor-grade activated carbon offers high surface area (~2500 m²/g) and optimized mesopore structure (2.4–3.2 nm) for EDLC electrodes, but its low apparent density (0.13–0.15 g/cm³) and broad particle size distribution (1–10 µm) require careful slurry formulation and handling to achieve uniform coatings and competitive volumetric capacitance.
Positive
- High specific surface area: With ~2500 m²/g, this activated carbon provides abundant electrode–electrolyte interface, directly enhancing gravimetric capacitance in supercapacitor devices.
- Optimized mesopore size range: Pore diameters of 2.4–3.2 nm are well-suited for organic electrolyte ion transport, balancing ion accessibility and charge storage density.
Trade-offs
- Low apparent density: Apparent density of 0.13–0.15 g/cm³ indicates a highly porous structure that may lead to poor packing, increased binder demand, and reduced volumetric capacitance in fabricated electrodes.
- Broad particle size distribution: Particle sizes spanning 1–10 µm can cause inconsistent slurry rheology and coating uniformity, requiring optimization of dispersion and deposition parameters.
