500W SOFC Fuel Cell Stack | ATOMFAIRProduct Type: Fuel cell stack
Research-grade hydrogen energy product
|
|||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For model selection, platform compatibility or configuration confirmation, contact our technical sales team.
E-MAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||||||
|
Supplier: Atomfair
Brand: ATOMFAIR®
|
Operate the stack at 750°C with hydrogen or natural gas fuel. The rated power is 500W and thermal cycling is permitted.
- Fuel Gas Compatibility: Only hydrogen and natural gas are approved fuel gases for this stack.
- Operating Temperature: The stack is tested at 750°C and must be operated at high temperature.
- Power Limit: Do not exceed the rated power output of 500W.
- Thermal Cycling: Multiple thermal cycles are supported but may introduce mechanical stress.
What is the maximum power output of the Atomfair 500W SOFC stack at a cell voltage of 0.60 V/cell?
The stack delivers up to 616.54 W at 0.60 V/cell, exceeding its rated 500 W output. At this operating point, the stack voltage is 7.28 V and current is 84.69 A, as measured at a 750°C test temperature.
Can the Atomfair 500W SOFC stack operate on natural gas in addition to hydrogen?
Yes, the stack supports both hydrogen and natural gas as fuel gas. The specified test point at 750°C applies to both fuels, but performance points at multiple cell voltages are provided for quotation confirmation to match your specific fuel and operating conditions.
What are the physical dimensions and customization options for the Atomfair 500W SOFC stack?
The stack has a 150 x 150 mm footprint with a single-cell size of 100 mm x 100 mm. The height includes piping and is customizable to fit your installation envelope. The 12-cell configuration yields a rated power of 500 W.

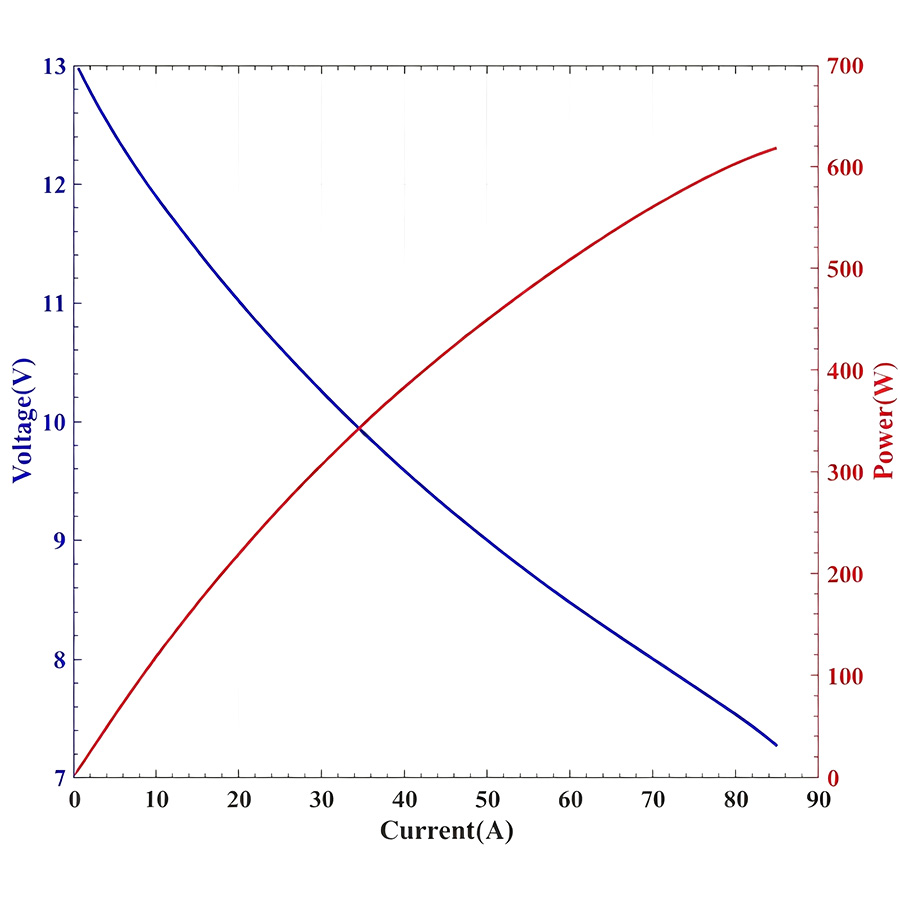

This 500W SOFC stack uses 12 cells in a 150 x 150 mm footprint and supports hydrogen or natural gas at a 750°C test point with multiple thermal cycling. Delivered power is highly voltage-dependent, ranging from 267.95 W at 0.88 V/cell to 616.54 W at 0.60 V/cell, so the target operating point must be specified when ordering.
Positive
- Hydrogen and natural gas fuel flexibility: The stack is specified for both hydrogen and natural gas fuel gas, allowing one SOFC platform to support different fuel-sourcing strategies in the laboratory.
- Multiple thermal cycling capability: The product is specified for multiple thermal cycling, indicating it can be thermally cycled more than once during long-duration testing rather than being limited to single-use operation.
Trade-offs
- 750°C operation requires thermal integration: The stack's test point is 750°C, so the surrounding test bench and system integration must account for high-temperature thermal management, insulation, and compatible high-temperature interfaces.
- Power output tied to cell voltage: Measured power falls from 616.54 W at 0.60 V/cell to 267.95 W at 0.88 V/cell, so the 500W rating must be confirmed against the target cell-voltage operating window before procurement.
