Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
|||||||||||||||||||||||

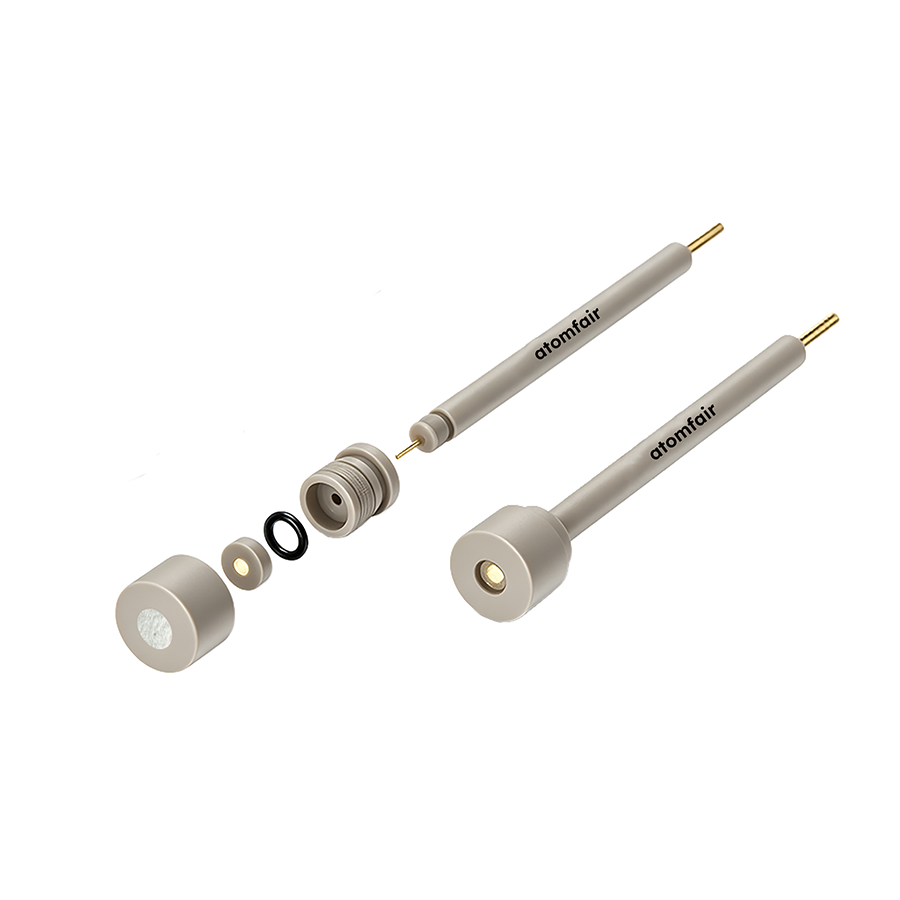

The electrode surface is highly sensitive to contamination and must be stored in a sealed container or handled exclusively within an anhydrous inert atmosphere to prevent phase degradation. The embedded silver disk design with head thickness under 4 mm enables direct integration with SEM or AFM systems without sample transfer.
- Surface Contamination Sensitivity: Keep containers tightly sealed or handle exclusively within an anhydrous inert environment to prevent phase contamination or degradation before electrochemical validation.
Initialize the electrode by verifying surface cleanliness and mounting it securely in the electrochemical cell. After use, clean the silver disk surface and store the electrode in a sealed protective container under inert atmosphere.
Required Equipment: Anhydrous inert environment (glovebox or gas line), Protective sealed container with shock absorption
- Inspect Electrode Surface
Inspect the silver disk surface for any visible contamination or oxidation before use. - Mount Electrode in Cell
Mount the electrode securely into the electrochemical cell, ensuring the head thickness does not exceed 4 mm for proper fit. - Perform Electrochemical Measurement
Perform the desired potentiometric or voltammetric measurement within the operational potential window of silver. - Clean Electrode Surface
Clean the silver disk surface immediately after use to remove any residual electrolyte or reaction products. - Store Electrode Under Inert Atmosphere
Store the electrode in a sealed protective container under anhydrous inert atmosphere to prevent surface degradation.
How does the choice of electrode diameter affect the trade-off between sensitivity for micro-electrode sensing and current capacity for bulk electrolysis?
The 2 mm diameter provides enhanced sensitivity for micro-electrode applications due to reduced capacitive currents and smaller geometric area, while the 6 mm diameter offers higher total current for macro-electrode bulk electrolysis. The available diameters from 2 mm to 6 mm span micro-sensing to bulk analysis scales, but only the electrode head thickness (less than 4 mm) remains constant to maintain SEM/AFM compatibility across all sizes.
Can this silver disk electrode be integrated directly into scanning electron microscopy or atomic force microscopy setups without additional sample transfer?
Yes, the electrode head thickness of less than 4 mm allows direct integration with SEM or AFM systems, enabling correlative electrochemical-microscopic analysis on the identical electrode surface. This design eliminates the need for sample transfer between electrochemical and microscopy experiments, preserving the spatial relationship between electrochemical activity and surface structure.
What handling and storage conditions are required to maintain the silver electrode surface integrity before use?
This electrode is highly sensitive to surface contamination. Containers must be kept tightly sealed or the electrode handled exclusively within an anhydrous inert environment to prevent phase contamination or degradation before electrochemical validation.
This silver disk working electrode offers diameters from 2 to 6 mm and a thin head (<4 mm) enabling direct SEM or AFM integration without sample transfer for correlative electrochemical-microscopic analysis, but requires strict contamination control during storage and handling.
Positive
- Correlative electrochemistry and microscopy capability: The embedded disk design with head thickness less than 4 mm allows direct integration with SEM or AFM systems without sample transfer, enabling structural and topographical correlation with electrochemical data from the identical electrode surface.
- Multiple diameter options for experimental flexibility: Available in five diameters from 2 mm to 6 mm, accommodating experimental scales from micro-electrode sensing to macro-electrode bulk electrolysis.
Trade-offs
- High surface contamination sensitivity: The silver disk working electrode is highly sensitive to surface contamination; containers must remain tightly sealed or handling performed exclusively within an anhydrous inert environment to prevent degradation before electrochemical validation.
