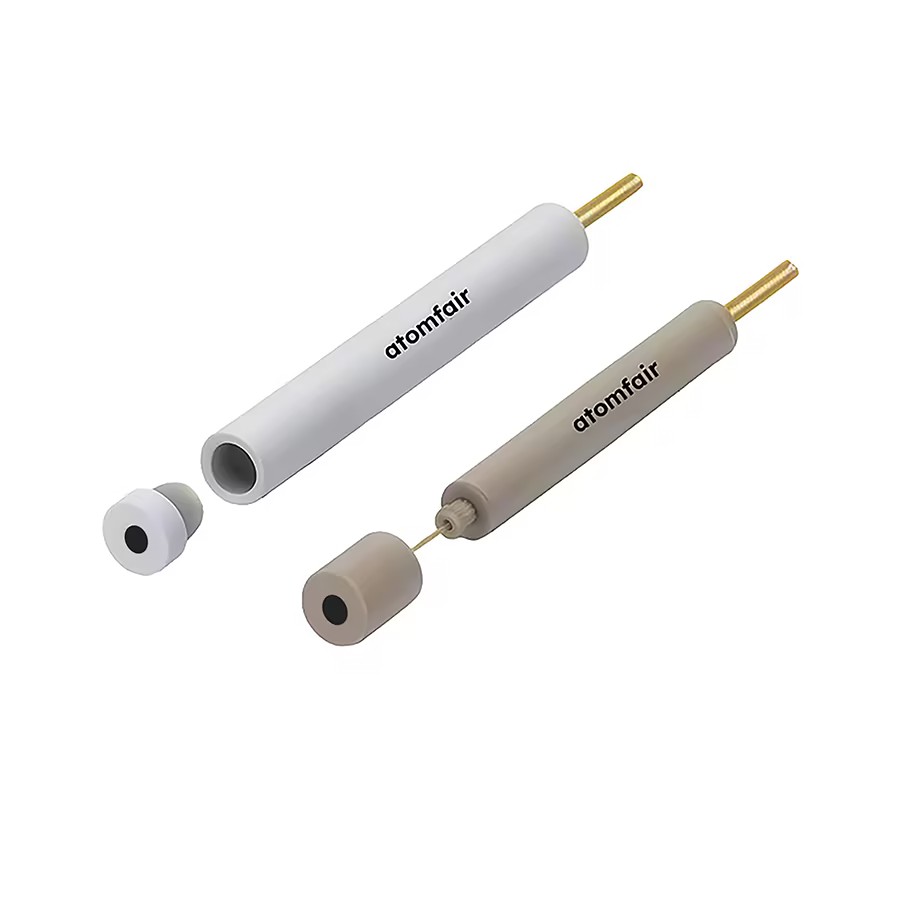

Detachable Electron Microscopy Carbon Paste (Non-adjustable) Working Electrode Series | ATOMFAIRRESEARCH GRADE INSTRUMENT
|
|||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
|||||||||||||||||||||||||||
This electrode requires strict contamination control to prevent surface degradation. Handling must be performed in an anhydrous inert environment or with containers tightly sealed to maintain electrochemical performance.
- Surface Contamination Sensitivity: The carbon paste surface is highly sensitive to contamination from ambient moisture and air, which can cause phase degradation and compromise electrochemical validation.
- Storage Requirements: Containers must be kept tightly sealed when not in use to prevent exposure to atmospheric contaminants.
- Handling Environment: Exclusive handling within an anhydrous inert atmosphere is recommended to ensure surface integrity before use.
How does the fixed carbon paste composition in the non-adjustable design affect electrochemical performance compared to adjustable paste electrodes?
The fixed-composition, non-adjustable design prioritizes electrochemical reproducibility and paste consistency, which is critical for routine sensing and reliable data across experiments. The specialized carbon paste provides a wide potential window and low background current as noted in the specifications, but the trade-off is that the paste composition cannot be varied for different analyte systems without replacing the entire head assembly.
What are the key compatibility requirements for integrating this carbon paste working electrode with scanning electrochemical microscopy (SECM) or other microscopy-coupled setups?
The detachable head design (9mm thickness) and cylindrical geometry are specifically optimized for microscopy-coupled experiments, allowing easy surface renewal without replacing the entire electrode body. The gold-plated copper rod (1.5×15mm) ensures low contact resistance and corrosion protection, but users should confirm that the 6mm rod length and 9mm head thickness fit their specific microscope stage or probe holder dimensions.
What specific storage and handling conditions are required to prevent degradation of the carbon paste working electrode before use?
The product is highly sensitive to surface contamination; it must be kept in tightly sealed containers or handled exclusively within an anhydrous inert environment to prevent phase contamination or degradation before electrochemical validation. Failure to maintain these conditions can compromise the carbon paste surface and invalidate experimental results.
This detachable carbon paste working electrode enables renewable surface generation without replacing the entire body, using a gold-plated copper rod for stable low-resistance contact; however, it demands strict inert atmosphere handling to prevent surface contamination before validation.
Positive
- Detachable Head Design for Surface Renewal: The user-replaceable head (9 mm thick) allows easy regeneration of the carbon paste surface without discarding the PTFE/PEEK body, significantly extending electrode service life and ensuring consistent performance in microscopy-coupled experiments.
- Gold-Plated Copper Rod for Low Contact Resistance: The 1.5 × 15 mm gold-plated copper conductor provides superior corrosion protection and stable conductivity, minimizing contact resistance across prolonged electrochemical sensing runs.
Trade-offs
- High Sensitivity to Surface Contamination: The carbon paste surface is highly susceptible to contamination from ambient air; containers must remain tightly sealed and handled exclusively within an anhydrous inert environment to prevent phase contamination or degradation before electrochemical validation.
- Requires Anhydrous Inert Handling for Storage: To maintain electrochemical integrity, the electrode must be stored and manipulated under anhydrous inert conditions, imposing infrastructure and protocol constraints typical of air-sensitive laboratory materials.
