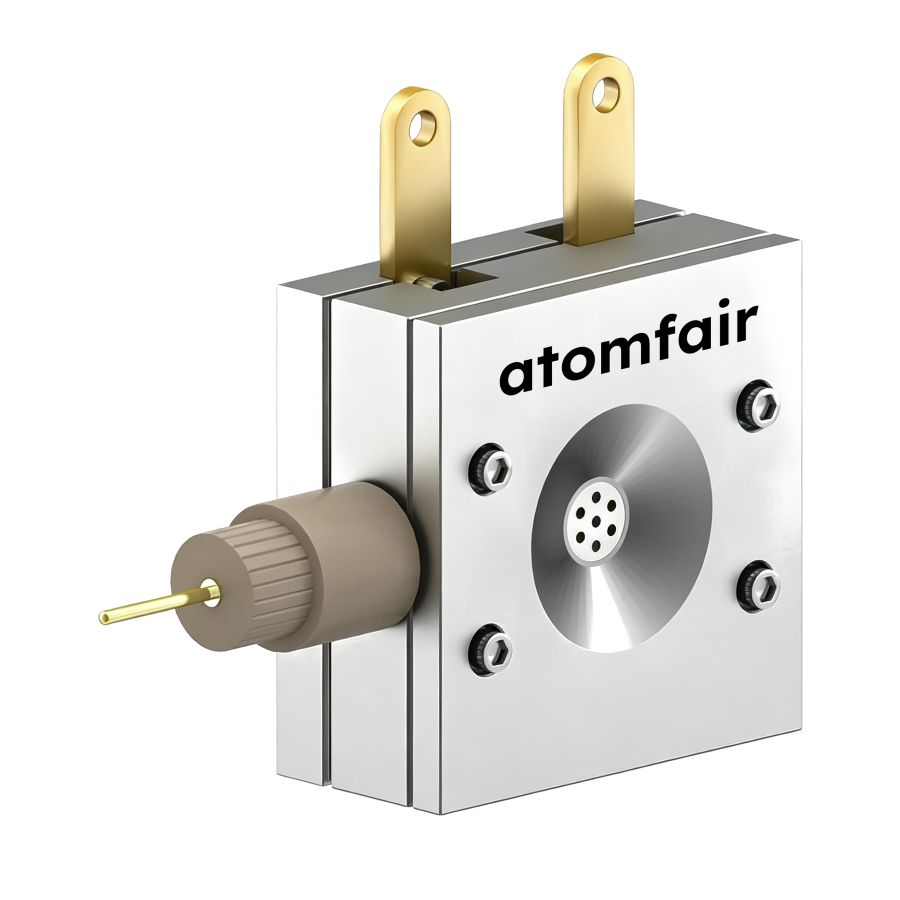

In-situ Raman Three-Electrode Battery Test CellProduct Type: In-situ battery test cell
Research-grade laboratory product
|
|||||||||||||||||||||
|
|||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For model selection, technical compatibility or configuration confirmation, contact our technical sales team.
E-MAIL: inquiry@atomfair.com
|
|||||||||||||||||||||
|
Manufacturer: Atomfair LLC LLC
Brand: ATOMFAIR®
|
Proper assembly requires working electrode-to-window distance under 2 mm to achieve Raman signal. Electrode, membrane, and window materials must be selected for compatibility with the cell configuration.
- Electrode and Membrane Compatibility: The cell requires validation of electrode dimensions and membrane type against the standard configuration; non-standard sizes necessitate custom ordering.
- Optical Window Alignment: The working electrode must be placed within 2 mm of the 8 mm diameter optical window to ensure adequate Raman signal collection.
How does adding a reference electrode alter the optical performance of the in-situ Raman test cell?
The three-electrode upgrade maintains a working electrode-to-window distance of less than 2 mm and uses the same compact titanium body as the two-electrode version, preserving a short optical path. This design minimizes signal distortion and keeps Raman spectral quality comparable to the two-electrode configuration, as stated in the product specifications.
What are the key dimensional and equipment constraints for integrating this three-electrode Raman cell with a standard Raman microscope?
The cell's working electrode-to-window distance is under 2 mm, requiring a Raman microscope objective with a working distance shorter than that. The optical window diameter is 8 mm, and the overall cell dimensions are 50×50×24 mm, so the microscope stage and mount must accommodate that footprint. Electrodes and windows are not included and must be separately sourced to match these dimensions.
What critical infrastructure specifications must a laboratory meet to operate the three-electrode in-situ Raman cell?
A potentiostat or galvanostat with reference electrode capability is required because the cell adds reference electrode access for three-electrode measurements. The Raman microscope objective must have a working distance significantly under 2 mm to focus through the 8 mm optical window without contacting the electrode. No specialized atmospheric control is mandated, but users should verify compatibility with their electrolyte chemistry and cell sealing practices.
This in-situ Raman three-electrode battery test cell enables simultaneous electrochemical testing and Raman spectroscopy with a short optical path (<2 mm) and a compact titanium cell, but requires separate procurement of electrodes and windows, and customization may be needed for non-standard configurations.
Positive
- Three-electrode configuration for accurate electrochemistry: Adds reference electrode access to the in-situ Raman battery test cell architecture, enabling precise potential control and reference measurements.
- Short optical distance for Raman observation: Working electrode to window distance is less than 2 mm, maintaining short optical path for efficient Raman signal collection.
Trade-offs
- Separate accessory procurement required: Electrodes, membranes, windows, and gas diffusion electrodes are not included and must be purchased separately, adding to the total system complexity.
- Customization may be needed for non-standard sizes: For non-standard electrode sizes or window materials, customization is required, which may affect lead times and compatibility with existing setups.
