10 mL Titanium High-Pressure Electrochemical Cell ATOMFAIR®

The cell operates under high pressure and requires proper handling to prevent mechanical failure. Electrode compatibility and secure sealing are essential for safe and accurate electrochemical measurements.

• Pressure Containment: Maintain the cell pressure within the safe operating envelope to prevent structural damage.
• Electrode Installation: Reference, counter, and working electrodes must be installed using the appropriate clamps and seals to maintain chamber integrity.
• Material Compatibility: Only use electrolytes and solvents compatible with titanium and stainless steel to prevent corrosion and contamination.

This procedure describes the initial assembly and pressurization of the small-volume single-chamber high-pressure electrochemical cell. Ensure all components are clean and compatible before starting.

Required Equipment: Electrode clamp

1. Inspect cell components
   Inspect the titanium body, seals, and valve for any damage or debris before assembly.
2. Install electrodes
   Install the reference, counter, and working electrodes into their respective ports and secure with the electrode clamp.
3. Seal the chamber
   Tighten all seals and valves to ensure a leak-proof closure before introducing pressure.
4. Pressurize the cell
   Pressurize the cell to the desired operating pressure using the inlet valve.

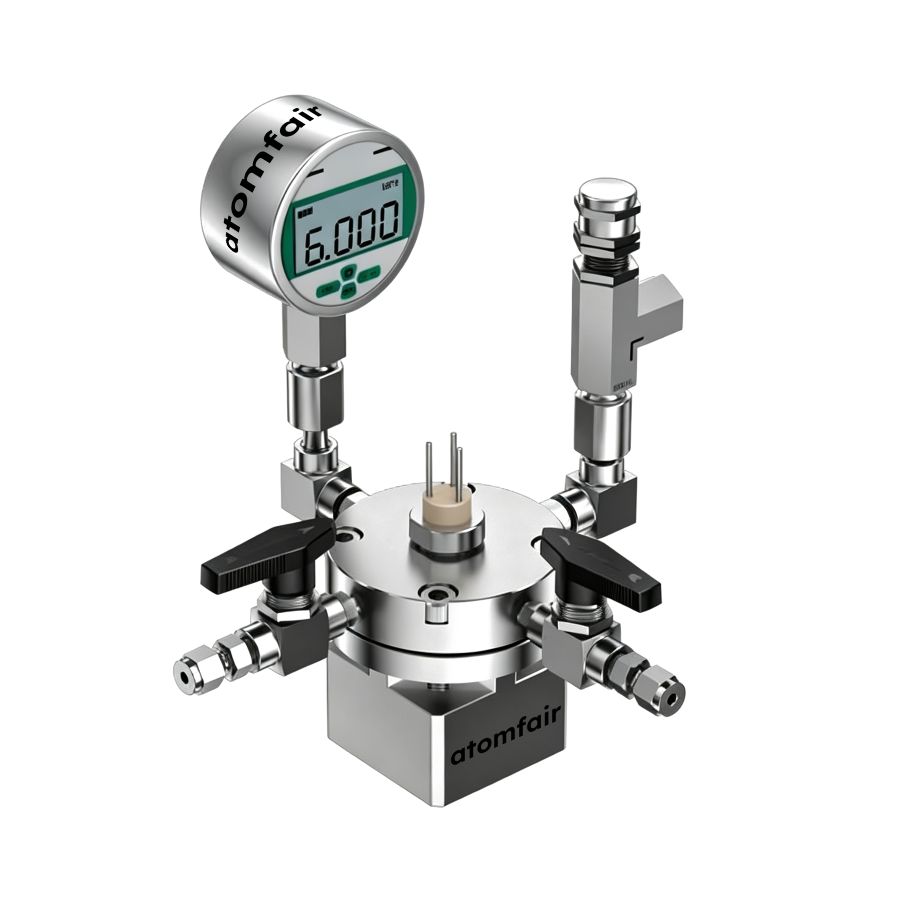

The Atomfair AF-HP-MICRO small-volume single-chamber high-pressure electrochemical cell offers a 10 mL titanium vessel rated to 6 MPa, suitable for pressurized electrochemical research; however, all electrodes and the working electrode clamp must be sourced separately, and the pressure limit may constrain certain high-pressure applications.

Positive

• Small-volume design for precise control: The 10 mL single-chamber configuration enables accurate electrochemical measurements under high pressure with minimal sample volume.
• Titanium body with 6 MPa rating: Titanium construction provides corrosion resistance and mechanical integrity for aqueous and organic electrolyte systems up to 6 MPa.

Trade-offs

• Electrodes and clamp sold separately: Reference, counter, and working electrodes along with the electrode clamp must be purchased separately, requiring additional procurement and compatibility verification.
• Pressure limit of 6 MPa: The maximum operating pressure of 6 MPa may be insufficient for gas-phase or supercritical electrochemical studies that require higher pressures.
