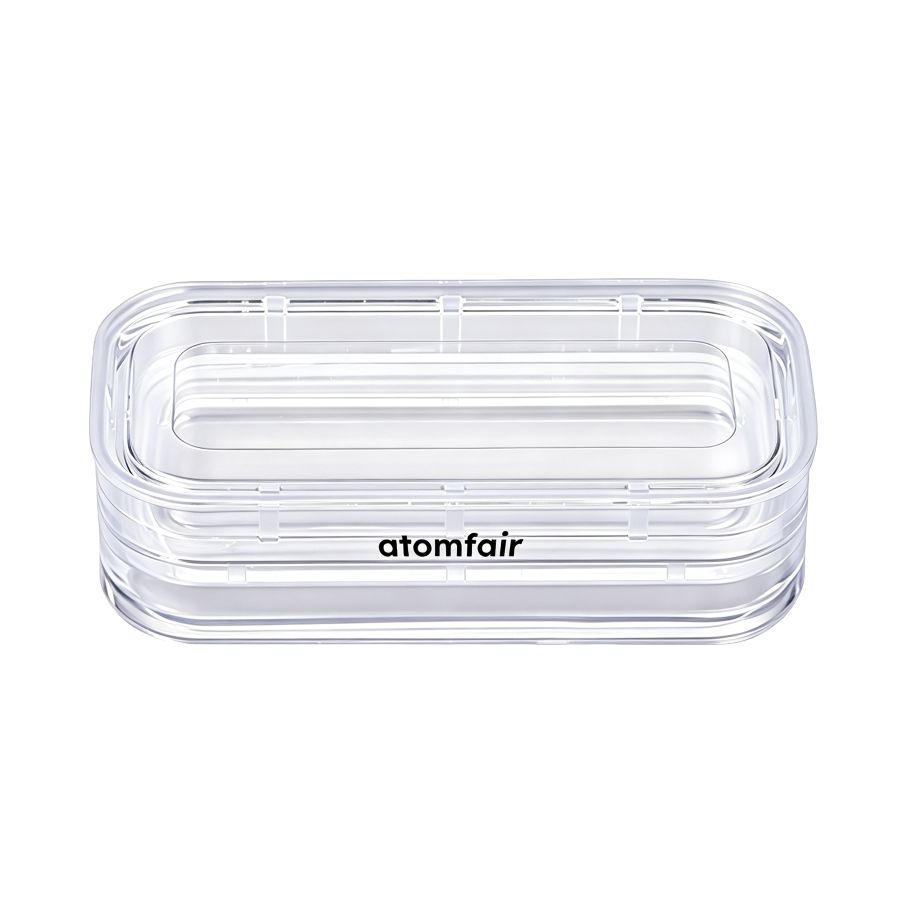

ATOMFAIR® Membrane Box AF-MB-10030B for non-clamping delicate component storage during clean lab transfer

Membrane Box 100 x 50 x 30 mm

$40.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Clear PS membrane box with 100×50×30 mm outer size, 91×36×25 mm usable inner space and 5 pcs pack for protected component transfer. Order now.

SKU: AF-EI-A-MBOX-1030-B005
Category:
Tags:
Brands:

Description

Membrane Box 100 x 50 x 30 mm

Membrane-supported component protection

Product Overview

This membrane box is made with upper and lower high-clarity PS shells and transparent high-elastic membrane films. The outer size is 100 x 50 x 30 mm, and the usable inner size is 91 x 36 x 25 mm, making it suitable for compact components that need protected suspended positioning inside a clear package.

It is designed for fragile, polished or irregular precision parts that should not be tightly clamped or placed against hard support surfaces. In storage, sample transfer, inspection and display preparation, the membrane structure helps reduce surface rubbing, edge impact and part displacement while keeping the component visible without unpacking.

Specifications
1. Model Options & Dimension Parameters
Model Outer Size Inner Size Box Format
AF-MB-10030B 100 x 50 x 30 mm 91 x 36 x 25 mm Membrane box
2. Technical Specifications
Parameter Details
Product Format Transparent membrane-supported protective box for delicate components
Standard Configuration Clear shell, transparent membrane support and standard non-latch closure
Shell Material High-clarity PS
Membrane Configuration Transparent high-elastic membrane films
Structure Upper and lower two-piece shell with suspended membrane support between both sides
Retention Method Gentle non-clamping retention for fragile, polished or irregular precision parts
Recommended Components Optical parts, crystals, dental prosthetics, watches, jewelry, miniature assemblies and other delicate precision items
Pack Quantity 5 pcs
Optional Selection Anti-static shell material, custom shell color, optional latch closure, custom latch color and logo printing

Key Features and Advantages
  • Suspended membrane holding helps protect finished or sensitive surfaces from direct hard-contact support.
  • The packed component remains visible through the clear shell, which improves identification, inspection and presentation efficiency.
  • The structure is suitable for irregular or easily displaced small parts that require centered positioning during storage and transfer.
  • Compared with direct-contact packaging, this format helps reduce shifting and local impact during routine handling and packing preparation.
APPLICATION SCOPE: Optical parts, crystal samples, dental prosthetics, watches, jewelry, miniature assemblies and other small delicate precision components that require stable suspended positioning during inspection, transfer and presentation.
PACKAGING: Store in a clean, dry area away from dust, heat and sharp objects that may damage the membrane surface. Before closing the box, confirm that the component outline fits the usable inner size of 91 x 36 x 25 mm and does not create excessive local pressure on the membrane.
IMPORTANT NOTICE: The standard version of this membrane box is non-latch. Optional latch closure is available on request. If the component has sharp edges, high point-load concentration or electrostatic sensitivity, please confirm the suitable shell material and closure configuration before ordering.
TAILORED SOLUTIONS FOR RESEARCH
For custom colors, tray layout, quantity planning or shipment support, contact our engineering sales team.
EMAIL: inquiry@atomfair.com
Supplier: Atomfair
Brand: ATOMFAIR®

Store the membrane box in a clean, dry environment away from dust, heat, and sharp objects to prevent membrane damage. Ensure the component fits within the usable inner dimensions and does not exert excessive local pressure on the membrane.

  • Environmental Storage: Store in a clean, dry area away from dust, heat, and sharp objects that may damage the membrane surface.
  • Component Size Compatibility: Confirm the component outline fits the usable inner size of 91 x 36 x 25 mm before closing the box.
  • Pressure Avoidance: Avoid components with sharp edges or high point-load concentration that may cause excessive local pressure on the membrane.
  • Electrostatic Sensitivity: For electrostatic-sensitive components, confirm suitable anti-static shell material before ordering.
  • Closure Configuration: The standard version is non-latch; optional latch closure is available for secure retention if needed.

Inspect the component dimensions and place it onto the lower membrane film to ensure proper fit and support. Close the upper shell and store the box in a clean, dry environment to protect the component.

Required Equipment:

  1. Inspect Component Dimensions
    Inspect the component to ensure its dimensions fit within the usable inner size of 91 x 36 x 25 mm.
  2. Place Component on Membrane
    Place the component onto the lower membrane film, centering it to avoid contact with hard shell edges.
  3. Close the Box
    Close the upper shell and verify that the membrane supports the component without displacement or excessive pressure.
  4. Store Appropriately
    Store the sealed box in a clean, dry area away from dust, heat, and sharp objects.

What is the maximum component size that can be safely placed in the 100 x 50 x 30 mm membrane box without risking excessive membrane pressure?

The usable inner size is 91 x 36 x 25 mm. Components must fit within these dimensions and should not create excessive local pressure on the membrane. The manufacturer advises confirming that the component outline fits the inner size before closing the box to avoid damaging the membrane or the part.

Can the standard membrane box accommodate components with sharp edges or electrostatic sensitivity, and what configuration options are available?

The standard version uses a non-latch closure and high-clarity PS shell. For components with sharp edges, high point-load concentration, or electrostatic sensitivity, the manufacturer recommends confirming the suitable shell material and closure configuration before ordering. Optional upgrades include anti-static shell material, custom shell color, and optional latch closure.

What storage conditions are required to maintain the integrity of the membrane box and protect its contents during long-term storage?

Store the membrane box in a clean, dry area away from dust, heat, and sharp objects that may damage the membrane surface. Before closing, verify that the component fits within the inner dimensions (91 x 36 x 25 mm) to avoid excessive local pressure. These precautions help prevent surface damage and displacement during storage and transfer.

The membrane box provides gentle suspended retention for fragile, polished, or irregular precision parts, reducing surface contact and enabling visible inspection without unpacking. However, the standard non-latch closure and need for precise component fit validation require attention for secure handling and to avoid membrane overstress.

Positive

  • Suspended membrane protection: High-elastic membrane films suspend the component away from hard surfaces, reducing rubbing, edge impact, and displacement during storage, transfer, and inspection.
  • Clear visibility without unpacking: Transparent PS shells maintain full visibility of the enclosed component, improving identification, inspection, and presentation efficiency without opening the package.

Trade-offs

  • Non-latch closure standard: The standard version uses a non-latch closure; for applications requiring secure fastening during transport or handling, an optional latch closure must be specified.
  • Requires component fit validation: Users must verify that the component outline fits within the 91 x 36 x 25 mm inner volume and does not create excessive local pressure on the membrane to avoid damage or deformation.

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
