ATOMFAIR® Membrane Box AF-MB-10030A for non-clamping delicate component storage during clean lab transfer

Membrane Box 100 x 76 x 30 mm

$43.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Clear PS membrane box, 100×76×30 mm outer and 90×61×25 mm inner, with transparent elastic films for suspended protection; pack of 5. Order now.

SKU: AF-EI-A-MBOX-1030-A005
Category:
Tags:
Brands:

Description

Membrane Box 100 x 76 x 30 mm

Membrane-supported component protection

Product Overview

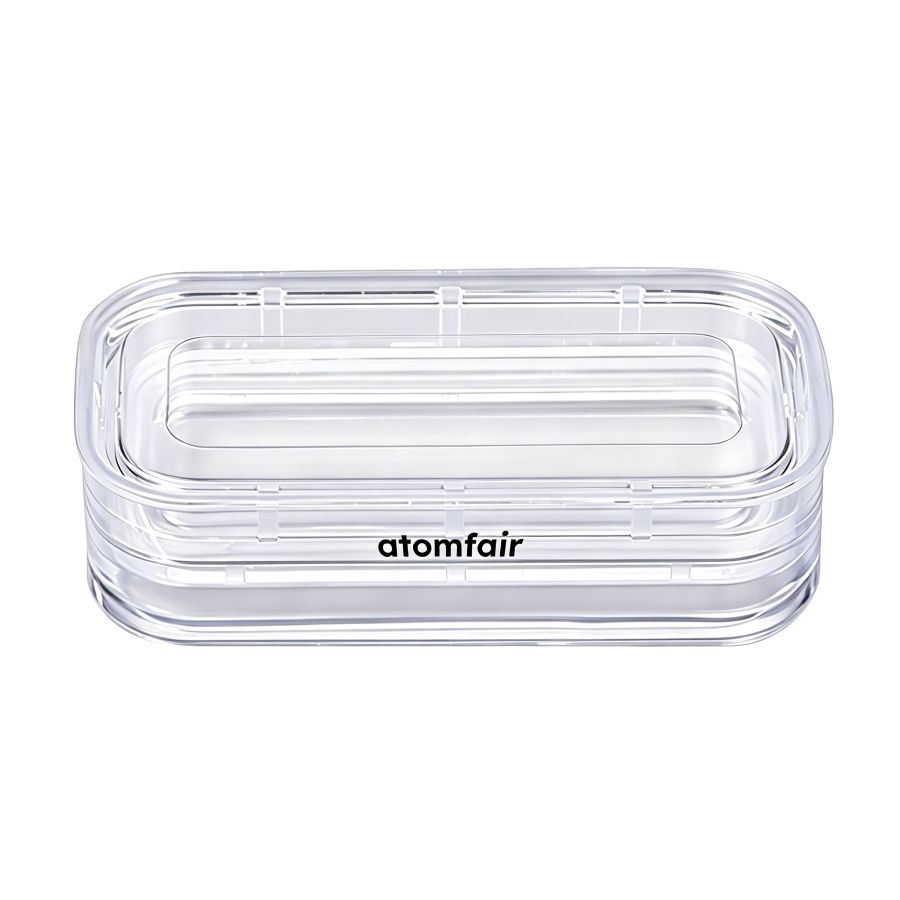

This membrane box is made with upper and lower high-clarity PS shells and transparent high-elastic membrane films. The outer size is 100 x 76 x 30 mm, and the usable inner size is 90 x 61 x 25 mm, making it suitable for compact components that need protected suspended positioning inside a clear package.

It is designed for fragile, polished or irregular precision parts that should not be tightly clamped or placed against hard support surfaces. In storage, sample transfer, inspection and display preparation, the membrane structure helps reduce surface rubbing, edge impact and part displacement while keeping the component visible without unpacking.

Specifications
1. Model Options & Dimension Parameters
Model Outer Size Inner Size Box Format
AF-MB-10030A 100 x 76 x 30 mm 90 x 61 x 25 mm Membrane box
2. Technical Specifications
Parameter Details
Product Format Transparent membrane-supported protective box for delicate components
Standard Configuration Clear shell, transparent membrane support and standard non-latch closure
Shell Material High-clarity PS
Membrane Configuration Transparent high-elastic membrane films
Structure Upper and lower two-piece shell with suspended membrane support between both sides
Retention Method Gentle non-clamping retention for fragile, polished or irregular precision parts
Recommended Components Optical parts, crystals, dental prosthetics, watches, jewelry, miniature assemblies and other delicate precision items
Pack Quantity 5 pcs
Optional Selection Anti-static shell material, custom shell color, optional latch closure, custom latch color and logo printing

Key Features and Advantages
  • Suspended membrane holding helps protect finished or sensitive surfaces from direct hard-contact support.
  • The packed component remains visible through the clear shell, which improves identification, inspection and presentation efficiency.
  • The structure is suitable for irregular or easily displaced small parts that require centered positioning during storage and transfer.
  • Compared with direct-contact packaging, this format helps reduce shifting and local impact during routine handling and packing preparation.
APPLICATION SCOPE: Optical parts, crystal samples, dental prosthetics, watches, jewelry, miniature assemblies and other small delicate precision components that require stable suspended positioning during inspection, transfer and presentation.
PACKAGING: Store in a clean, dry area away from dust, heat and sharp objects that may damage the membrane surface. Before closing the box, confirm that the component outline fits the usable inner size of 90 x 61 x 25 mm and does not create excessive local pressure on the membrane.
IMPORTANT NOTICE: The standard version of this membrane box is non-latch. Optional latch closure is available on request. If the component has sharp edges, high point-load concentration or electrostatic sensitivity, please confirm the suitable shell material and closure configuration before ordering.
TAILORED SOLUTIONS FOR RESEARCH
For custom colors, tray layout, quantity planning or shipment support, contact our engineering sales team.
EMAIL: inquiry@atomfair.com
Supplier: Atomfair
Brand: ATOMFAIR®

This membrane box requires storage in a clean, dry environment away from dust, heat, and sharp objects to prevent membrane damage. The component must fit within the usable inner dimensions without creating excessive local pressure on the membrane support.

  • Storage Environment: Store the membrane box in a clean, dry area away from dust, heat, and sharp objects that may damage the membrane surface.
  • Component Fit: Confirm that the component outline fits the usable inner size of 90 x 61 x 25 mm and does not create excessive local pressure on the membrane.
  • Sharp Edge Compatibility: If the component has sharp edges, high point-load concentration, or electrostatic sensitivity, confirm the suitable shell material and closure configuration before ordering.

This procedure describes how to safely place a delicate component into the membrane box and store it properly. Follow these steps to avoid damaging the component or the membrane support.

Required Equipment:

  1. Inspect Component
    Inspect the component for sharp edges, high point-load concentration, or electrostatic sensitivity before placing it in the box.
  2. Verify Dimensions
    Confirm that the component outline fits within the usable inner dimensions of 90 x 61 x 25 mm.
  3. Place Component
    Place the component gently onto the lower membrane support, ensuring centered positioning without pressing.
  4. Close Box
    Close the upper shell slowly, verifying that the membrane does not exert excessive local pressure on the component.
  5. Store Box
    Store the sealed box in a clean, dry area away from dust, heat, and sharp objects.

What is the maximum allowable component thickness to fit within the membrane box without causing excessive local pressure on the membrane?

The usable inner size is 90 x 61 x 25 mm, so the component outline must fit within these dimensions. To avoid excessive local pressure on the membrane, the component should not have sharp edges or high point-load concentration against the film. The standard non-latch closure provides gentle retention, but if the component creates concentrated pressure, custom closure or shell material may be required.

Can components with sharp edges or high point-load concentration be safely stored in the standard version of the membrane box?

The standard membrane box uses a non-latch PS shell and transparent elastic membrane. For components with sharp edges, high point-load concentration, or electrostatic sensitivity, the source explicitly states to confirm the suitable shell material and closure configuration before ordering. Optional features such as anti-static shell material, custom shell color, and latch closure are available to address these constraints.

What storage conditions and precautions are recommended to maintain the integrity of the membrane box?

Store the membrane box in a clean, dry area away from dust, heat, and sharp objects that may damage the membrane surface. Before closing, confirm that the component outline fits the usable inner size of 90 x 61 x 25 mm and does not create excessive local pressure on the membrane. These precautions help preserve the membrane's elasticity and protect the component during storage, transfer, and inspection.

This membrane box provides suspended holding for fragile components using high-clarity PS shells and elastic membranes, enabling visible inspection without unpacking. However, the standard non-latch closure and membrane sensitivity to dust and sharp objects require careful handling.

Positive

  • Suspended membrane support: Transparent high-elastic membrane films suspend components without hard contact, reducing surface rubbing and edge impact for fragile, polished, or irregular precision parts.
  • Visible packaging for inspection: Clear upper and lower PS shells allow component identification and inspection without unpacking, improving workflow efficiency in storage, transfer, and presentation.

Trade-offs

  • Standard non-latch closure: The default version lacks a latch, which may allow unintended opening during handling; an optional latch closure is available upon request.
  • Membrane sensitivity to damage: The membrane surface is vulnerable to dust, heat, and sharp objects, requiring clean, dry storage and careful placement to avoid local pressure or puncture.
