Plug-In Vacuum Release Tray 400 Grid Ultra-Low ATOMFAIR®

$75.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Research-grade plug-in vacuum release tray with 400-grid 20×20 array, ultra-low adhesion surface, ESD/conductive configurations, and 16 mesh. Order now.

Specification

Clear

PLUG-IN VACUUM RELEASE TRAY 400 GRID ULTRA-LOW ADHESION,5pcs

RESEARCH GRADE MATERIAL

Product Overview

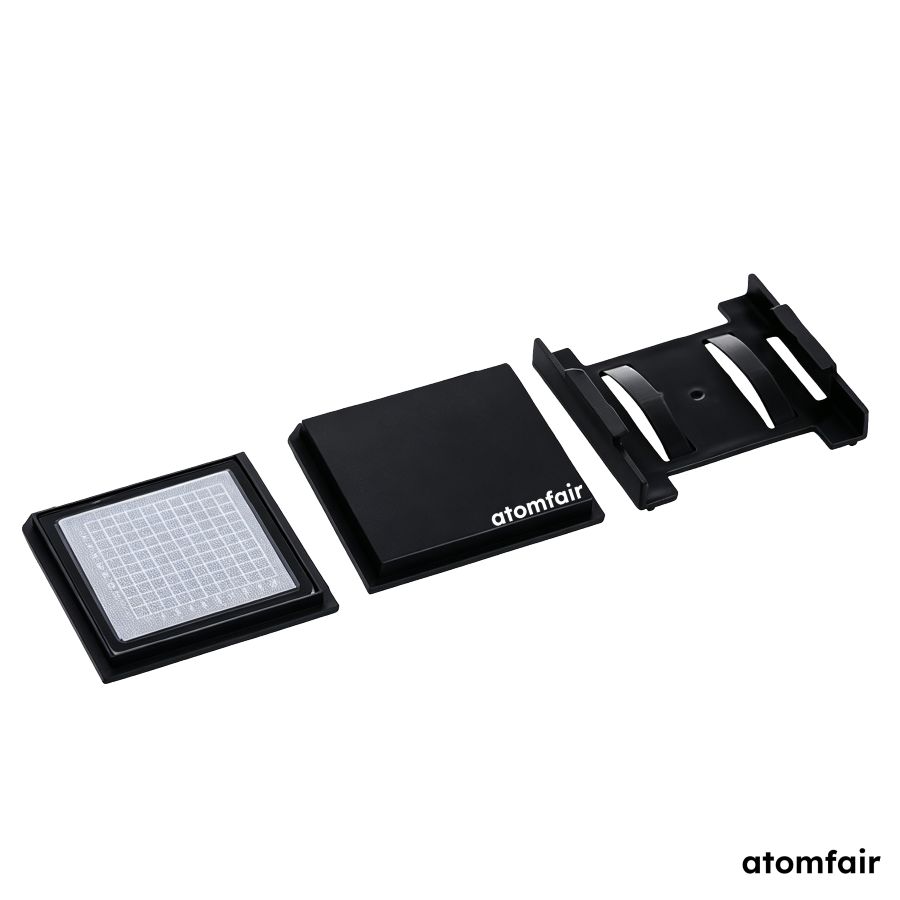

The atomfair plug-in vacuum release tray is specifically engineered for critical research environments demanding high-purity, contamination-free, and cross-contamination-proof sample containment alongside meticulous microscopic particulate regulation. This specific configuration features a precision-molded 20×20 Grid Array matrix combined with an advanced Ultra-low surface energy adhesive platform. It is custom-designed to prevent micro-shifting or structural dislodgement during rigorous transport, while simultaneously eliminating microscopic surface residue, adhesive transfer, or localized stress marks upon sample detachment. This non-destructive preservation platform is critical for advanced materials processing, quantum device fabrication, and delicate structural analysis across national frameworks and multi-disciplinary university core labs.

Technical Specifications

PARAMETER	DETAILS
1. Core Specification Profile
Grid Configuration	400 Grid (20×20 Array, 1.52×1.44 mm Compartments)
Adhesion Level	Ultra-low Adhesion
2. Material Configurations & Ordering Codes
Model: AF-VRA-400XL-CB	ESD-safe full-black lid + conductive black tray + black insert
Model: AF-VRA-400XL-CC	Conductive full-black lid + conductive black tray + black insert
Model: AF-VRA-400XL-CT	ESD-safe clear lid + conductive black tray + clear insert
3. Mesh Selection Matrix
Default Mesh Specification	White 16 Mesh
Available Mesh Densities	16 Mesh / 33 Mesh / 76 Mesh / 103 Mesh / 137 Mesh / 195 Mesh
Available Mesh Color Options	Standard White Mesh / Yellow Mesh
Ordering Remark Guide	If you need to purchase alternative mesh colors or densities, please explicitly state your specific requirements in the order remarks section during checkout.

Key Features & Advantages

Precise 20×20 Matrix Isolation: The orthogonal 400-grid configuration facilitates systematic cell-by-cell micro-mapping, clean optical screening, and efficient batch sample cataloging.
Ultra-Low Residue Surface Energy: Specially structural elastomer allows reliable anchor hold while ensuring micro-level non-destructive sample detachment, preventing thin-film peeling or device deformation.
Comprehensive ESD Protection: Integrated anti-static matrices and premium conductive polymer backings provide immediate dissipative pathways to eliminate high-voltage electrostatic field disruptions.
Vacuum & Structural Integrity: Engineered with premium chemical-resistant components to withstand continuous outgassing and multi-cycle depressurization without dimensional warping.

APPLICATION SCOPE: Highly recommended for quantum optics (qubit chips), materials science (2D films, graphene, nanomaterials), semiconductor R&D (MEMS, bare dies, compound wafers), and specialized biotechnology biosensor microfluidic arrays.

PACKAGING: Contains 5 × atomfair plug-in vacuum release tray (400 Grid / Ultra-low Adhesion), 1 × cleanroom compliance certificate, and shock-absorbent shells. Double-vacuum bag sealed under dry inert nitrogen gas atmosphere to guarantee zero contamination during transport.

IMPORTANT ORDERING NOTICE: The default baseline configuration provided is white 16 mesh. If your project mandates alternative mesh counts (33, 76, 103, 137, or 195) or a yellow mesh configuration, please explicitly state your specific color and density requirements within the order remarks field during checkout confirmation.

SYSTEM REQUIREMENT: To activate the Release Mode for sample removal, this vacuum release tray must be used in conjunction with a compatible Vacuum Station and Vacuum Pump system.

TAILORED SOLUTIONS FOR RESEARCH

Contact our engineering team for technical support or official institutional quotations.

EMAIL: inquiry@atomfair.com

Manufacturer: Atomfair LLC

Brand: ATOMFAIR^®

This tray requires a compatible vacuum station and pump system to activate the release mode for sample removal. The tray is packaged in a double-vacuum bag under inert nitrogen to prevent contamination during transport.

Vacuum System Requirement: The vacuum release tray must be used with a compatible vacuum station and pump to activate the release mode for sample removal.
