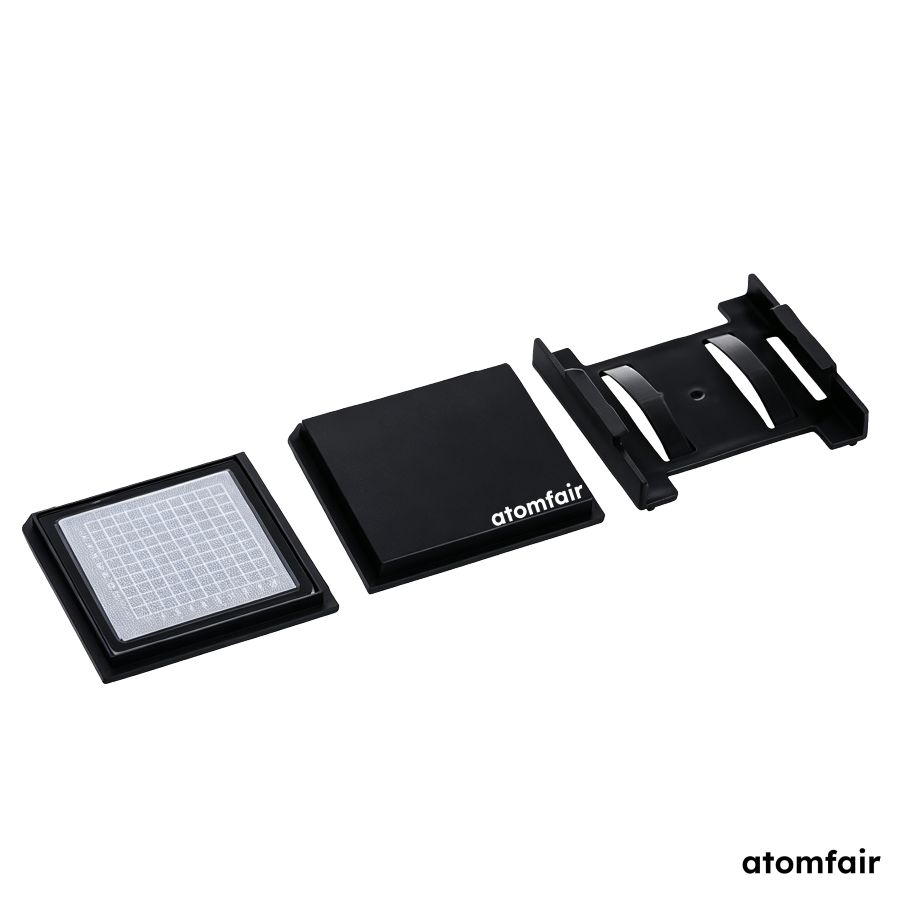

Plug-in Vacuum Release Tray 30 Grid Low Adhesion ATOMFAIR®

$75.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Research-grade plug-in vacuum release tray with 30-grid 2×15 array, low-adhesion surface, ESD-safe options, and 5-piece pack for core research labs. Order now.

Specification

Clear

PLUG-IN VACUUM RELEASE TRAY 30 GRID LOW ADHESION

RESEARCH GRADE MATERIAL

Product Overview

The atomfair plug-in vacuum release tray is specifically engineered for critical research environments demanding high-purity, contamination-free, and cross-contamination-proof sample containment alongside meticulous microscopic particulate regulation. This specific configuration features a precision-molded 2×15 Grid Array matrix combined with an advanced Low surface energy adhesive platform. It is custom-designed to prevent micro-shifting or structural dislodgement during rigorous transport, while simultaneously eliminating microscopic surface residue, adhesive transfer, or localized stress marks upon sample detachment. This non-destructive preservation platform is critical for advanced materials processing, quantum device fabrication, and delicate structural analysis across national frameworks and multi-disciplinary university core labs.

Technical Specifications

PARAMETER	DETAILS
1. Core Specification Profile
Grid Configuration	30 Grid (2×15 Array, 11.81×1.52 mm Compartments)
Adhesion Level	Low Adhesion
2. Material Configurations & Ordering Codes
Model: AF-VRA-30L-CB	ESD-safe full-black lid + conductive black tray + black insert
Model: AF-VRA-30L-CC	Conductive full-black lid + conductive black tray + black insert
Model: AF-VRA-30L-CT	ESD-safe clear lid + conductive black tray + clear insert
3. Mesh Selection Matrix
Default Mesh Specification	White 16 Mesh
Available Mesh Densities	16 Mesh / 33 Mesh / 76 Mesh / 103 Mesh / 137 Mesh / 195 Mesh
Available Mesh Color Options	Standard White Mesh / Yellow Mesh
Ordering Remark Guide	If you need to purchase alternative mesh colors or densities, please explicitly state your specific requirements in the order remarks section during checkout.

Key Features & Advantages

Precise 2×15 Matrix Isolation: The orthogonal 30-grid configuration facilitates systematic cell-by-cell micro-mapping, clean optical screening, and efficient batch sample cataloging.
Low Residue Surface Energy: Specially structural elastomer allows reliable anchor hold while ensuring micro-level non-destructive sample detachment, preventing thin-film peeling or device deformation.
Comprehensive ESD Protection: Integrated anti-static matrices and premium conductive polymer backings provide immediate dissipative pathways to eliminate high-voltage electrostatic field disruptions.
Vacuum & Structural Integrity: Engineered with premium chemical-resistant components to withstand continuous outgassing and multi-cycle depressurization without dimensional warping.

APPLICATION SCOPE: Highly recommended for quantum optics (qubit chips), materials science (2D films, graphene, nanomaterials), semiconductor R&D (MEMS, bare dies, compound wafers), and specialized biotechnology biosensor microfluidic arrays.

PACKAGING: Contains 5 × atomfair plug-in vacuum release tray (30 Grid / Low Adhesion), 1 × cleanroom compliance certificate, and shock-absorbent shells. Double-vacuum bag sealed under dry inert nitrogen gas atmosphere to guarantee zero contamination during transport.

IMPORTANT ORDERING NOTICE: The default baseline configuration provided is white 16 mesh. If your project mandates alternative mesh counts (33, 76, 103, 137, or 195) or a yellow mesh configuration, please explicitly state your specific color and density requirements within the order remarks field during checkout confirmation.

SYSTEM REQUIREMENT: To activate the Release Mode for sample removal, this vacuum release tray must be used in conjunction with a compatible Vacuum Station and Vacuum Pump system.

TAILORED SOLUTIONS FOR RESEARCH

Contact our engineering team for technical support or official institutional quotations.

EMAIL: inquiry@atomfair.com

Manufacturer: Atomfair LLC

Brand: ATOMFAIR^®

This vacuum release tray requires connection to a compatible vacuum station and pump to enable controlled sample release. The tray is engineered to withstand repeated vacuum cycles without dimensional warping, but must be paired with compatible equipment to avoid damage.

System Requirement: The vacuum release tray must be used with a compatible vacuum station and vacuum pump to activate the release mode for sample removal.
Vacuum Cycle Durability: The tray is engineered with chemical-resistant components to withstand continuous outgassing and multi-cycle depressurization without dimensional warping.

FAQ

How does the low adhesion platform balance sample retention during transport with non-destructive release?

The low adhesion platform uses a specially structural elastomer that provides a reliable anchor hold to prevent micro-shifting or dislodgement during rigorous transport, while simultaneously enabling micro-level non-destructive sample detachment without leaving microscopic surface residue, adhesive transfer, or stress marks. This design ensures both secure transport and preservation of delicate samples such as thin films or quantum devices.

What external equipment is required to operate the atomfair 30 grid vacuum release tray?

To activate the Release Mode for sample removal, this vacuum release tray must be used in conjunction with a compatible Vacuum Station and Vacuum Pump system, as specified in the system requirement notice. Without these components, the vacuum release function cannot be utilized.

How is the atomfair plug-in vacuum release tray packaged to ensure contamination-free delivery for critical research applications?

The tray is double-vacuum bag sealed under a dry inert nitrogen gas atmosphere, and packaged with shock-absorbent shells and a cleanroom compliance certificate. This packaging guarantees zero contamination during transport, making it suitable for cleanroom environments and sensitive sample handling.

Assessment

The Atomfair 30-Grid Low Adhesion Vacuum Release Tray provides a precision-molded 2×15 array with a low-surface-energy adhesive for secure yet non-destructive sample retention, and is available in ESD-safe or conductive configurations. Its release mechanism requires an external vacuum station and pump, and mesh density/color must be specified at order for non-default options.

Positive

Low Residue Surface Energy: Specially structured elastomer provides reliable sample hold while enabling micro-level non-destructive detachment, preventing thin-film peeling or device deformation.
Comprehensive ESD Protection: Integrated anti-static matrices and conductive polymer backings supply immediate dissipative pathways to eliminate high-voltage electrostatic field disruptions during handling and transport.

Trade-offs

Requires External Vacuum System: To activate the release mode for sample removal, this tray must be used with a compatible vacuum station and vacuum pump, adding infrastructure cost and lab space requirements.
Mesh Customization Requires Advance Ordering: The default white 16-mesh configuration is supplied unless alternative mesh densities (33, 76, 103, 137, 195) or yellow mesh are explicitly stated in order remarks, potentially delaying procurement if not specified.
