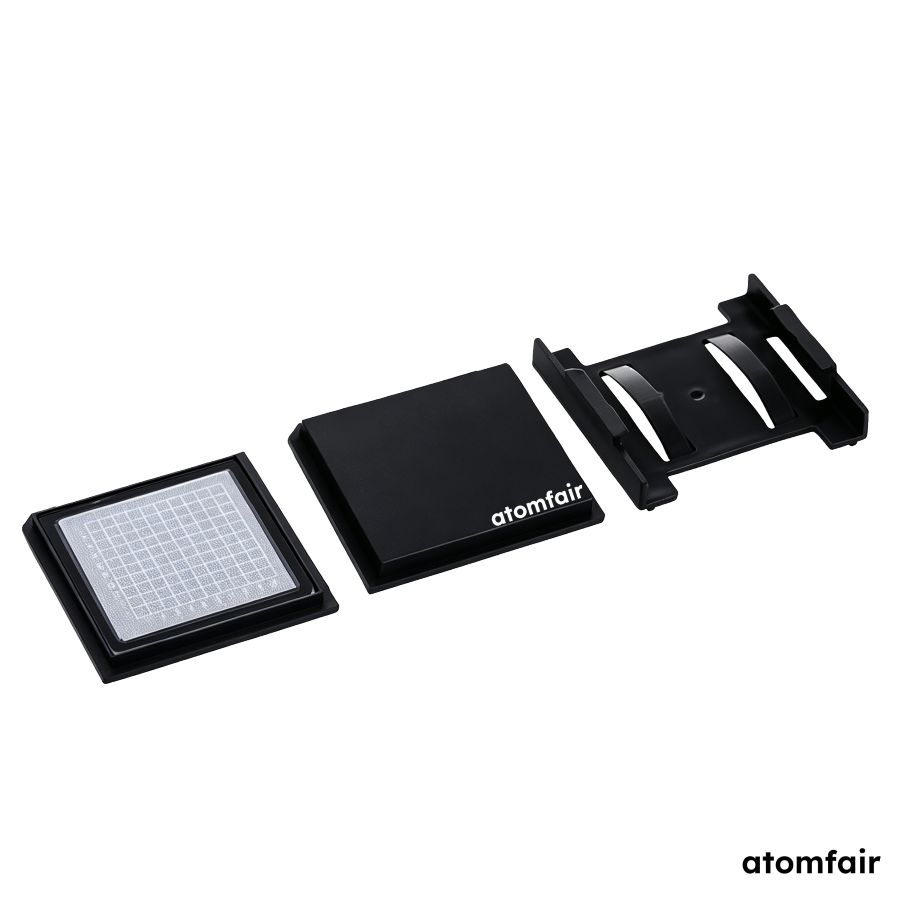

PLUG-IN VACUUM RELEASE TRAY 30 GRID HIGH ADHESION,5pcsRESEARCH GRADE MATERIAL
|
|||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
|||||||||||||||||||||||||||||||||
This vacuum release tray requires a compatible vacuum station and pump system for sample release. The tray is packaged under inert nitrogen atmosphere to prevent contamination and must be stored in a clean, dry environment.
- Vacuum System Requirement: The tray must be used with a compatible vacuum station and pump to activate the release mode for sample removal.
- Packaging and Storage: Double-vacuum bag sealed under dry inert nitrogen gas guarantees zero contamination during transport and requires storage in a controlled environment.
- ESD Handling: Integrated anti-static matrices and conductive polymer backings require proper grounding to eliminate electrostatic field disruptions.
- Mesh Customization: Alternative mesh densities or colors must be explicitly specified in the order remarks at checkout.
- High Adhesion Surface: The high surface energy adhesive platform prevents micro-shifting but requires careful detachment to avoid residue or stress marks.
How does the choice of mesh density (16 vs 33 vs 195 mesh) affect the vacuum release performance and sample retention of the Atomfair 30-grid high adhesion tray?
The default white 16 mesh offers a standard balance of structural support and vacuum permeability for most samples. Higher mesh densities such as 33, 76, 103, 137, or 195 provide finer grid openings, which can better support micro-sized samples but may reduce vacuum flow, potentially requiring longer release times or stronger vacuum. The product description does not provide specific quantitative performance differences, so empirical testing is recommended for critical applications.
What vacuum station and pump are required to operate the Atomfair 30-grid vacuum release tray, and are there any compatibility constraints with existing lab vacuum systems?
The tray requires a compatible vacuum station and vacuum pump to activate the release mode for sample removal. The product description explicitly recommends the Atomfair Laboratory Precision Vacuum Release Station and Laboratory Precision Vacuum Pump for this purpose. Specific compatibility with other systems is not detailed, so users should verify vacuum port dimensions and pressure requirements with the manufacturer.
What are the storage and handling requirements to maintain the contamination-free and ESD-safe properties of the Atomfair vacuum release tray?
The trays are shipped double-vacuum bag sealed under dry inert nitrogen to guarantee zero contamination during transport. For continued protection, they should be stored in a clean, dry environment with ESD-safe handling practices. The integrated anti-static matrices and conductive polymer backings provide immediate dissipative pathways, but physical damage to the tray or exposure to contaminants may compromise performance. The product includes a cleanroom compliance certificate and shock-absorbent shells for storage.
The 30-grid high-adhesion vacuum release tray enables non-destructive sample handling for quantum, semiconductor, and 2D materials research, but requires dedicated vacuum system support and careful mesh selection to match sample characteristics.
Positive
- Non-destructive sample detachment: High surface energy adhesive holds samples securely during transport but allows micro-level release without residue, thin-film peeling, or stress marks.
- Integrated ESD protection: Anti-static matrices and conductive polymer backings provide immediate dissipative pathways to eliminate electrostatic field disruptions in sensitive research environments.
Trade-offs
- Requires external vacuum infrastructure: Release mode activation requires a compatible vacuum station and vacuum pump, adding equipment dependency and system integration cost.
- Default mesh may not fit all samples: Standard white 16 mesh is supplied; alternative densities (33-195) or yellow mesh must be explicitly ordered, requiring upfront specification planning.
