Plug-In Vacuum Release Tray 100-Grid Medium ATOMFAIR®

Plug-In Vacuum Release Tray 100-Grid Medium ATOMFAIR®

$75.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Research-grade plug-in vacuum release tray with 100-grid 10×10 array, medium adhesion, 3×3 mm compartments, conductive tray options. Order now.

SKU: AF-EI-A-PVRT-100M-CB00-PARENT
Category:
Brands:

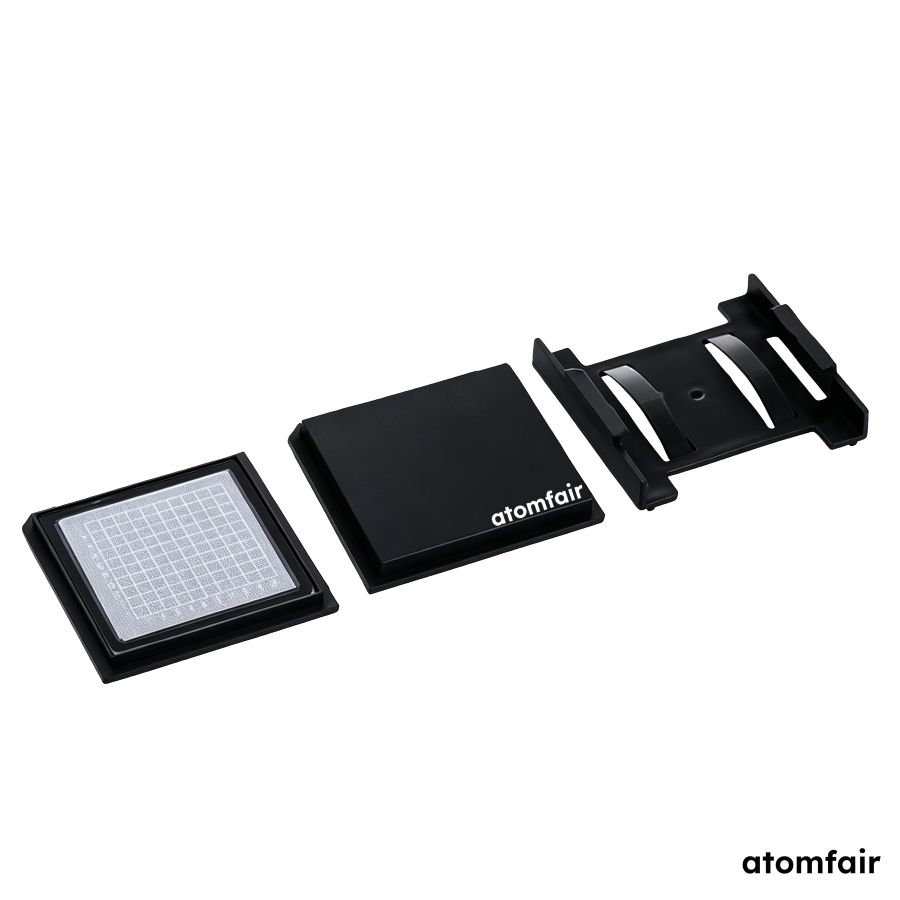

PLUG-IN VACUUM RELEASE TRAY 100 GRID MEDIUM ADHESION,5pcs

RESEARCH GRADE MATERIAL

Product Overview
The atomfair plug-in vacuum release tray is specifically engineered for critical research environments demanding high-purity, contamination-free, and cross-contamination-proof sample containment alongside meticulous microscopic particulate regulation. This specific configuration features a precision-molded 10×10 Grid Array matrix combined with an advanced Medium surface energy adhesive platform. It is custom-designed to prevent micro-shifting or structural dislodgement during rigorous transport, while simultaneously eliminating microscopic surface residue, adhesive transfer, or localized stress marks upon sample detachment. This non-destructive preservation platform is critical for advanced materials processing, quantum device fabrication, and delicate structural analysis across national frameworks and multi-disciplinary university core labs.

Technical Specifications

PARAMETER DETAILS
1. Core Specification Profile
Grid Configuration 100 Grid (10×10 Array, 3×3 mm Compartments)
Adhesion Level Medium Adhesion
2. Material Configurations & Ordering Codes
Model: AF-VRA-100M-CB ESD-safe full-black lid + conductive black tray + black insert
Model: AF-VRA-100M-CC Conductive full-black lid + conductive black tray + black insert
Model: AF-VRA-100M-CT ESD-safe clear lid + conductive black tray + clear insert
3. Mesh Selection Matrix
Default Mesh Specification White 16 Mesh
Available Mesh Densities 16 Mesh / 33 Mesh / 76 Mesh / 103 Mesh / 137 Mesh / 195 Mesh
Available Mesh Color Options Standard White Mesh / Yellow Mesh
Ordering Remark Guide If you need to purchase alternative mesh colors or densities, please explicitly state your specific requirements in the order remarks section during checkout.

Key Features & Advantages
  • Precise 10×10 Matrix Isolation: The orthogonal 100-grid configuration facilitates systematic cell-by-cell micro-mapping, clean optical screening, and efficient batch sample cataloging.
  • Medium Residue Surface Energy: Specially structural elastomer allows reliable anchor hold while ensuring micro-level non-destructive sample detachment, preventing thin-film peeling or device deformation.
  • Comprehensive ESD Protection: Integrated anti-static matrices and premium conductive polymer backings provide immediate dissipative pathways to eliminate high-voltage electrostatic field disruptions.
  • Vacuum & Structural Integrity: Engineered with premium chemical-resistant components to withstand continuous outgassing and multi-cycle depressurization without dimensional warping.

APPLICATION SCOPE: Highly recommended for quantum optics (qubit chips), materials science (2D films, graphene, nanomaterials), semiconductor R&D (MEMS, bare dies, compound wafers), and specialized biotechnology biosensor microfluidic arrays.
PACKAGING: Contains 5 × atomfair plug-in vacuum release tray (100 Grid / Medium Adhesion), 1 × cleanroom compliance certificate, and shock-absorbent shells. Double-vacuum bag sealed under dry inert nitrogen gas atmosphere to guarantee zero contamination during transport.
IMPORTANT ORDERING NOTICE: The default baseline configuration provided is white 16 mesh. If your project mandates alternative mesh counts (33, 76, 103, 137, or 195) or a yellow mesh configuration, please explicitly state your specific color and density requirements within the order remarks field during checkout confirmation.
SYSTEM REQUIREMENT: To activate the Release Mode for sample removal, this vacuum release tray must be used in conjunction with a compatible Vacuum Station and Vacuum Pump system.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

This vacuum release tray requires connection to a compatible vacuum station and pump for sample release operation. Store the tray in its sealed inert-gas packaging until use to maintain its contamination-free integrity.

  • Vacuum System Dependency: Activating the release mode for sample removal necessitates a compatible vacuum station and vacuum pump system.
  • Storage Atmosphere: Maintain the tray in its double-vacuum sealed bag under dry inert nitrogen gas until opened to prevent contamination.
  • Adhesion Level Specificity: Use only the specified medium adhesion level to ensure non-destructive sample detachment and prevent adhesive residue or stress marks.

Why does the atomfair 100-grid vacuum release tray use medium adhesion instead of a high-tack adhesive for semiconductor sample handling?

The medium adhesion level is a deliberate performance trade-off that balances reliable sample anchoring during transport with non-destructive detachment. According to the product description, the specially structured elastomer provides a reliable hold to prevent micro-shifting or structural dislodgement, yet eliminates microscopic surface residue, adhesive transfer, or localized stress marks upon sample removal, making it ideal for thin-film devices and quantum chip handling.

What additional equipment is required to release samples from the atomfair vacuum release tray, and are there ordering constraints for custom mesh configurations?

The tray requires a compatible Vacuum Station and Vacuum Pump system to activate the Release Mode for sample removal, as stated in the system requirement notice. Additionally, while the default mesh is white 16 mesh, alternative densities (33, 76, 103, 137, or 195) and yellow mesh are available but must be explicitly specified in the order remarks during checkout because the product does not come with those configurations by default.

How should the atomfair vacuum release tray be stored to preserve its cleanroom-grade quality and static protection?

The tray is double-vacuum bag sealed under a dry inert nitrogen atmosphere to guarantee zero contamination during transport, as per the packaging details. For ongoing storage, it should be kept in a cleanroom environment away from particulates and moisture. The ESD-safe and conductive configurations also require avoidance of physical damage to the anti-static matrices and conductive polymer backings to maintain dissipative pathways.

This 100-grid, medium-adhesion plug-in vacuum release tray provides precise 10×10 matrix isolation for systematic sample mapping and non-destructive detachment, but requires an external vacuum station and pump system for operation and its default mesh configuration may need to be customized via order remarks.

Positive

  • Precise 10×10 grid isolation: The orthogonal 100-grid configuration enables systematic cell-by-cell micro-mapping, clean optical screening, and efficient batch sample cataloging.
  • Medium adhesion for non-destructive release: The specially structured elastomer provides reliable anchor hold while ensuring micro-level non-destructive sample detachment, preventing thin-film peeling or device deformation.

Trade-offs

  • Requires external vacuum station and pump: To activate the release mode for sample removal, this tray must be used in conjunction with a compatible vacuum station and vacuum pump system, adding infrastructure dependency.
  • Default mesh may not suit all applications: The baseline configuration ships with white 16 mesh; alternative mesh densities or colors must be explicitly stated in order remarks, requiring proactive specification by the buyer.
