PLUG-IN VACUUM RELEASE TRAY 100 GRID HIGH ADHESION,5pcsRESEARCH GRADE MATERIAL
|
|||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
|||||||||||||||||||||||||||||||||
This vacuum release tray requires a compatible vacuum station and pump to safely detach samples without residue. The tray must be stored in its sealed nitrogen packaging to prevent contamination before use.
- Sample Release Requirement: The tray's high-adhesion platform necessitates a vacuum release system to avoid mechanical peeling or residue transfer.
- Storage Condition: The tray is packaged under dry inert nitrogen and must remain sealed until use to maintain zero contamination integrity.
- ESD Precaution: The conductive backing provides electrostatic discharge protection, but the vacuum station must be grounded to prevent charge accumulation.
- Chemical Compatibility: The tray components are chemical-resistant to withstand outgassing in vacuum chambers without dimensional warping.
- Manual Detachment Warning: Samples must be detached using the vacuum release system, not by mechanical force, to avoid residue or damage.
This procedure describes sample containment on the adhesive grid and non-destructive detachment using the vacuum release system. The tray requires a compatible vacuum station and pump for the release mode.
Required Equipment: Vacuum Station, Vacuum Pump
- Unseal the tray
Unseal the double-vacuum bag in a cleanroom environment to expose the tray. - Place tray in station
Place the tray into the compatible vacuum station, ensuring proper alignment. - Position samples
Position samples into the grid compartments of the tray. - Activate release mode
Connect the vacuum pump to the station and activate the release mode to detach samples after processing.
How does the high adhesion platform prevent sample damage during vacuum release compared to standard adhesive trays?
The atomfair plug-in vacuum release tray uses a specially engineered structural elastomer with high surface energy that provides reliable anchor hold during transport while enabling micro-level non-destructive sample detachment. This design prevents thin-film peeling, device deformation, microscopic surface residue, and adhesive transfer upon release, as specified in the product description.
What external infrastructure is required to activate the release mechanism of the AF-VRA-100H series vacuum release trays?
To activate Release Mode for sample removal, the vacuum release tray must be used in conjunction with a compatible Vacuum Station and a Vacuum Pump system, both sold separately. Without these components, the tray functions as a standard high-adhesion carrier and cannot release samples via vacuum.
What are the packaging and contamination control measures used for these vacuum release trays to ensure cleanroom readiness?
Each pack of 5 trays is double-vacuum bag sealed under a dry inert nitrogen gas atmosphere to guarantee zero contamination during transport. The packaging includes a cleanroom compliance certificate and shock-absorbent shells. Additionally, the conductive tray options provide integrated ESD protection with dissipative pathways to eliminate electrostatic field disruptions.

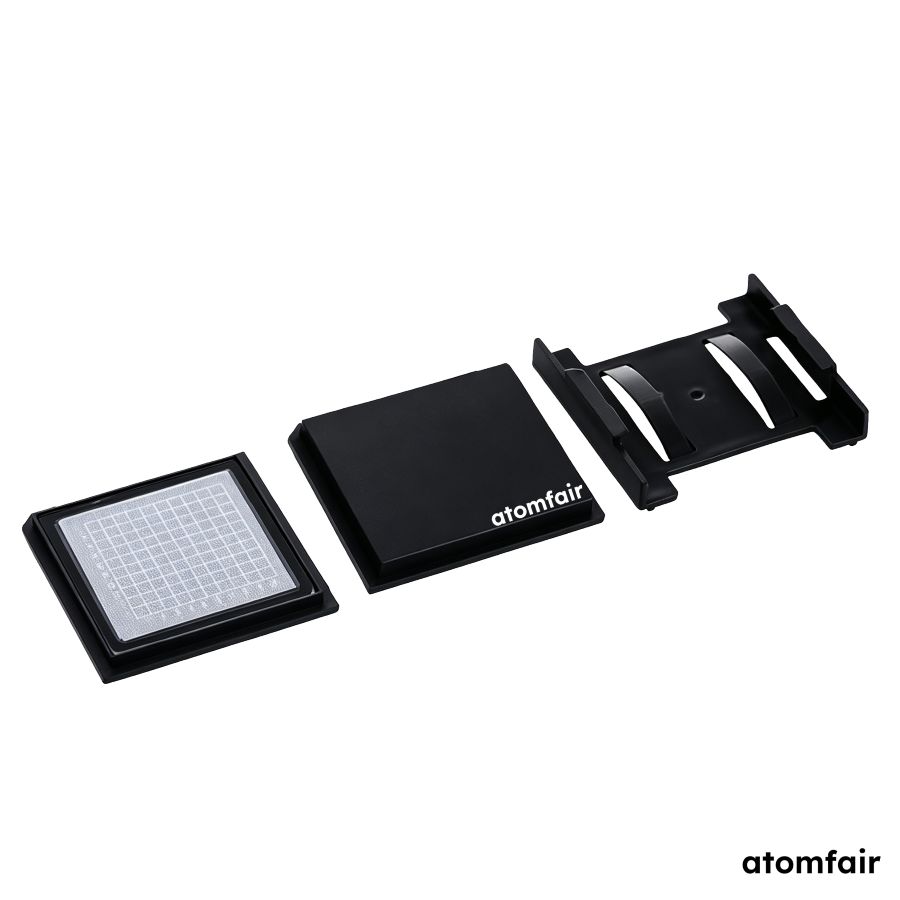

This plug-in vacuum release tray features a 10×10 grid array (3×3 mm compartments) with high-adhesion surface energy for non-destructive sample retention, integrated ESD protection, and requires a compatible vacuum station and pump for release activation, making it suitable for semiconductor, quantum, and thin-film applications.
Positive
- Precise 10×10 Grid Isolation: The orthogonal 100-grid configuration with 3×3 mm compartments enables systematic cell-by-cell micro-mapping, clean optical screening, and efficient batch sample cataloging.
- Non-Destructive High Adhesion: The specially structural elastomer provides reliable anchor hold while ensuring micro-level non-destructive sample detachment, preventing thin-film peeling or device deformation.
Trade-offs
- Requires External Vacuum System: To activate release mode, the tray must be used with a compatible vacuum station and vacuum pump, adding infrastructure dependency and setup complexity.
- Mesh Configuration Must Be Specified: The default white 16 mesh may not suit all applications; alternative mesh densities (33, 76, 103, 137, 195) and colors (yellow) must be explicitly stated in order remarks, requiring advance planning.
Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.
To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.
Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD excl. heavy equipment). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
