FREE SHIPPING with $59 or More. New Customer? Inquire for Major Discount & Free Samples! Online Payments & POs Accepted.

A rectangular ATOMFAIR® P2-type NMTO sodium nickel manganese oxide cathode sheet with silver metal borders.

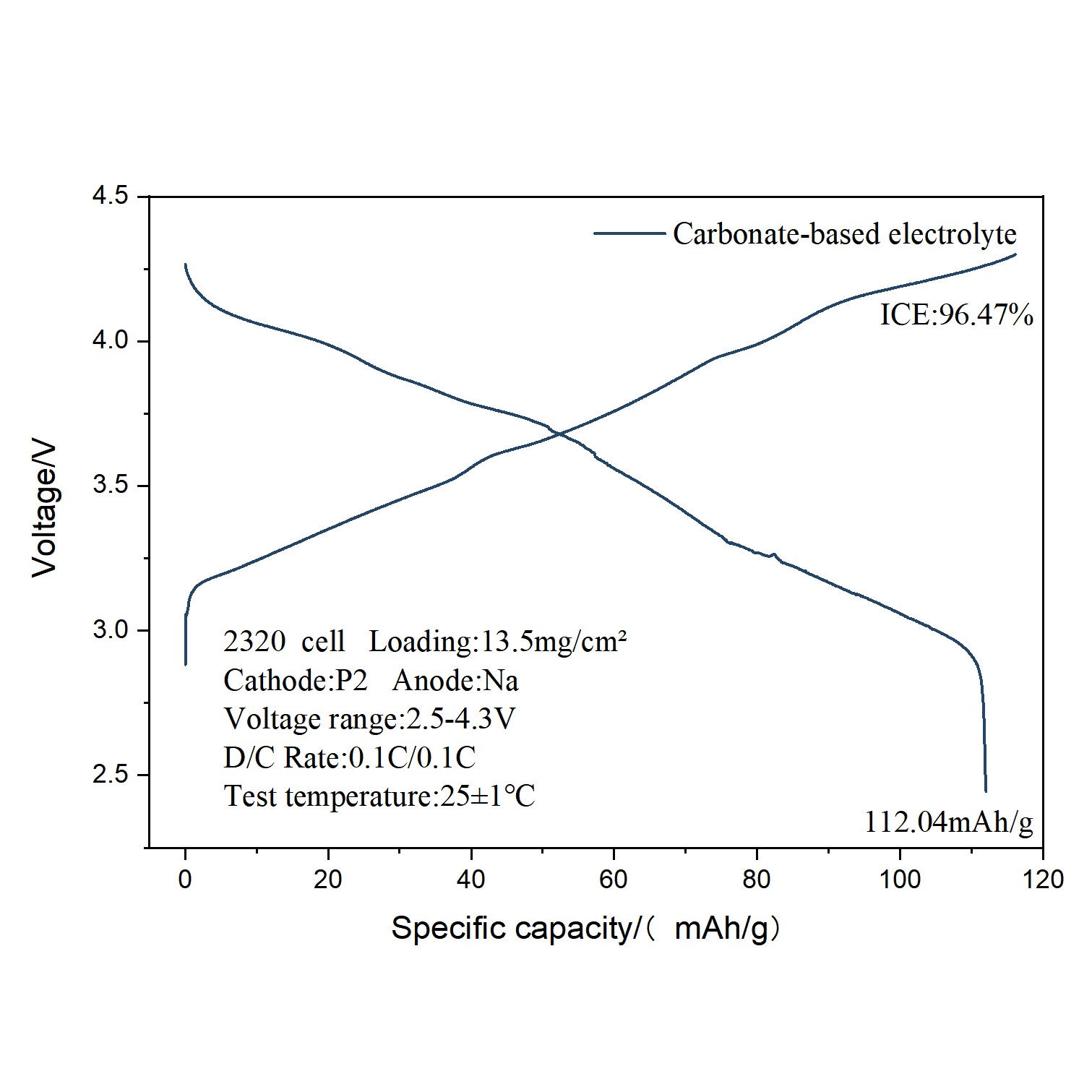

P2-Type NMTO Single-Sided Cathode 13.5 mg/cm² ATOMFAIR® - Image 2

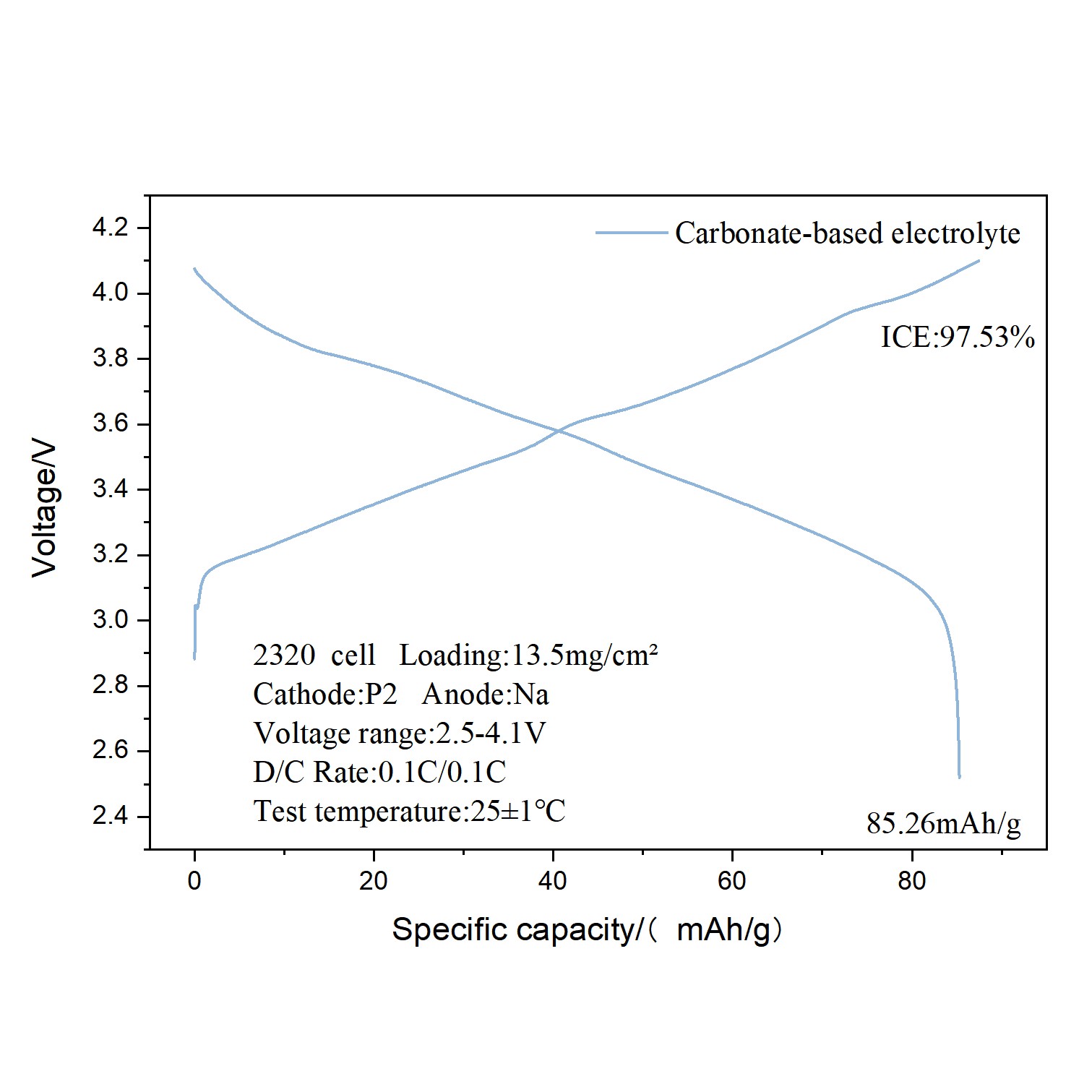

P2-Type NMTO Single-Sided Cathode 13.5 mg/cm² ATOMFAIR® - Image 3

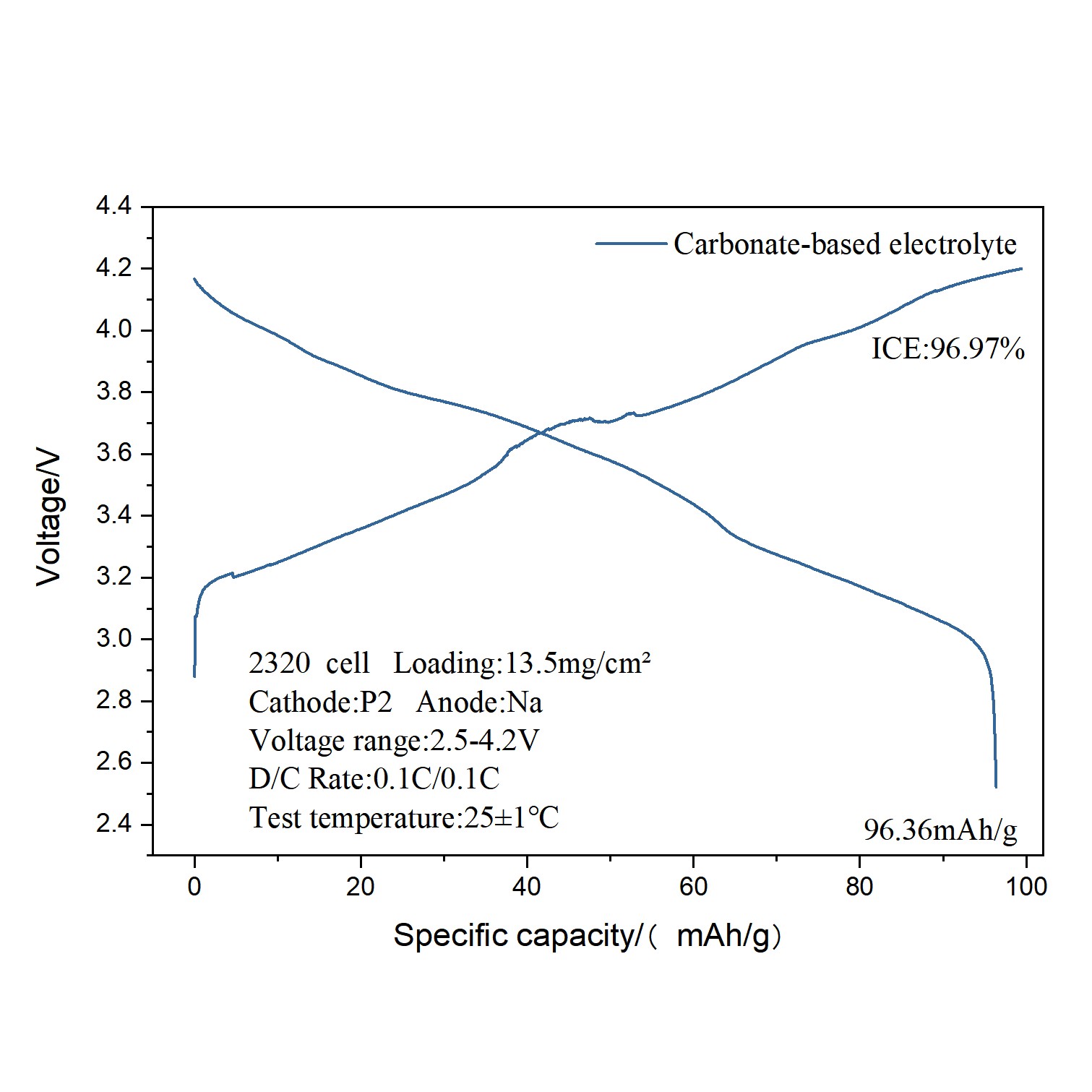

P2-Type NMTO Single-Sided Cathode 13.5 mg/cm² ATOMFAIR® - Image 4

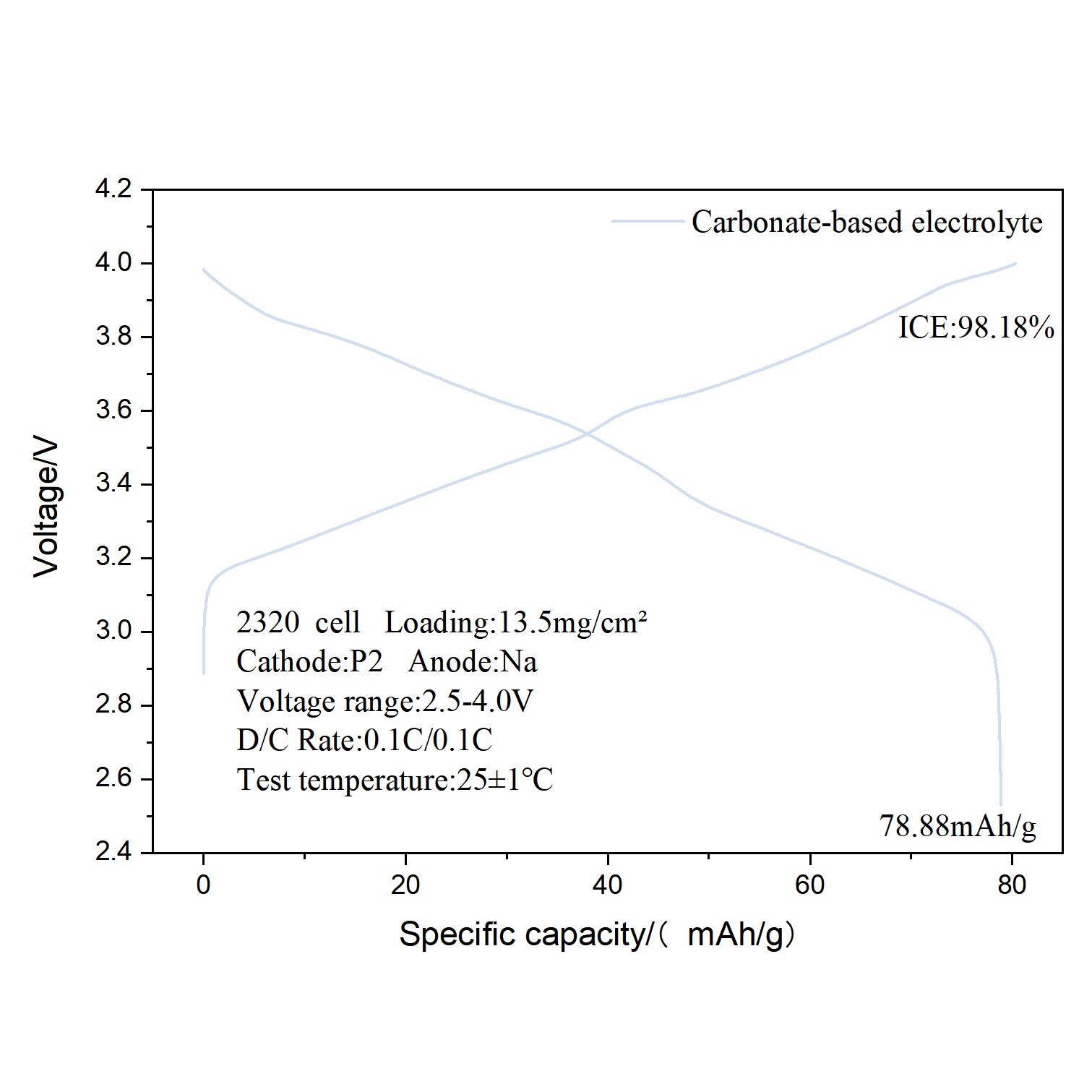

P2-Type NMTO Single-Sided Cathode 13.5 mg/cm² ATOMFAIR® - Image 5
P2-Type NMTO Single-Sided Cathode 13.5 mg/cm² ATOMFAIR® - Image 6
P2-Type NMTO Single-Sided Cathode 13.5 mg/cm² ATOMFAIR® - Image 7
P2-Type NMTO Single-Sided Cathode 13.5 mg/cm² ATOMFAIR® - Image 8

P2-Type NMTO Single-Sided Cathode 13.5 mg/cm² ATOMFAIR®

$89.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Research grade P2-Type NMTO single-sided cathode with 13.5 mg/cm² coating density and 93.5% active material ratio for sodium-ion battery R&D. In stock.

Quantity Price
1 – 4 $89.00
5+ $79.00
SKU: AF-BM-S-CNMTO-AS135-5P
Category:
Tags: , , ,
Brands:

Description

ATOMFAIR® S01-NMTO (P2-TYPE) SODIUM NICKEL MANGANESE OXIDE ELECTRODE SHEET

RESEARCH GRADE MATERIAL

Product Overview
The Atomfair S01-NMTO is a specialized P2-Type Sodium Nickel Manganese Oxide electrode sheet, precision single-side coated with 13.5 mg/cm² via a wet process. Optimized for sodium-ion battery R&D, this electrode provides the structural stability and electrochemical reliability required for advanced material evaluation and high-precision laboratory analysis, ensuring cell-to-cell consistency, baseline testing control, variable elimination, and electrolyte validation platform benefits while nesting target sodium nickel manganese oxide electrode sheet price structures to optimize laboratory validation integrity.

Technical Specifications

PARAMETER DETAILS
1. Core Device & Electrochemical Design
Product Code S01
Specific Capacity 115 mAh/g
Coating Process Wet Process
2. Cathode Parameters
Coating Material NMTO (P2-Type Sodium Nickel Manganese Oxide)
Active Material Ratio 93.50%
Coating Density 13.5 mg/cm2
Coating Area 152 × 100 mm
Coating Type Single-sided
Compaction Density 2.08 g/cm3
3. Substrate & Foil Parameters
Substrate Material Carbon-coated aluminum foil matrix crystals
Current Collector Density 3.63 mg/cm2
Substrate Thickness 12 + 0.5 + 0.5 μm
Substrate Size 186 × 100 mm
4. Compliance & Support
Manufacturing Rules Processed under strict ISO 9001 compliance conditions
Alternative Options Explore our related catalog or custom dimensions. For urgent technical custom requests or bulk inquiries, please contact our support team.

Key Features & Advantages
  • Homogeneous Material Purity: Advanced P2-Type structure and specially engineered NMTO formulation with a 93.50% active material ratio ensure superior sodium-ion intercalation performance and half-cell foils testing control.
  • Enhanced Operational Efficiency: Built on carbon-coated aluminum foil current collectors to optimize interface stability, secure electrical contact, and improve long-term cycle life.
  • Optimized Sintering/Microstructure: Precision wet coating technology guarantees exceptionally uniform mass loading and thickness across the 152 × 100 mm active area for reproducible experimental parameters.
  • Tailored Solutions: Fully customizable specifications available for coating density, active dimensions, width, and foil profiles to fulfill unique project requirements.

APPLICATION SCOPE: Sodium-ion battery Research & Development, laboratory benchmarking, material evaluation, and electrochemical characterization testing.
PACKAGING: 5 electrode sheets per pack, vacuum-sealed to maintain consistent baseline lab quality and prevent phase contamination.
IMPORTANT NOTICE: This product is sold exclusively for laboratory research. Recommended baking protocol: Maintain strictly for 12 hours under vacuum at 100°C to eliminate residual moisture or degradation before thermal validation.

TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: ATOMFAIR LLC
Brand: ATOMFAIR®

This electrode sheet is moisture-sensitive and must be stored in an inert, dry atmosphere to prevent material degradation. Electrolyte compatibility must be verified prior to assembly to avoid adverse chemical reactions.

  • Moisture Sensitivity: The NMTO coating can degrade upon exposure to ambient humidity, necessitating handling and storage in a glovebox with moisture levels below 1 ppm.
  • Electrolyte Compatibility: Only anhydrous, sodium-ion-compatible electrolytes should be used to avoid decomposition or contamination of the electrode coating.

How does the 13.5 mg/cm² areal loading of the P2 NMTO cathode affect its specific capacity and compaction density?

The P2 NMTO electrode achieves a specific capacity of 115 mAh/g and a compaction density of 2.08 g/cm³ at the specified areal loading of 13.5 mg/cm². This high loading maximizes energy density while the P2-type structure ensures stable sodium-ion intercalation for laboratory-grade R&D evaluation.

Can this single-sided P2 NMTO electrode be used directly in standard sodium-ion coin cell assemblies without additional processing?

No, the electrode requires a mandatory vacuum baking protocol at 100°C for 12 hours prior to use, as stated in the product notice. After this pre-treatment, the single-side coated sheets on carbon-coated aluminum foil are fully compatible with coin cell or pouch cell configurations for sodium-ion battery research.

What infrastructure is required for storing and pre-conditioning the P2 NMTO electrode sheets before electrochemical testing?

The 5-pack sheets are vacuum-sealed and should be stored in a dry, inert atmosphere to prevent moisture exposure. Pre-conditioning requires a vacuum oven capable of maintaining 100°C for 12 hours, as per the recommended baking protocol, to remove residual moisture and ensure consistent electrochemical performance.

The Atomfair S01-NMTO single-sided cathode offers a high-loading (13.5 mg/cm²) P2-type NMTO on carbon-coated aluminum foil with 93.5% active material and 115 mAh/g specific capacity, ideal for sodium-ion battery R&D. Operational constraints include mandatory vacuum baking and single-sided cell architecture.

Positive

  • P2-type structure for Na-ion intercalation: The engineered NMTO formulation with P2-type crystal structure is specifically designed for superior sodium-ion intercalation performance, enabling high-rate capability and structural stability.
  • Carbon-coated foil interface stability: The carbon-coated aluminum substrate ensures optimal electrical contact between the active material and current collector, reducing interfacial resistance and improving cycle life.

Trade-offs

  • Mandatory vacuum baking protocol: A standard baking protocol of 12 hours under vacuum at 100°C is required before use to remove adsorbed moisture and ensure electrochemical stability.
  • Single-sided coating cell limitation: This electrode is single-sided coated, restricting its application to half-cell or single-layer pouch cell configurations; not suitable for full-cell formats requiring double-sided coating.

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).

Related products
